A/T - Modifications

Group: TRANSAXLE

Number: 99-40-013

Date: OCTOBER, 1999

Model: 1999 ELANTRA & 1999 TIBURON

Subject: 1999 ELANTRA & 1999 TIBURON AUTOMATIC TRANSAXLE MODIFICATIONS

DESCRIPTION:

The 1999 Elantra and 1999 Tiburon automatic transaxies have been modified as follows:

- Two additional solenoids were added to improve shift quality

- The TCMs were modified to match the solenoid change

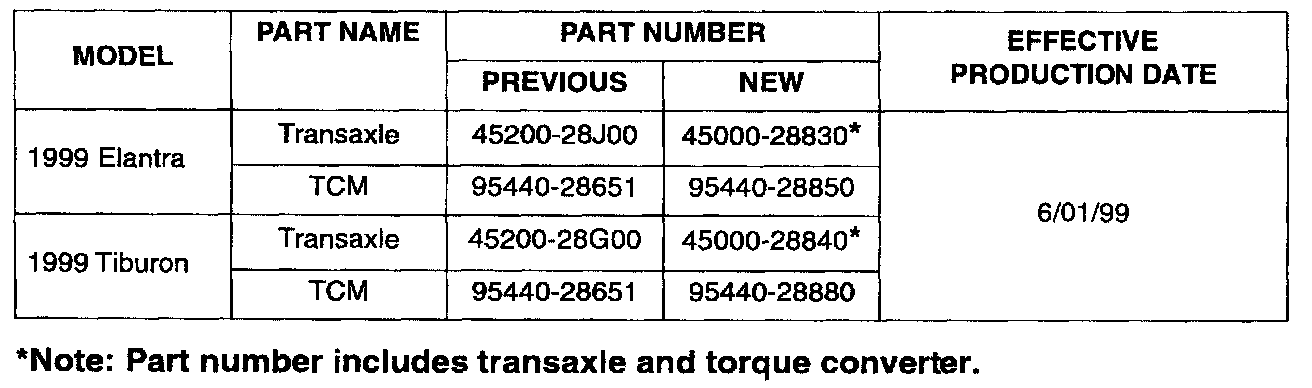

PARTS INFORMATION

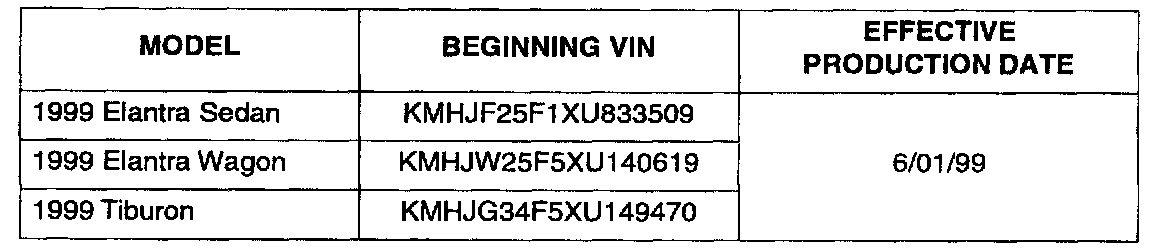

BEGINNING VINS:





INTERCHANGEABILITY: NO
