Cylinder Block Specifications

SERVICE SPECIFICATIONS
Cylinder Block Warpage (Cylinder Head Face):
Standard 0.05 mm (0.0020 inch) Or Less
Limit 0.1 mm (0.0039 inch)
Cylinder Bore:
Inside Diameter 75.5 mm (2.972 inch)
Inside Diameter Taper 0.02 mm (0.0008 inch) Or Less
Piston To:
Cylinder Wall Clearance 0.025 - 0.045 mm (0.0008 - 0.0016 inch)

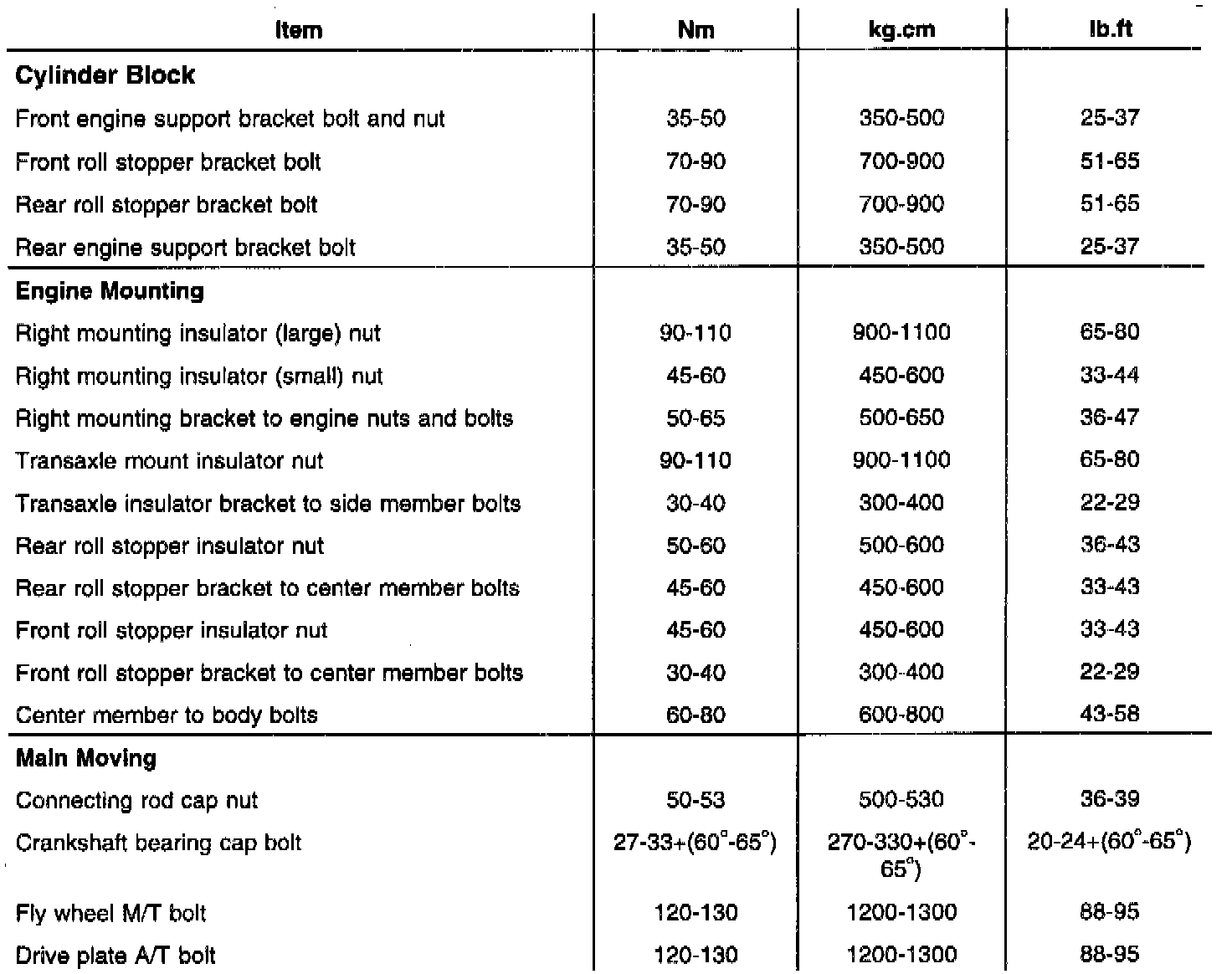

TORQUE SPECIFICATIONS





Part 1 of 4

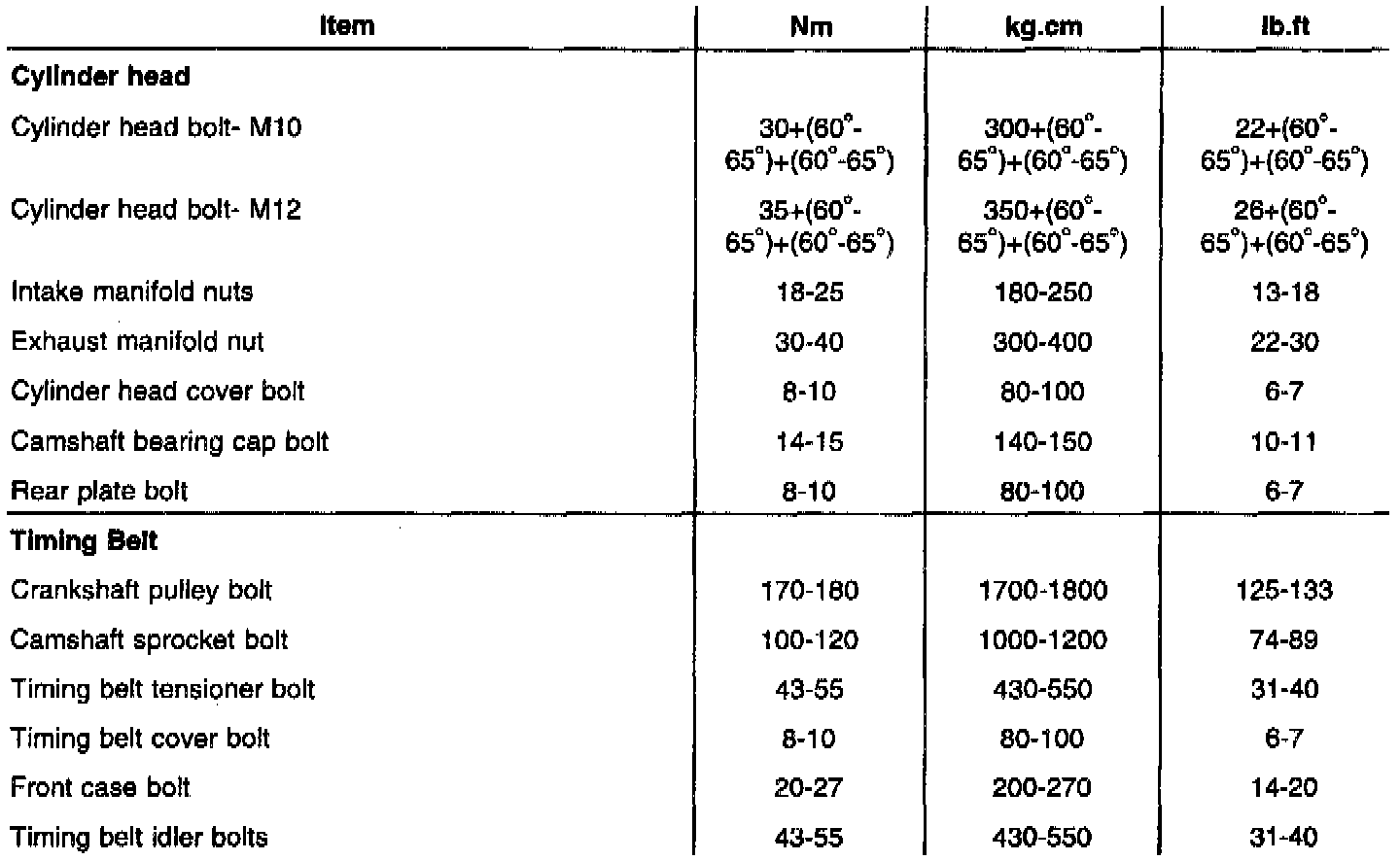

Part 2 of 4

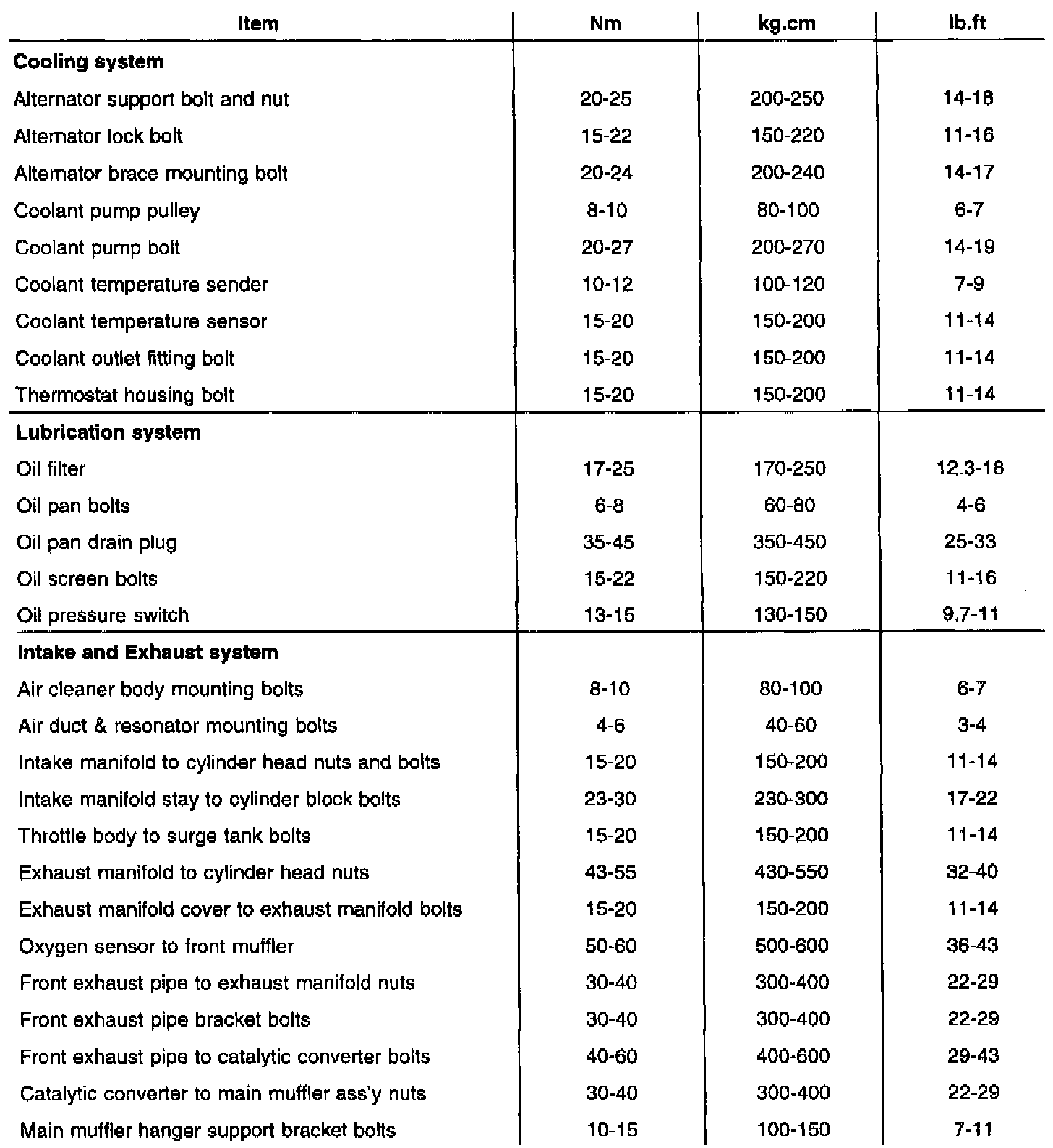

Part 3 of 4





Part 4 of 4
