Tightening Torque Specifications

TIGHTENING TORQUE SPECIFICATIONS





Part 1 of 2





Part 2 of 2





HEAD BOLT TIGHTENING SEQUENCE

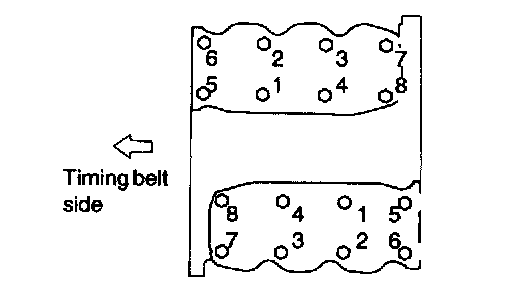

CAMSHAFT BERAING CAP TIGHTENING SEQUENCE
Tighten the bearing caps to the specified torque in two or three steps as shown.
Tightening Torque
Bearing cap bolt: 10 - 12 Nm (140 - 150 kgf-cm, 10 - 11 ft. lbs.)
