Cruise Control: Service and Repair

1. Remove the battery negative terminal.
2. Disconnect the accelerator cable and cruise control cable from throttle assembly by turning throttle lever to full open position.




3. Disconnect the accelerator cable from accelerator pedal connection.
4. Remove the accelerator cable mounting bolts.

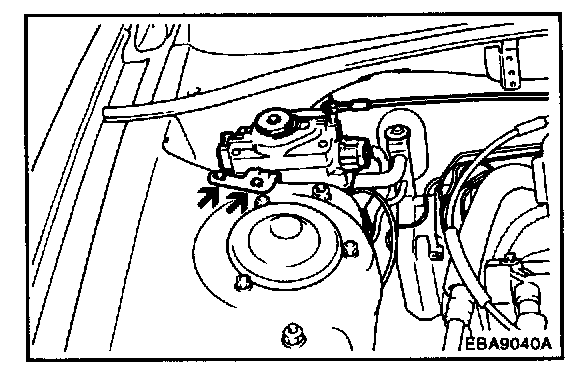

5. Remove the actuator & unit assembly mounting bolt.
6. Installation is the reverse order of removal.
