System Diagram

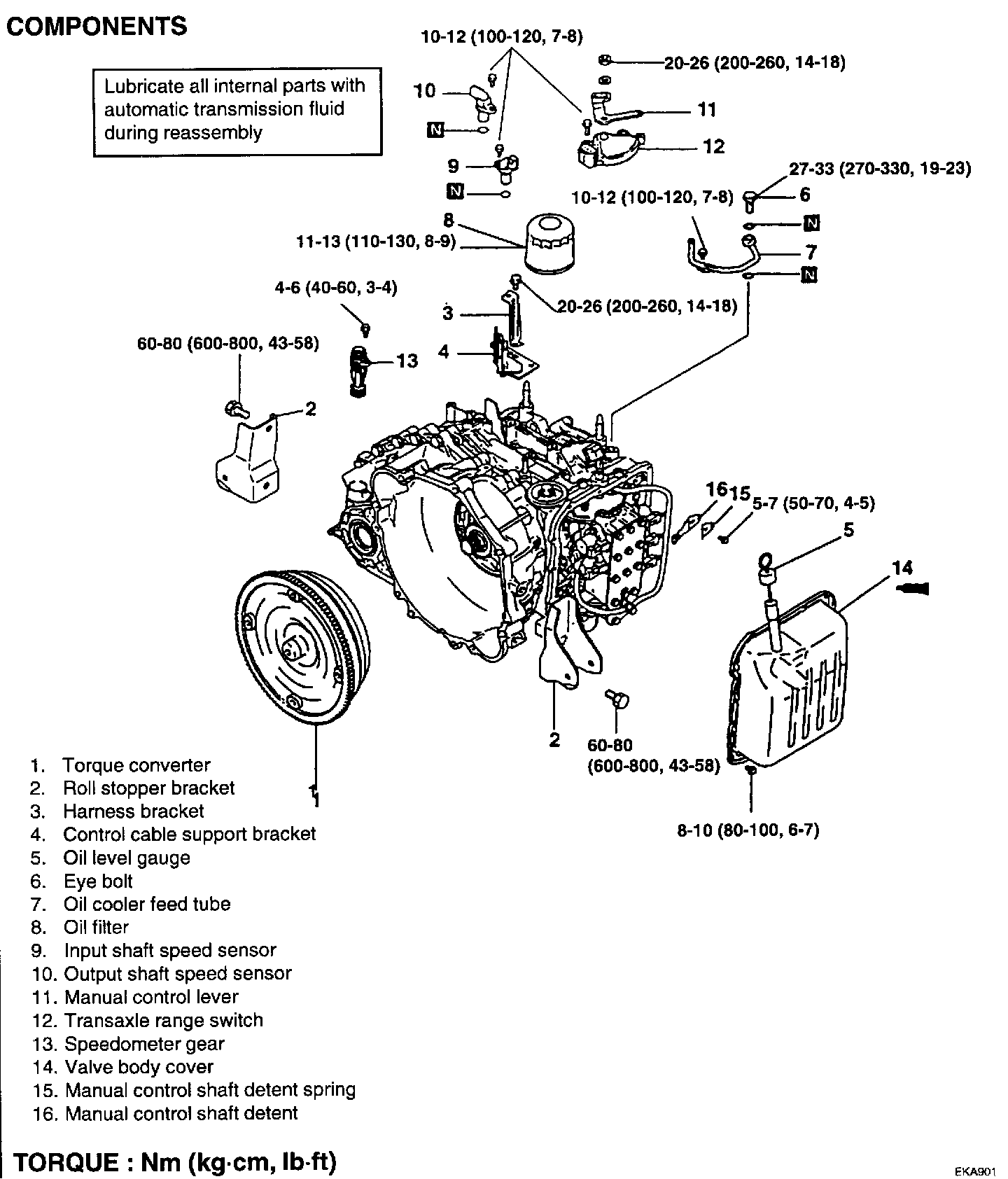

AUTOMATIC TRANSAXLE
VALVE BODY

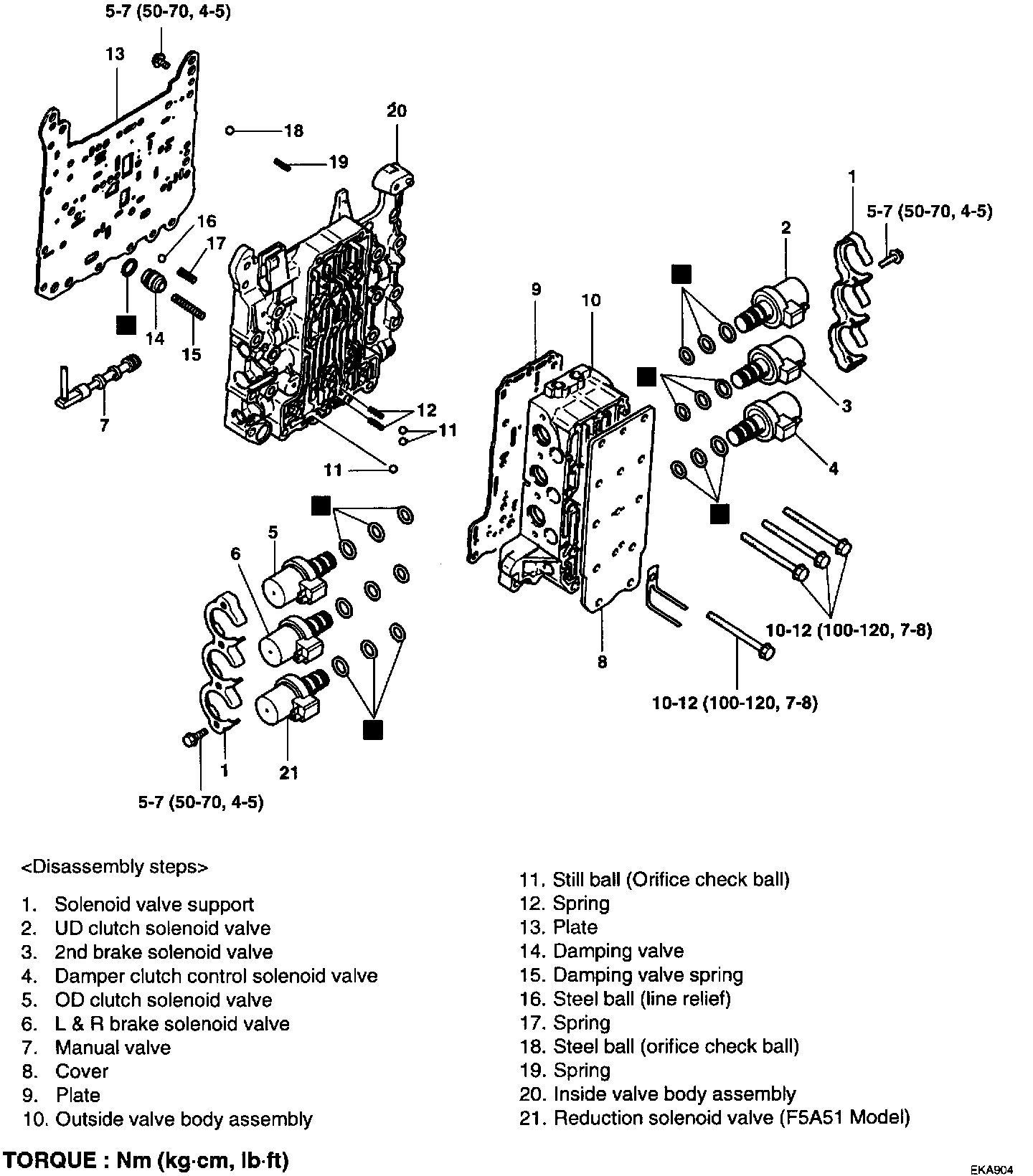

Valve Body

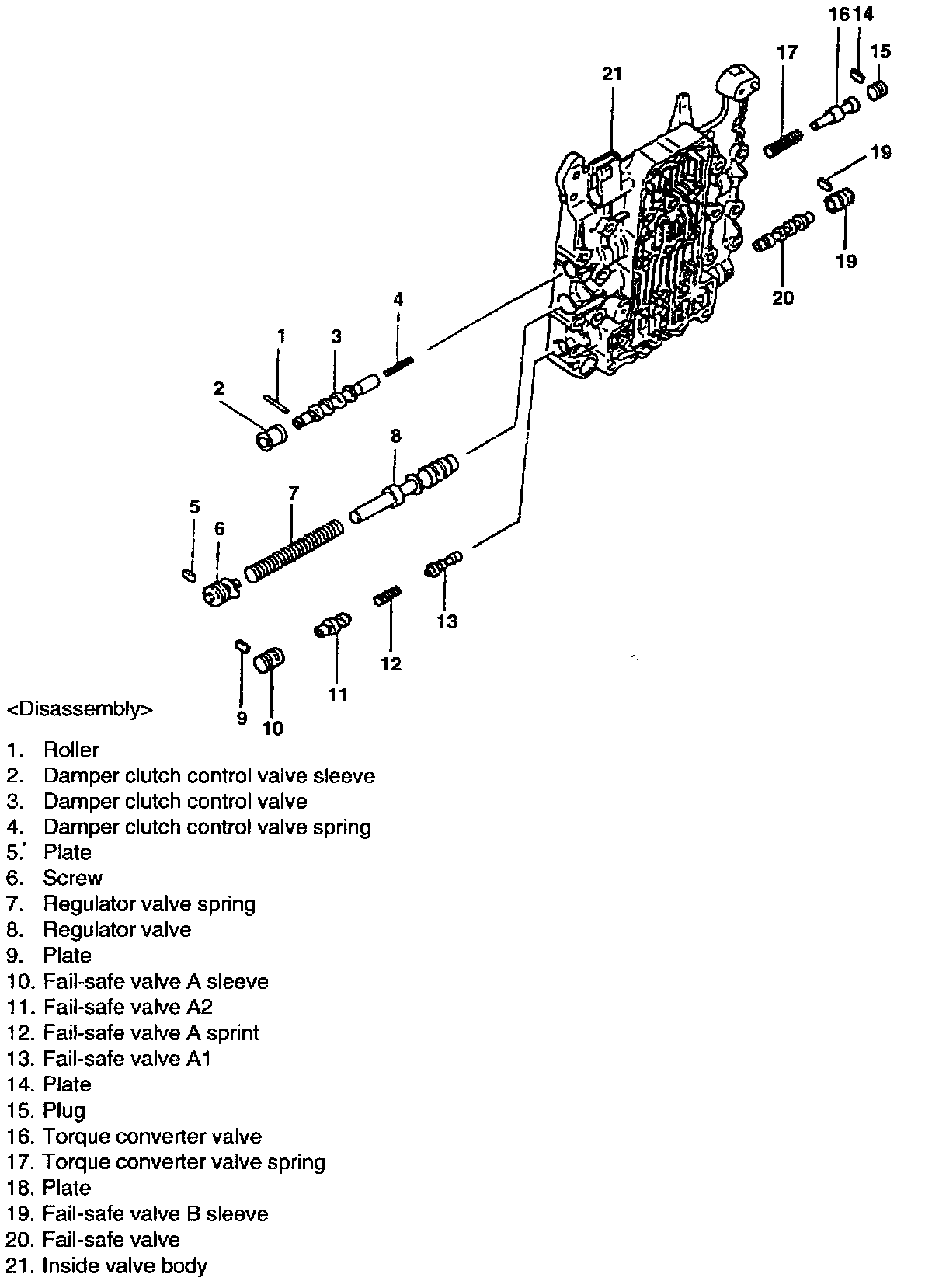

Inside Valve Body

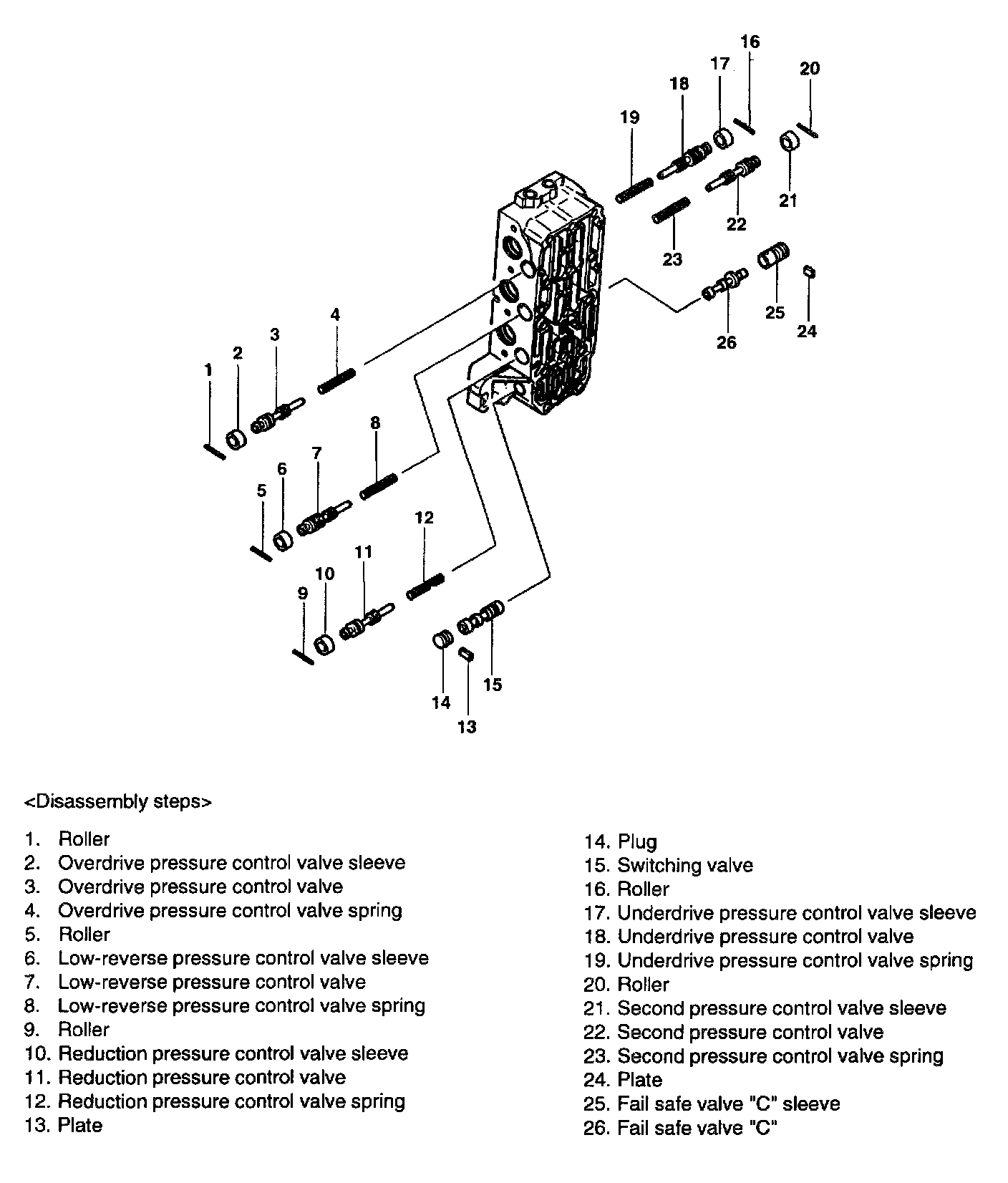

Outside Valve Body (F4A42 Model)

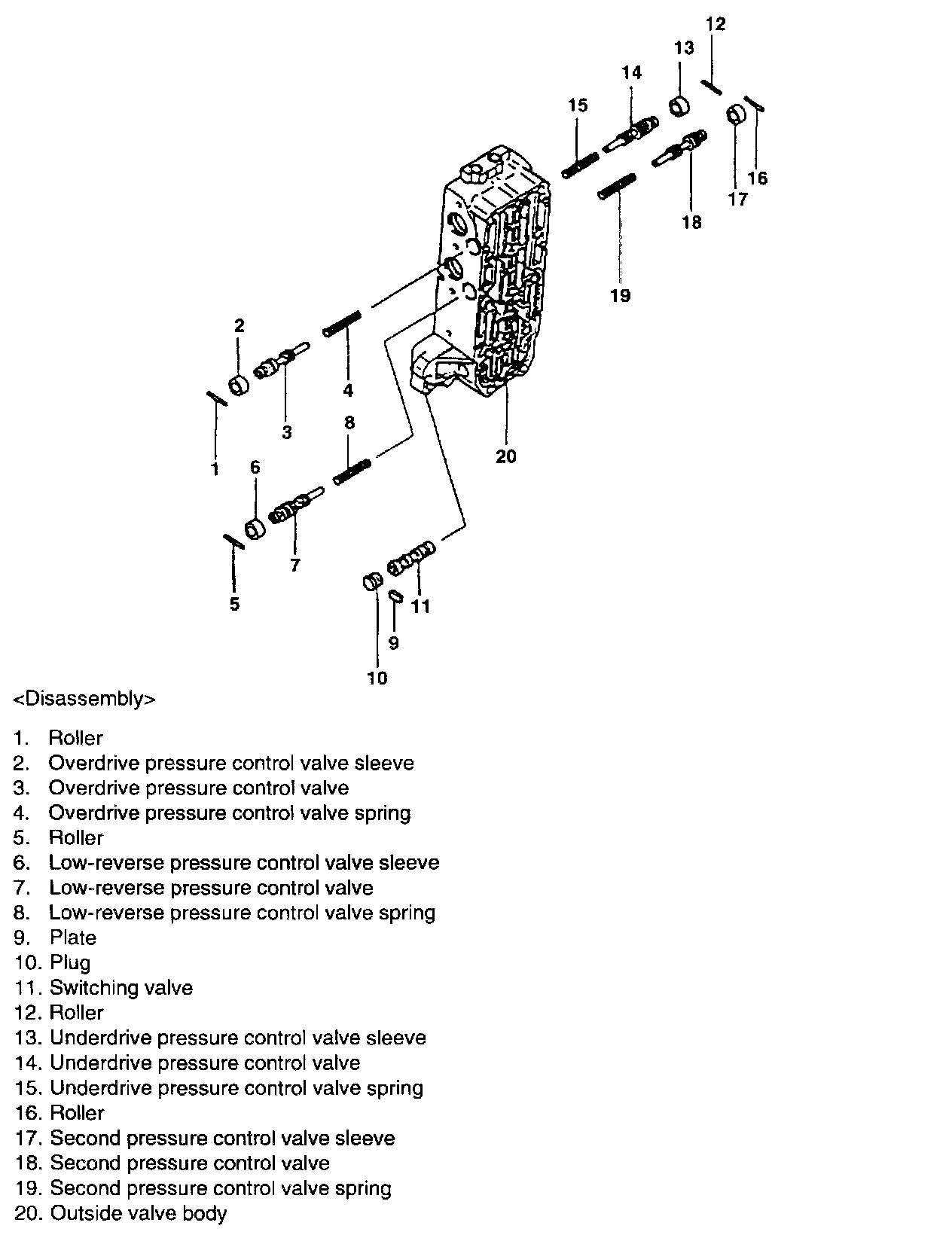

Outside Valve Body (F5A51 Model)

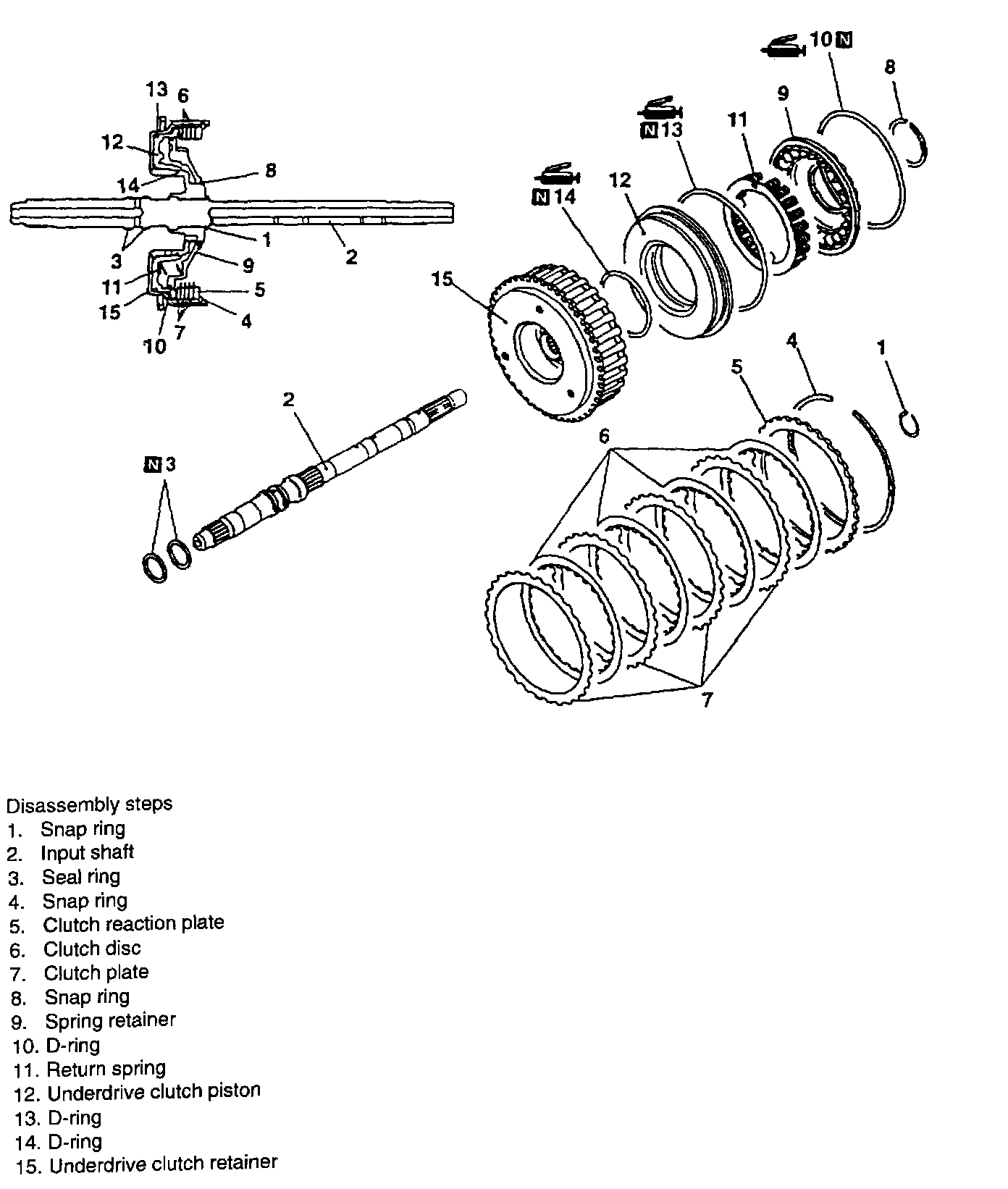

UNDERDRIVE CLUTCH AND INPUT SHAFT

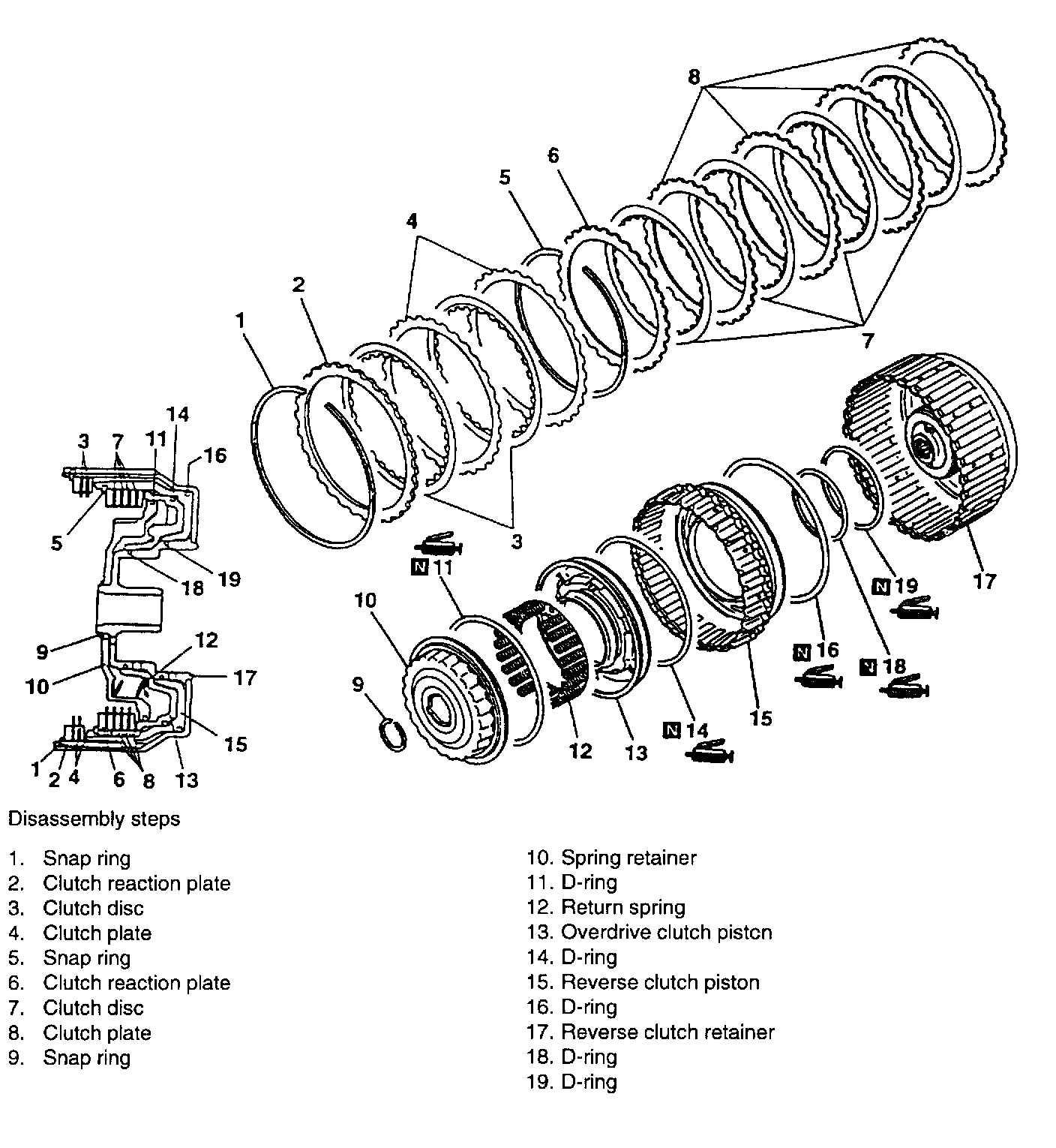

REVERSE AND OVERDRIVE CLUTCH

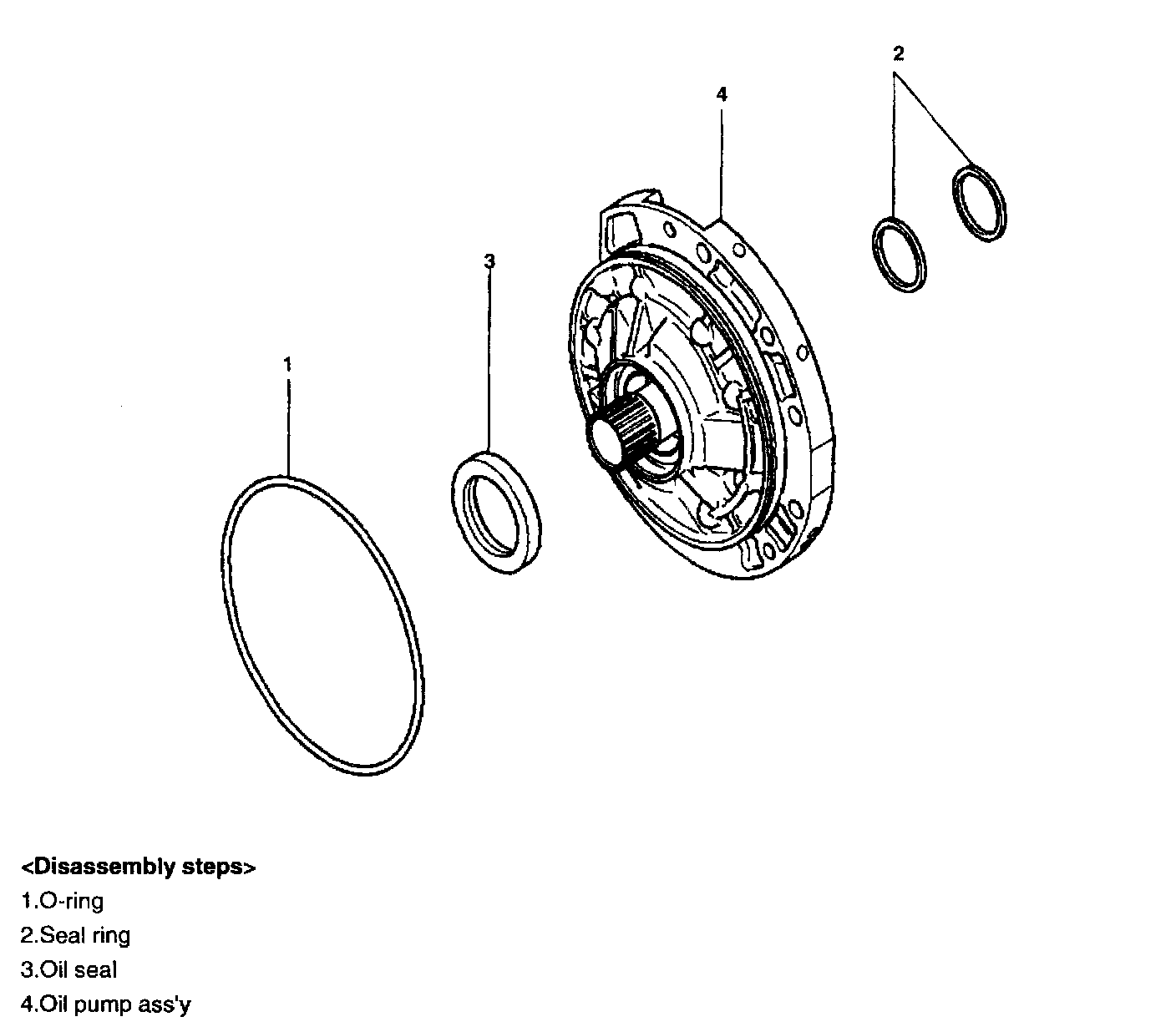

OIL PUMP ASSEMBLY
OUTPUT SHAFT

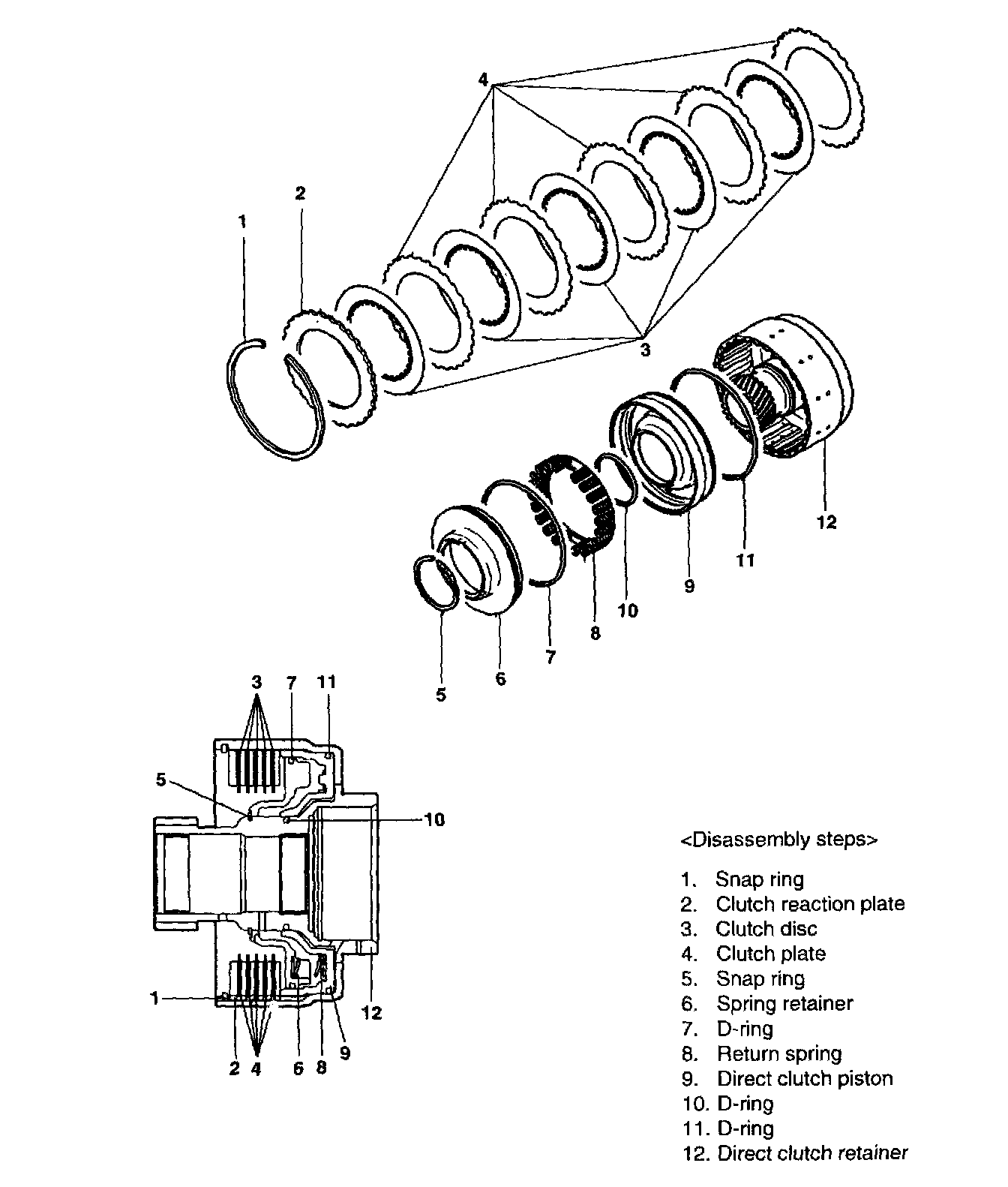

DIRECT CLUTCH (F5A51 Model)
DIRECT PLANETARY CARRIER (F5A51 Model)

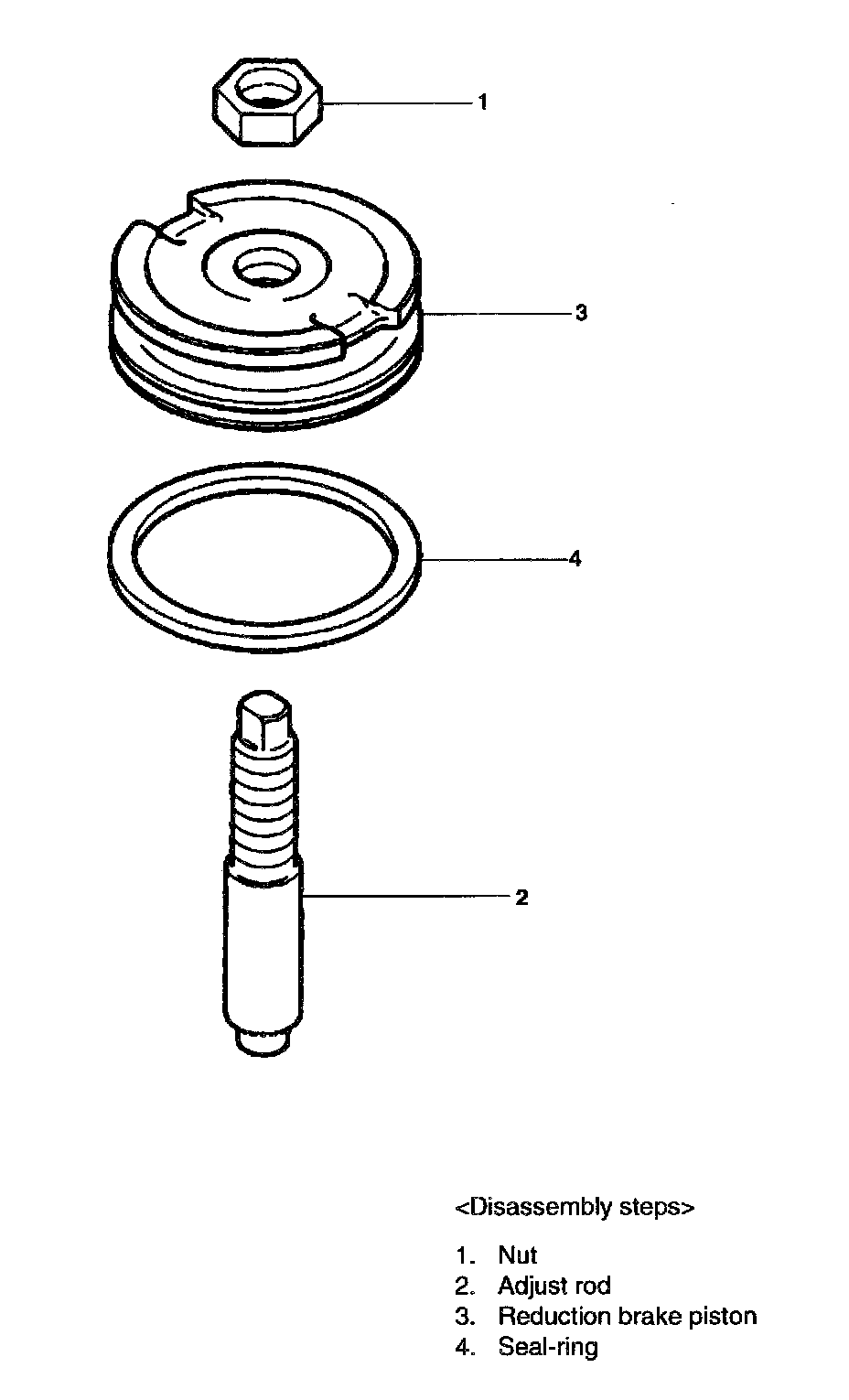

REDUCTION BRAKE PISTON (F5A51 Model)

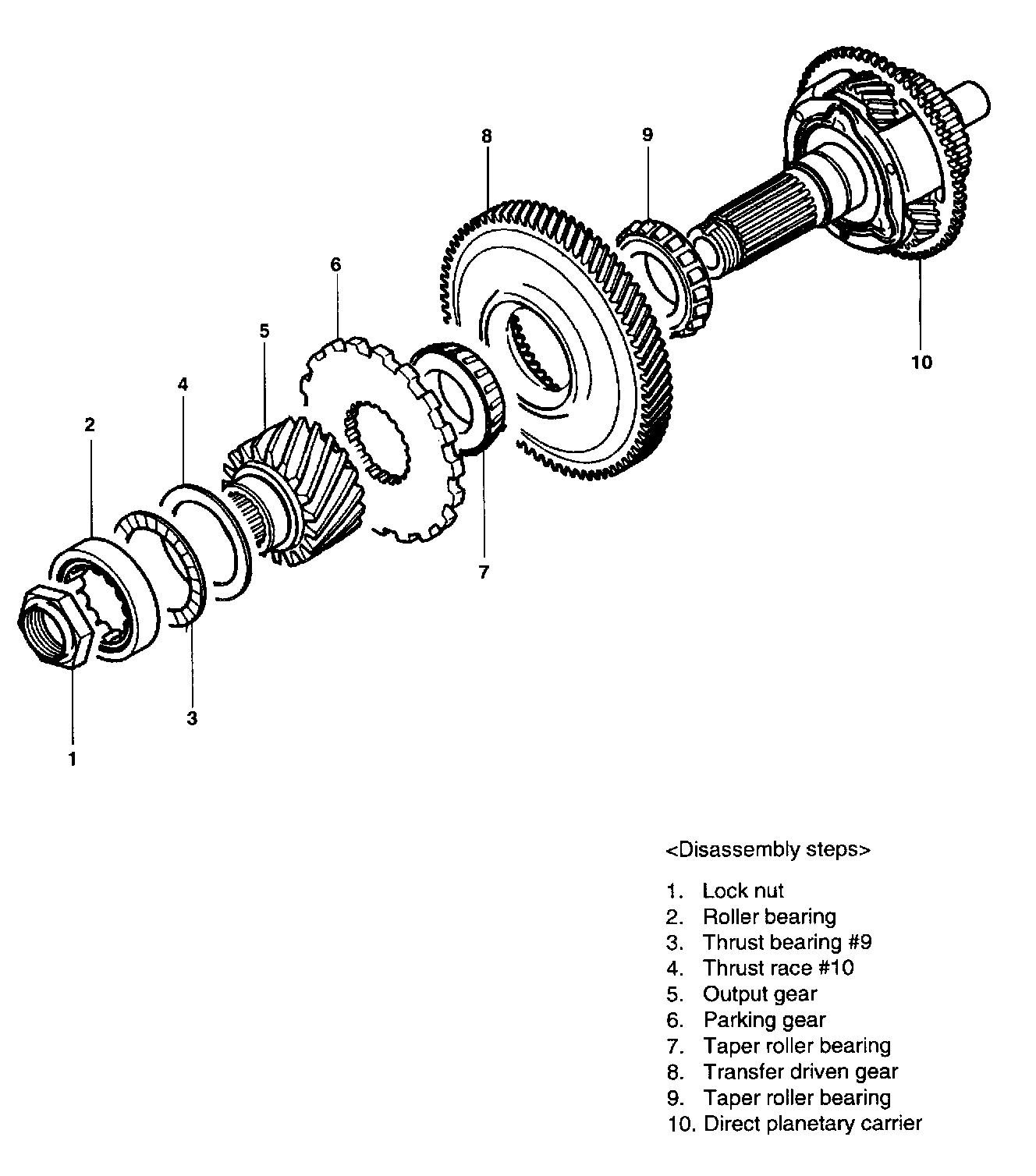

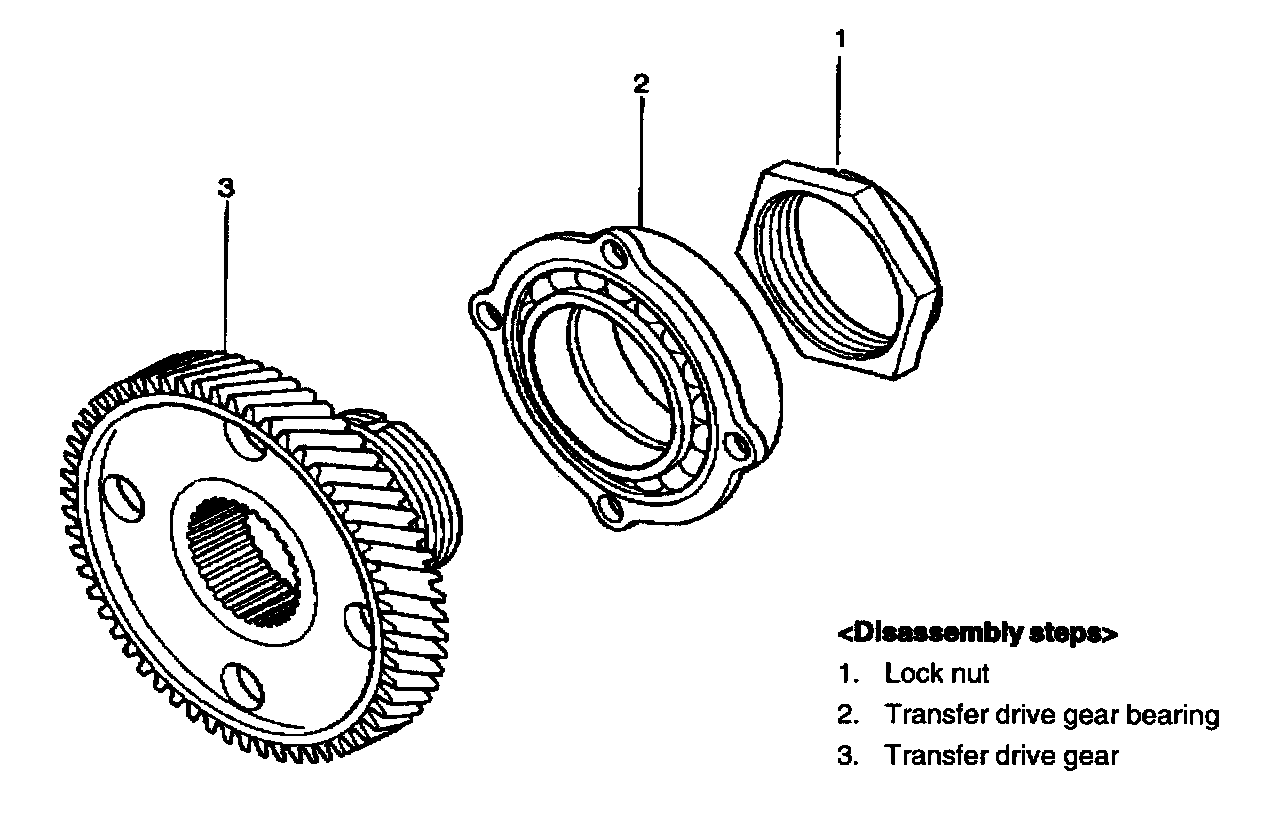

TRANSFER DRIVE GEAR

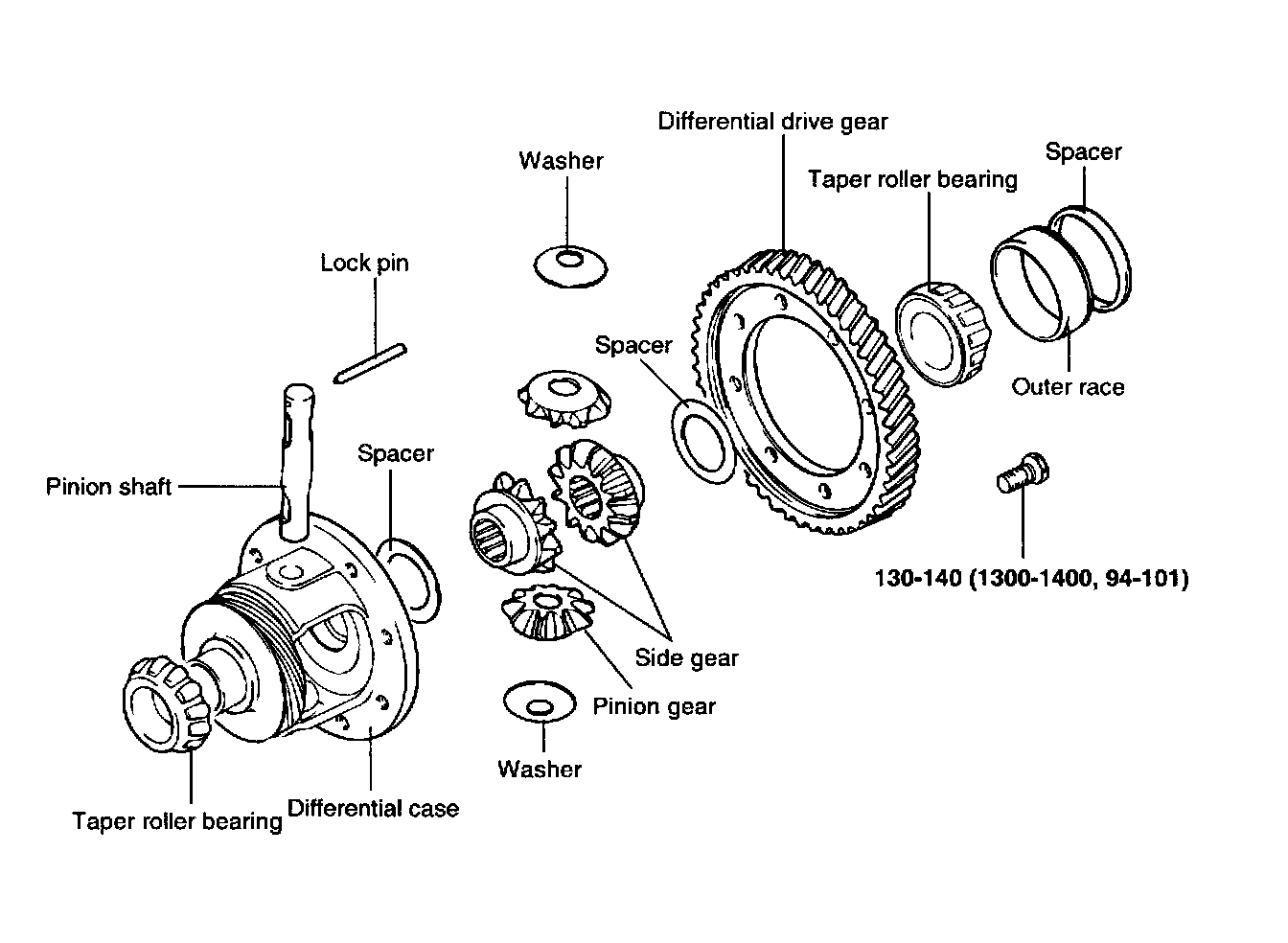

DIFFERENTIAL

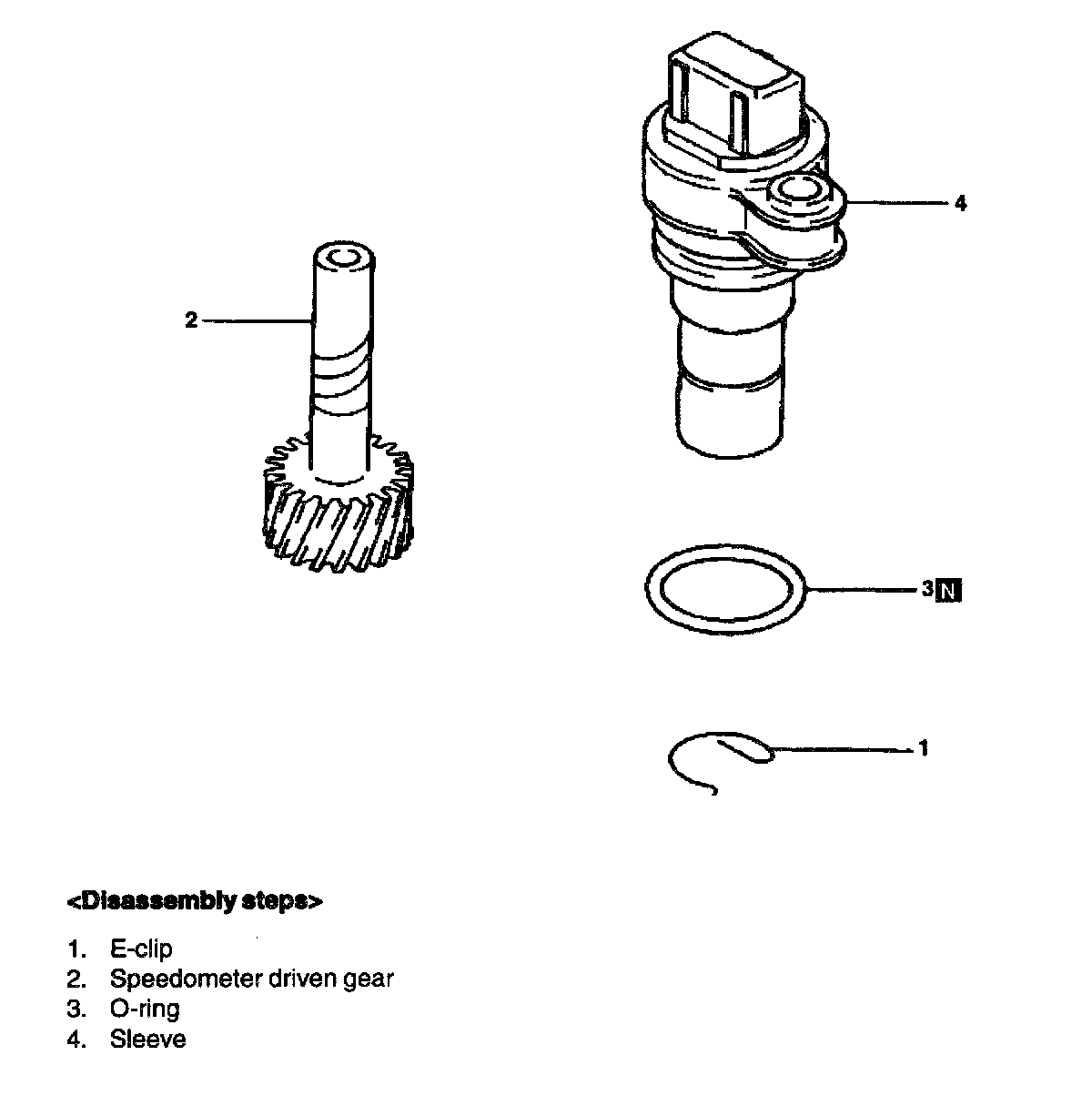

SPEEDOMETER DRIVEN GEAR
