System Diagram

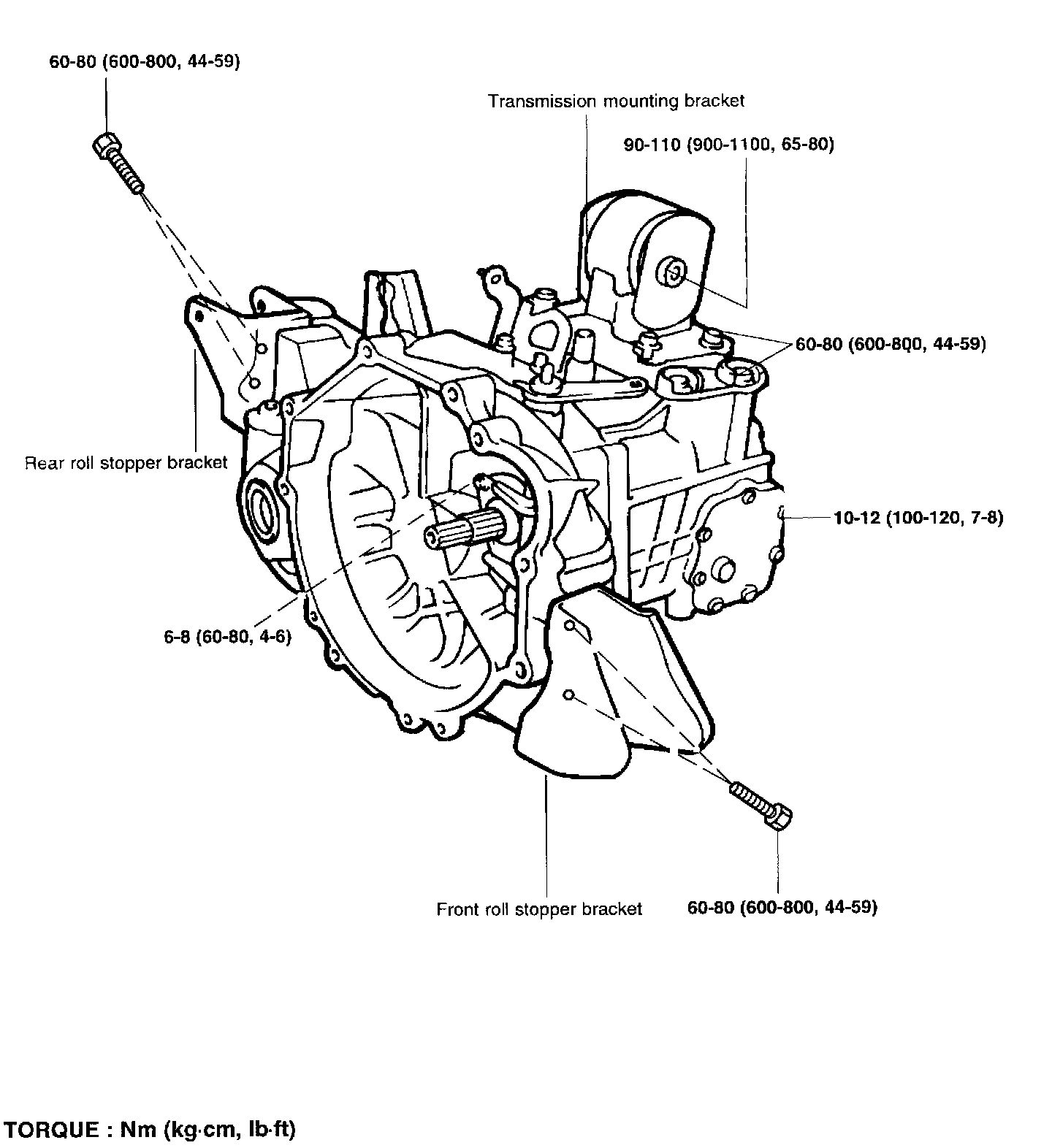

MANUAL TRANSAXLE ASSEMBLY

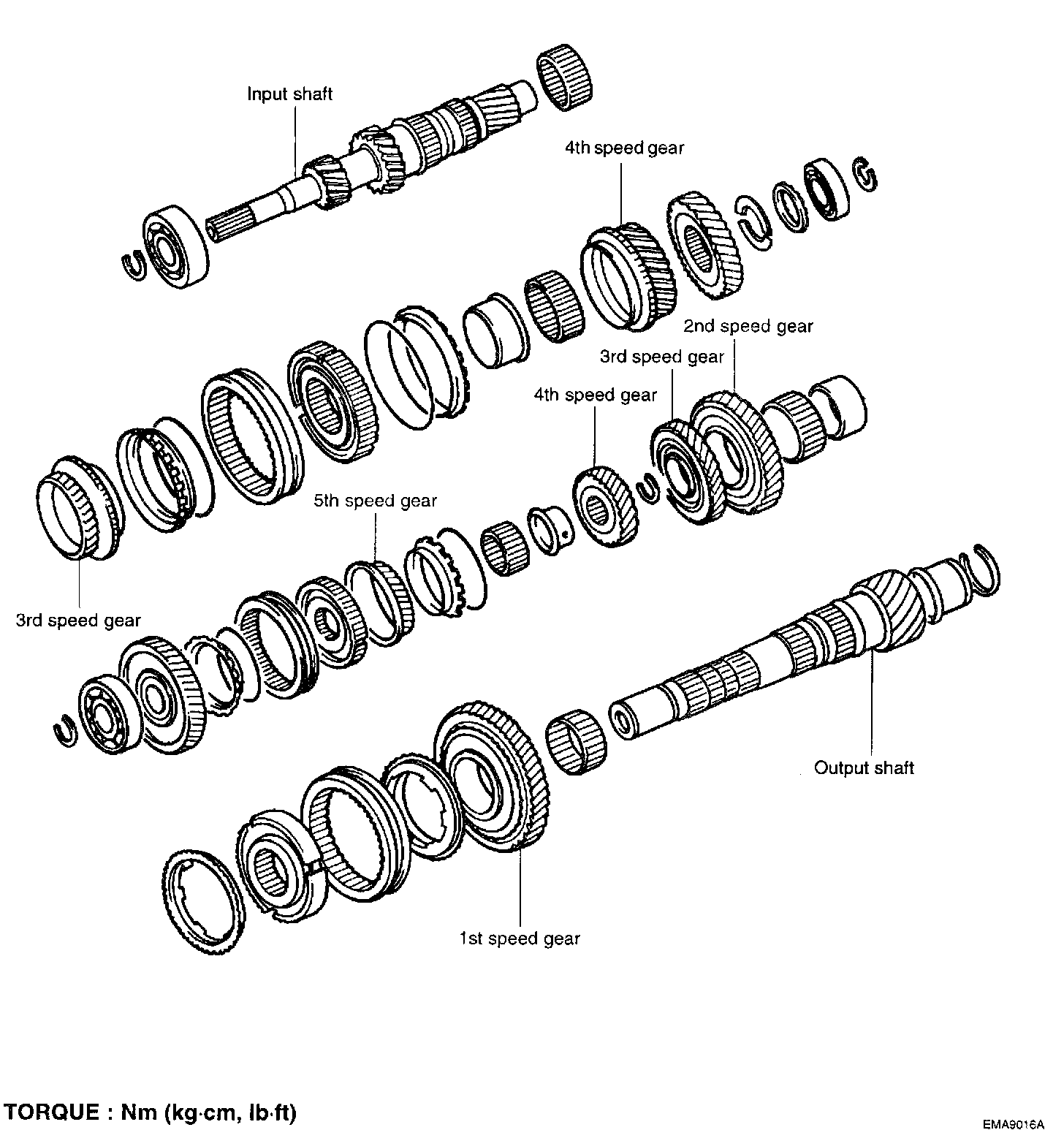

Part 1 of 2





Part 2 of 2

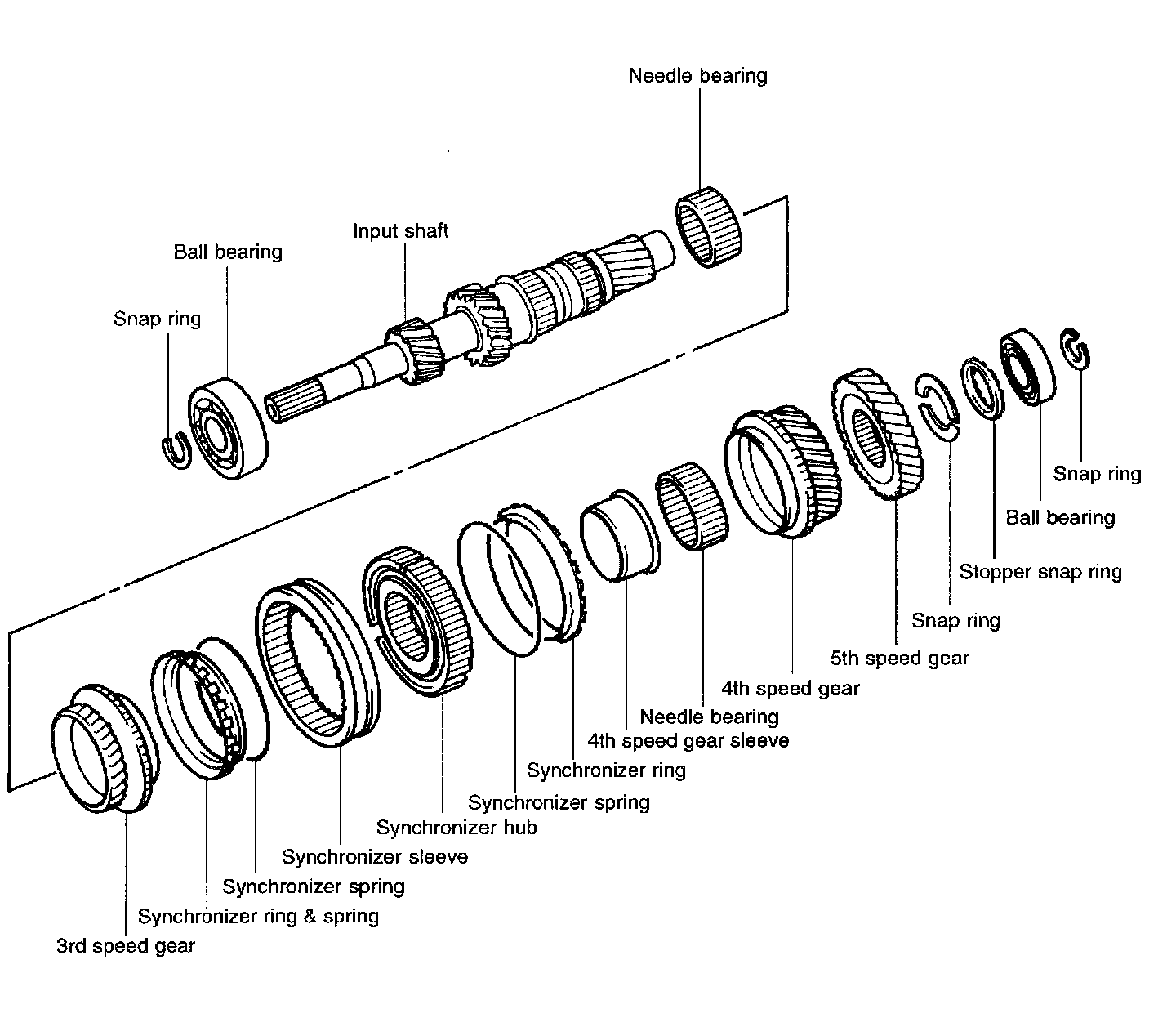

INPUT SHAFT

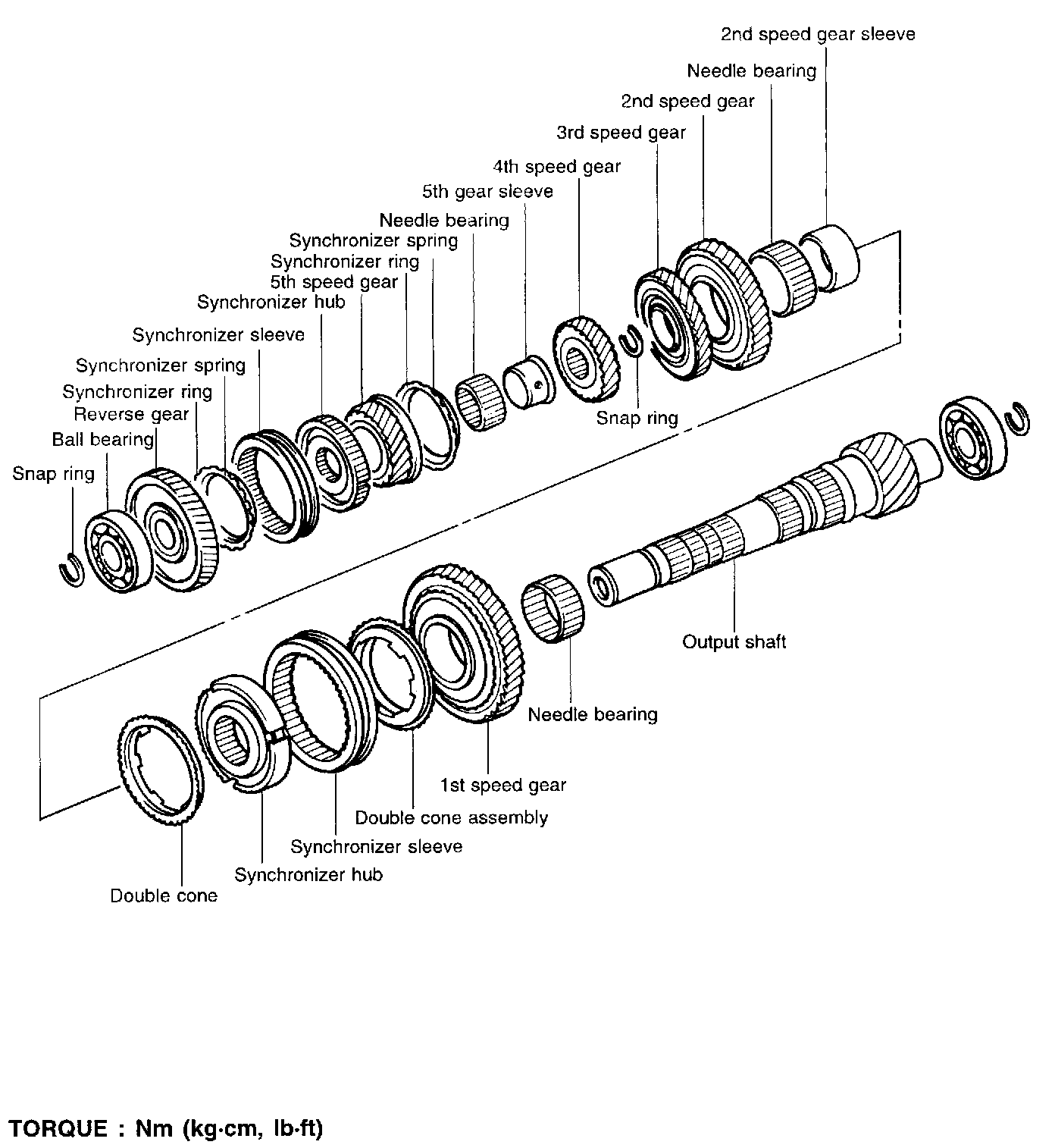

OUTPUT SHAFT

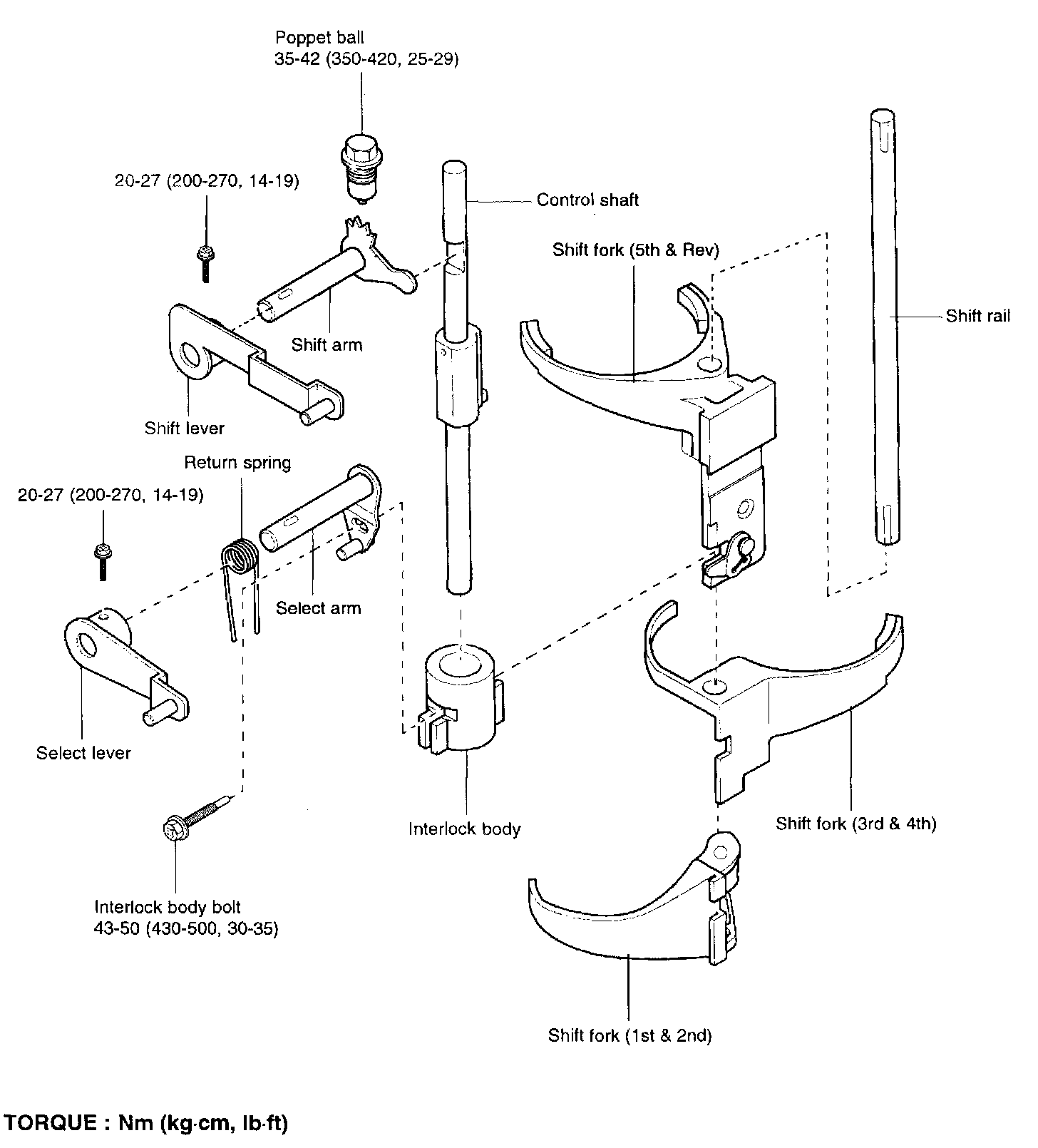

SHIFT FORK AND CONTROL SHAFT ASSEMBLY

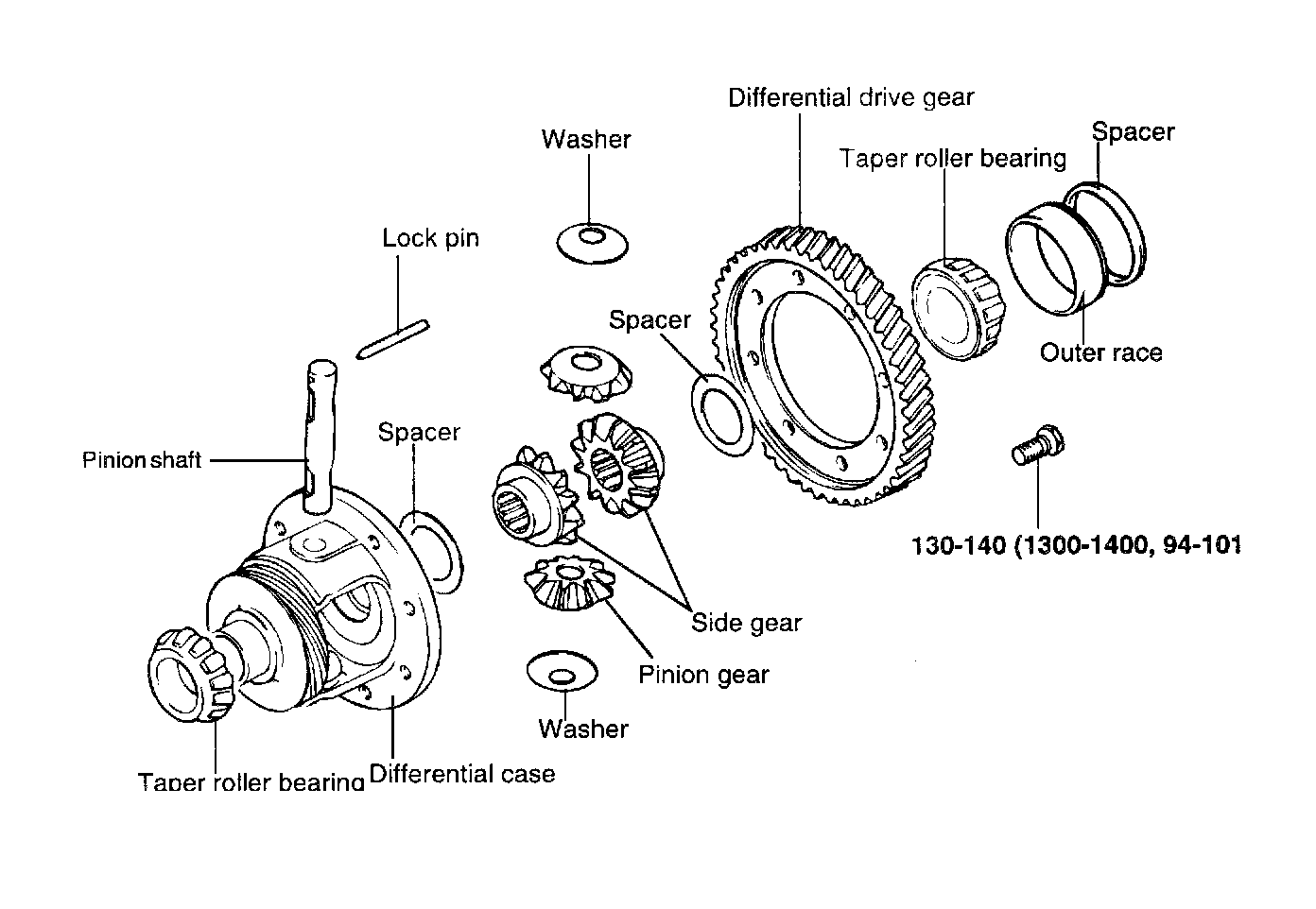

DIFFERENTIAL

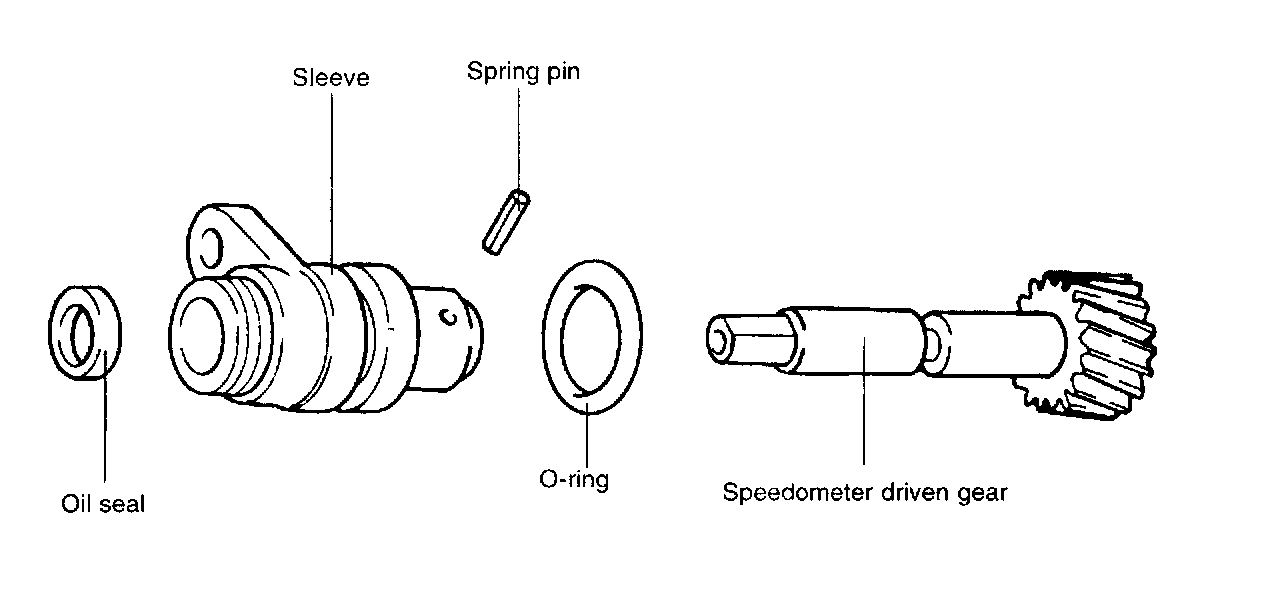

SPEEDOMETER DRIVEN GEAR ASSEMBLY
