Component View 2

2.4 DOHC and 2.5 V6:

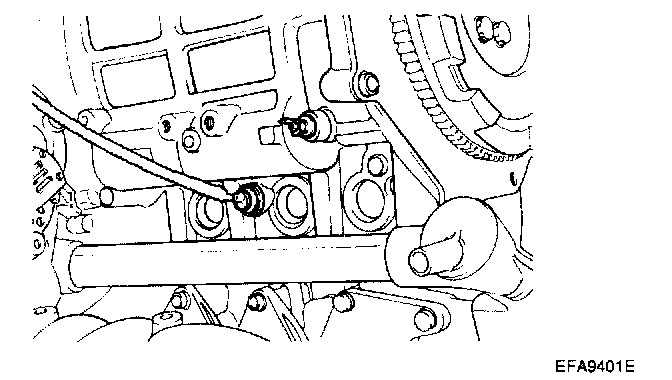

Knock Sensor:

1. Engine coolant temperature (ECT) sensor
2. Manifold absolute pressure (MAP) sensor. (For EGR system 2.4 DOHC only)
3. Mass air flow sensor (Hot film sensor)
4. Intake air temperature (IAT) sensor (2.4 DOHC: Built in MAF sensor)
5. Throttle position sensor (TPS)
6. Idle position switch (2.4 DOHC only)
7. Idle speed actuator (ISA)
8. Heated oxygen sensor (HO2S).
9. Camshaft position sensor (CMP)
10. Crankshaft position sensor (CKP)
11. Injector
12. EVAP. canister purge control solenoid valve (PCSV)
13. Knock sensor
14. Power steering oil pressure switch
15. EGR solenoid valve (2.4 DOHC only)
16. Canister close valve
17. Fuel tank pressure sensor
