ALIGNMENT SPECIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 99-50-008, Date of Issue: October, 1999

Model(s): 1999-2000 Hyundai Accent, Elantra, Sonata, Tiburon

Group: Chassis

Bulletin No.: 99-50-008

Date: October, 1999

This bulletin is being issued to communicate, in chart form, the final 1999 and the initial 2000 model year vehicle alignment specifications.

Specifications provided in these charts are the latest available and supersede any that have been previously published.

Refer to Fig 1 .

Refer to Fig 2 .

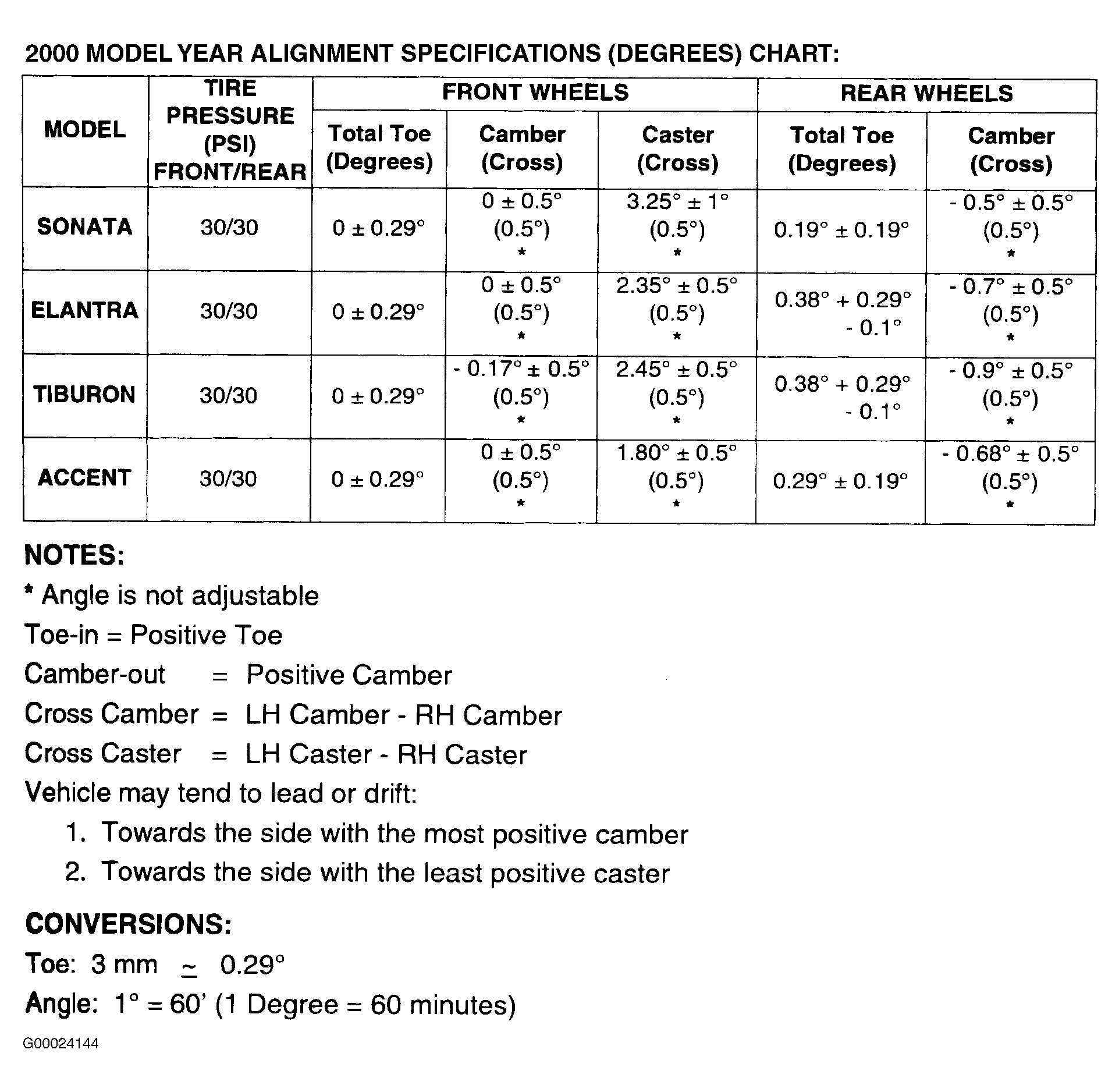

Fig 1: 2000 Model Year Alignment Specifications (Degrees) Chart

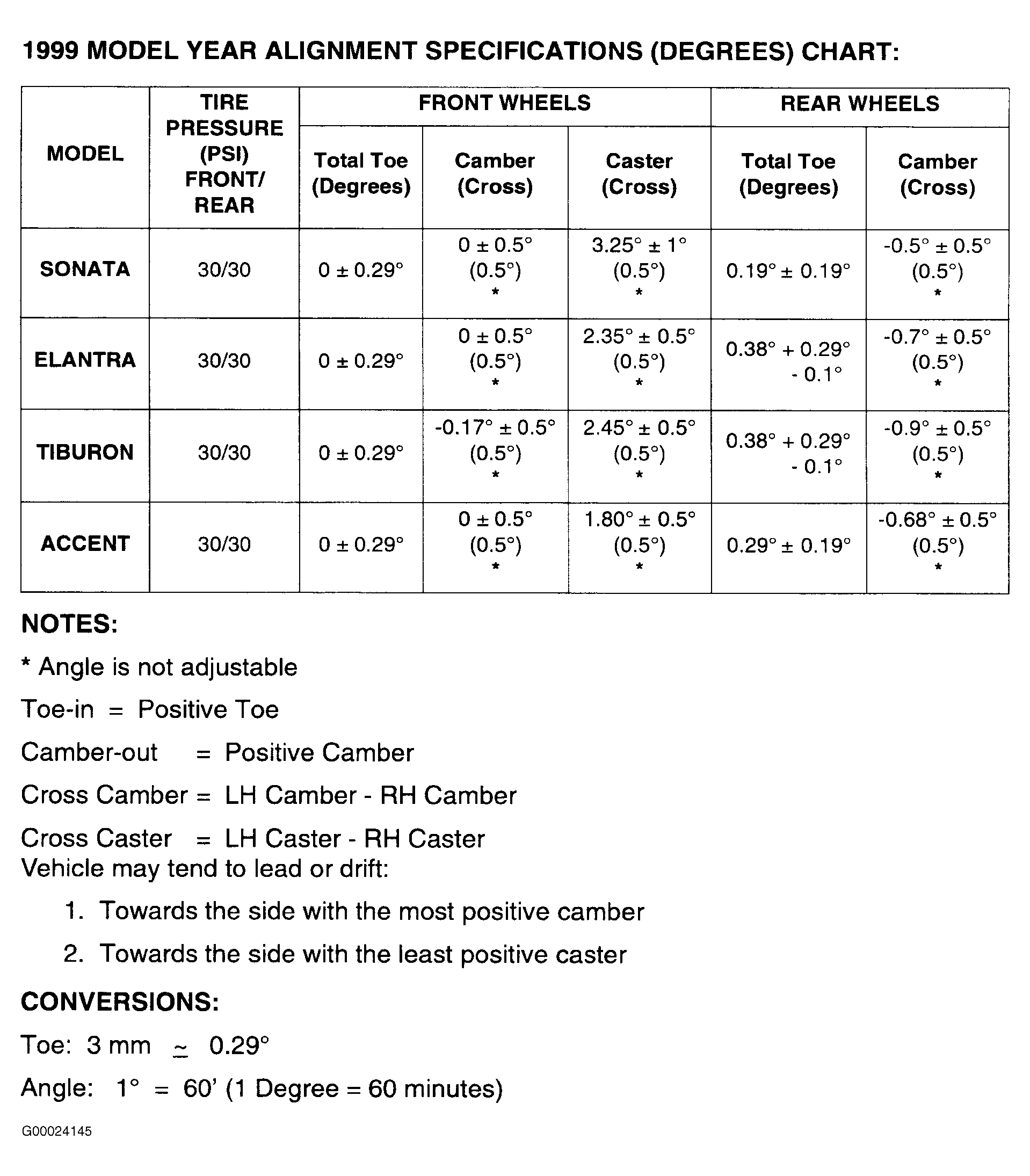

Fig 2: 1999 Model Year Alignment Specifications (Degrees) Chart
