Ignition System

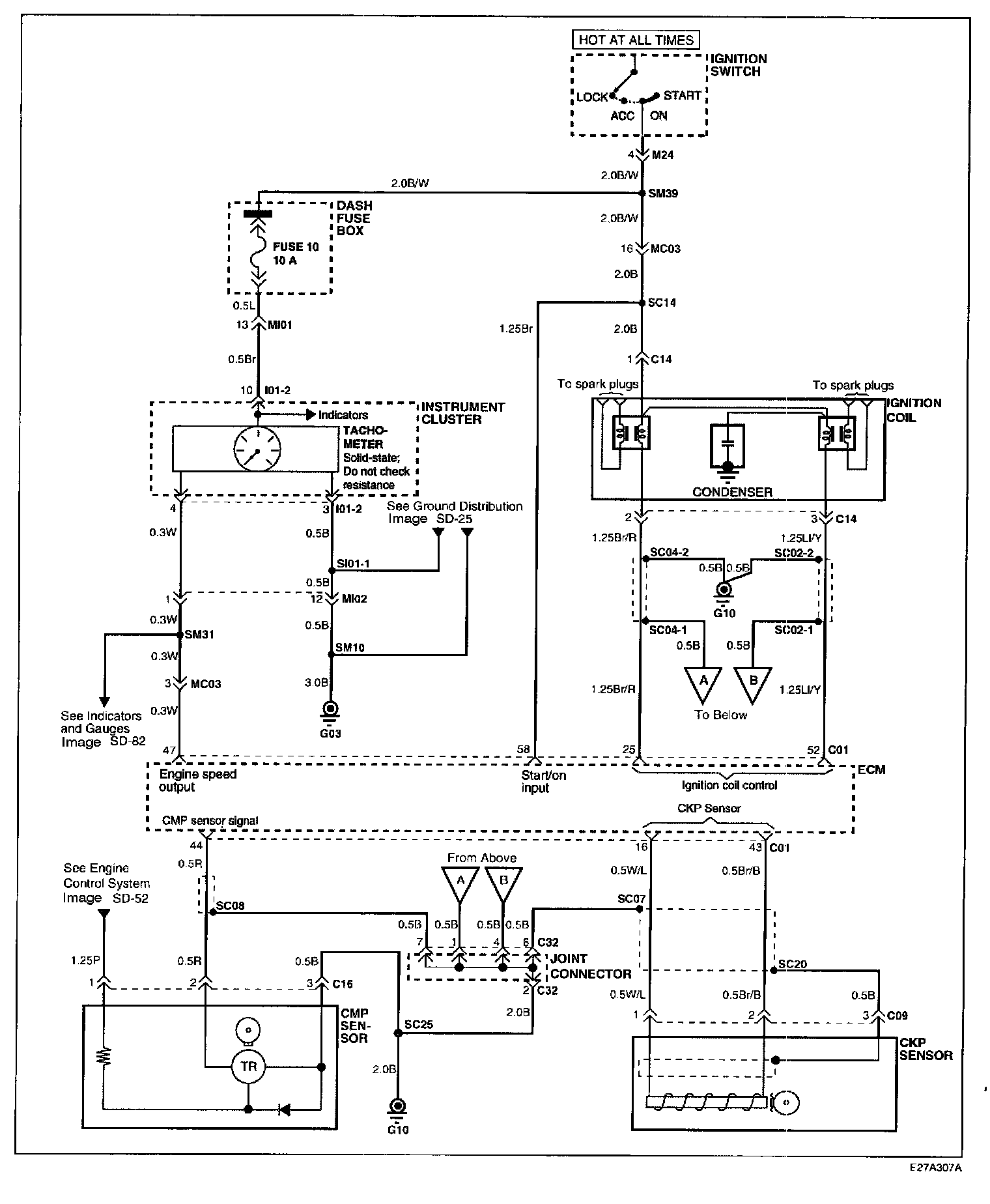

Image SD - 40:




Schematic Diagrams

Connector Configurations Are Found In The Diagram Section (Tiburon) Of The Vehicle.
Diagrams

Connector Locations Are Found In The Locations Section (Tiburon) Of Vehicle.
Locations
