Steering/Suspension - Alignment Specifications

Group: CHASSIS

Number: 01-50-002

Date: MARCH, 2001

Model: ALL

Subject:
ALIGNMENT SPECIFICATIONS

DESCRIPTION:

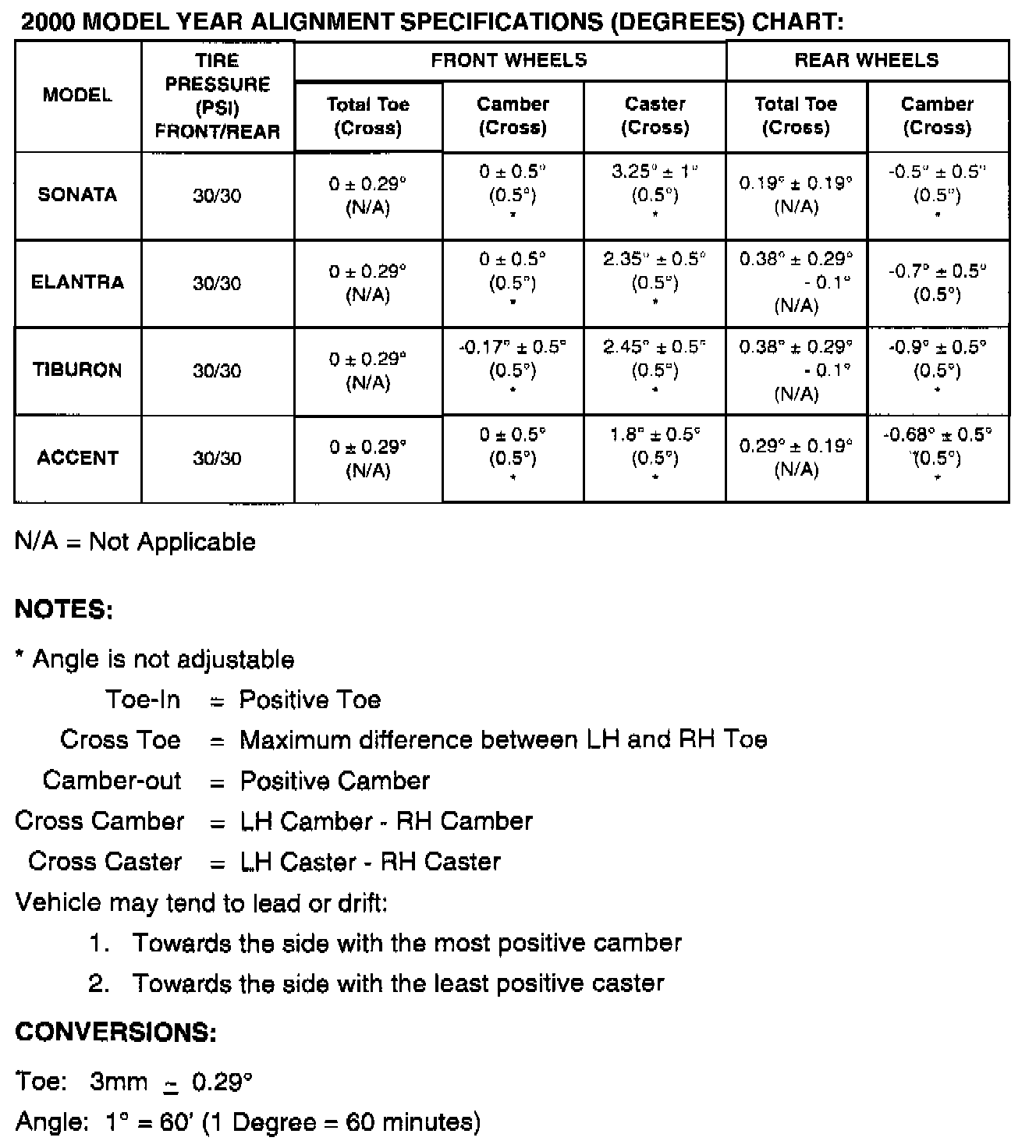

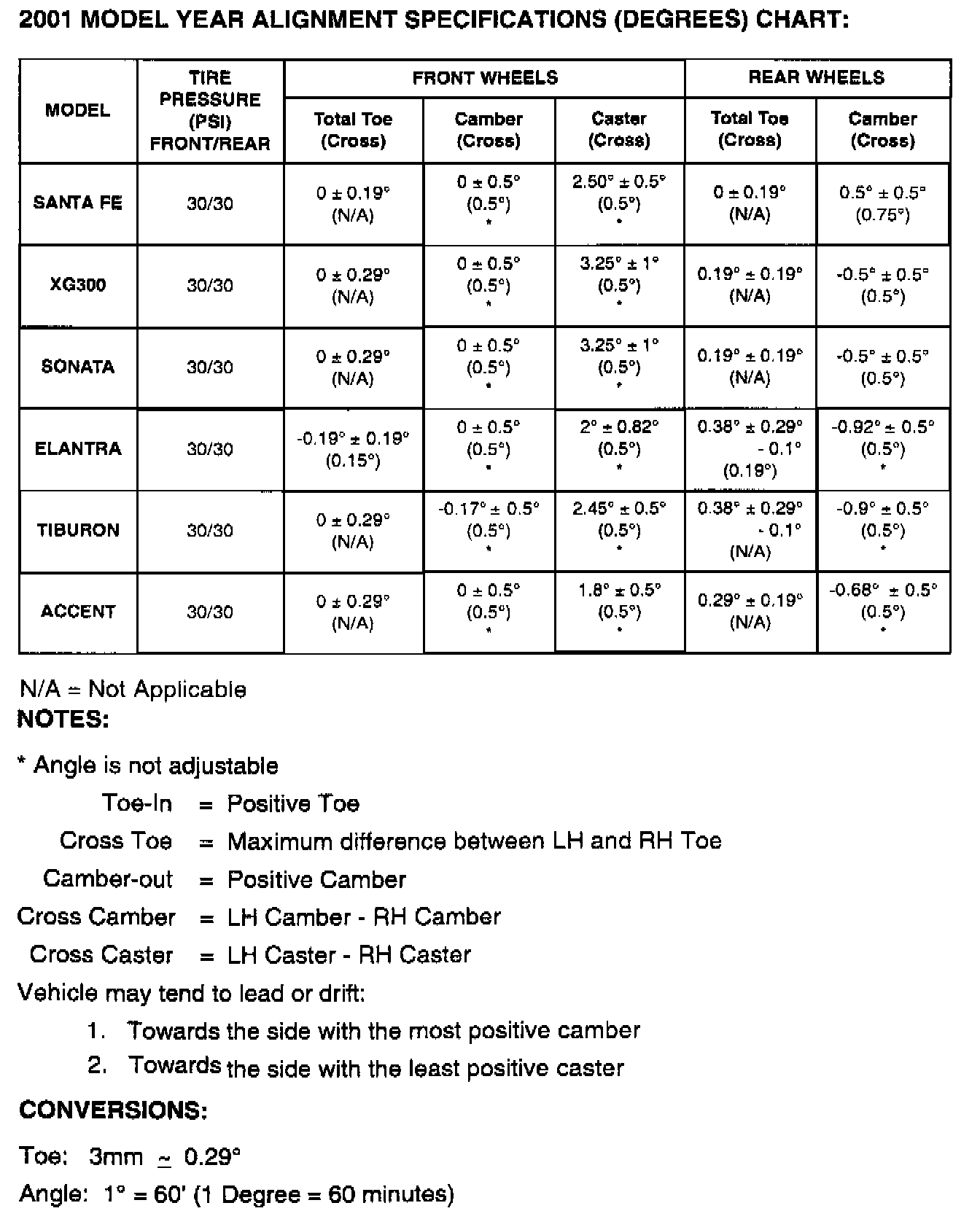

This bulletin provides the 2000 and 2001 model year vehicle alignment specifications.








Specifications provided in these charts supersede any that have been previously published.
