Symptom Cross Reference Chart

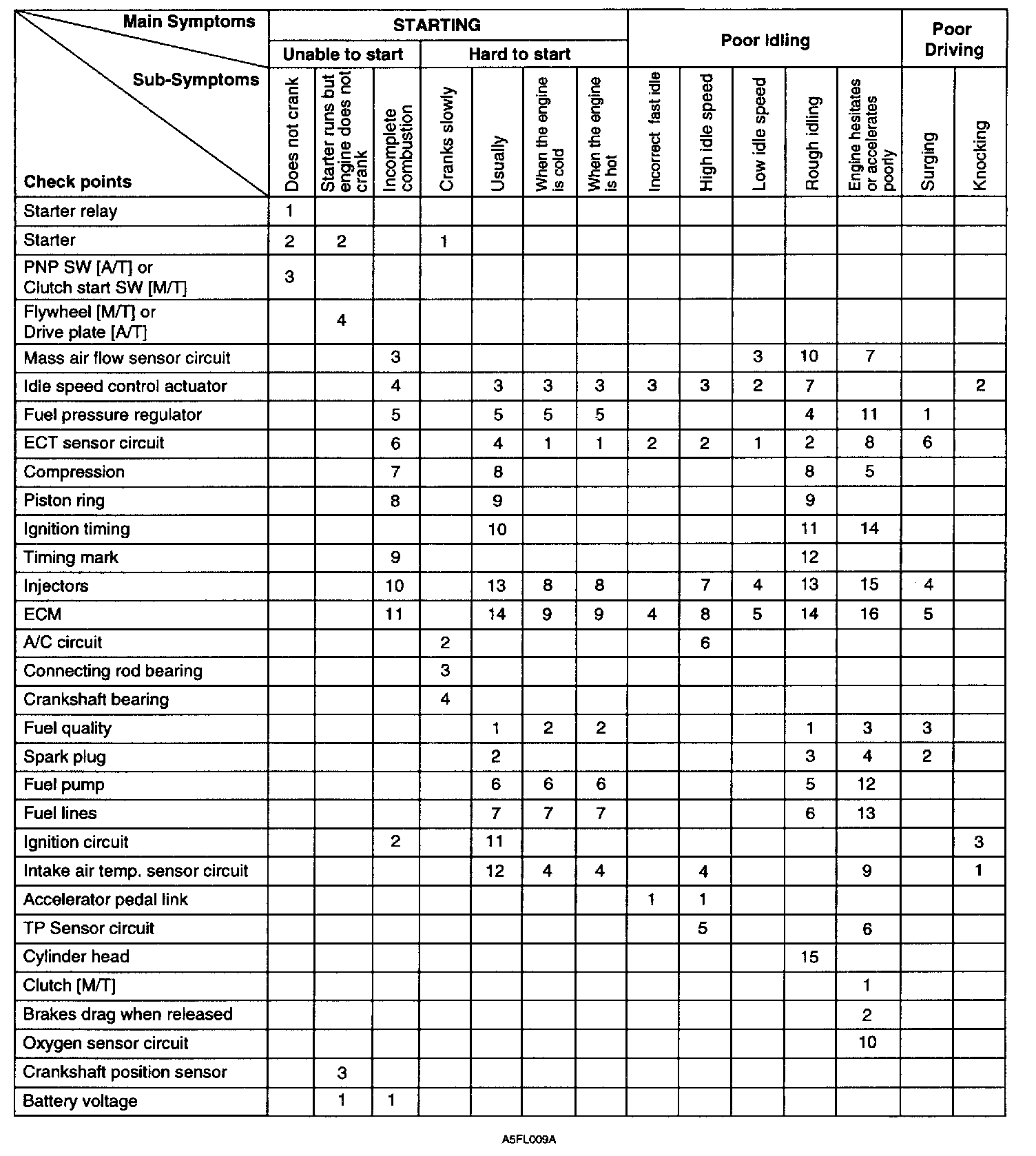

Troubleshooting Guide Chart (Part 1 Of 2):

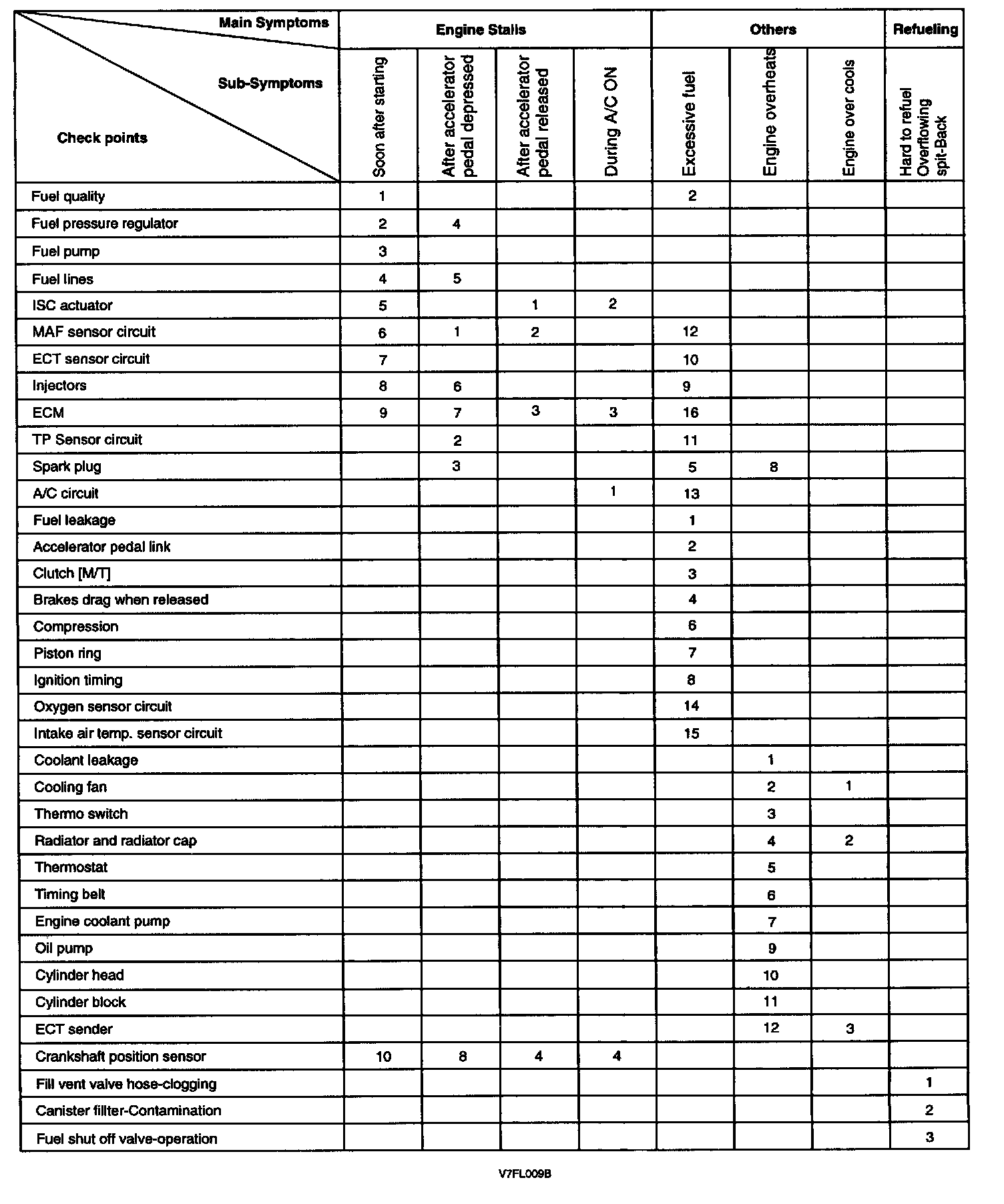

Troubleshooting Guide Chart (Part 2 Of 2):






NOTE: The number herein means the check order.
