Generators & Regulators: Overhaul

NOTE: See Fig 1-Fig 3 for generator overhaul.

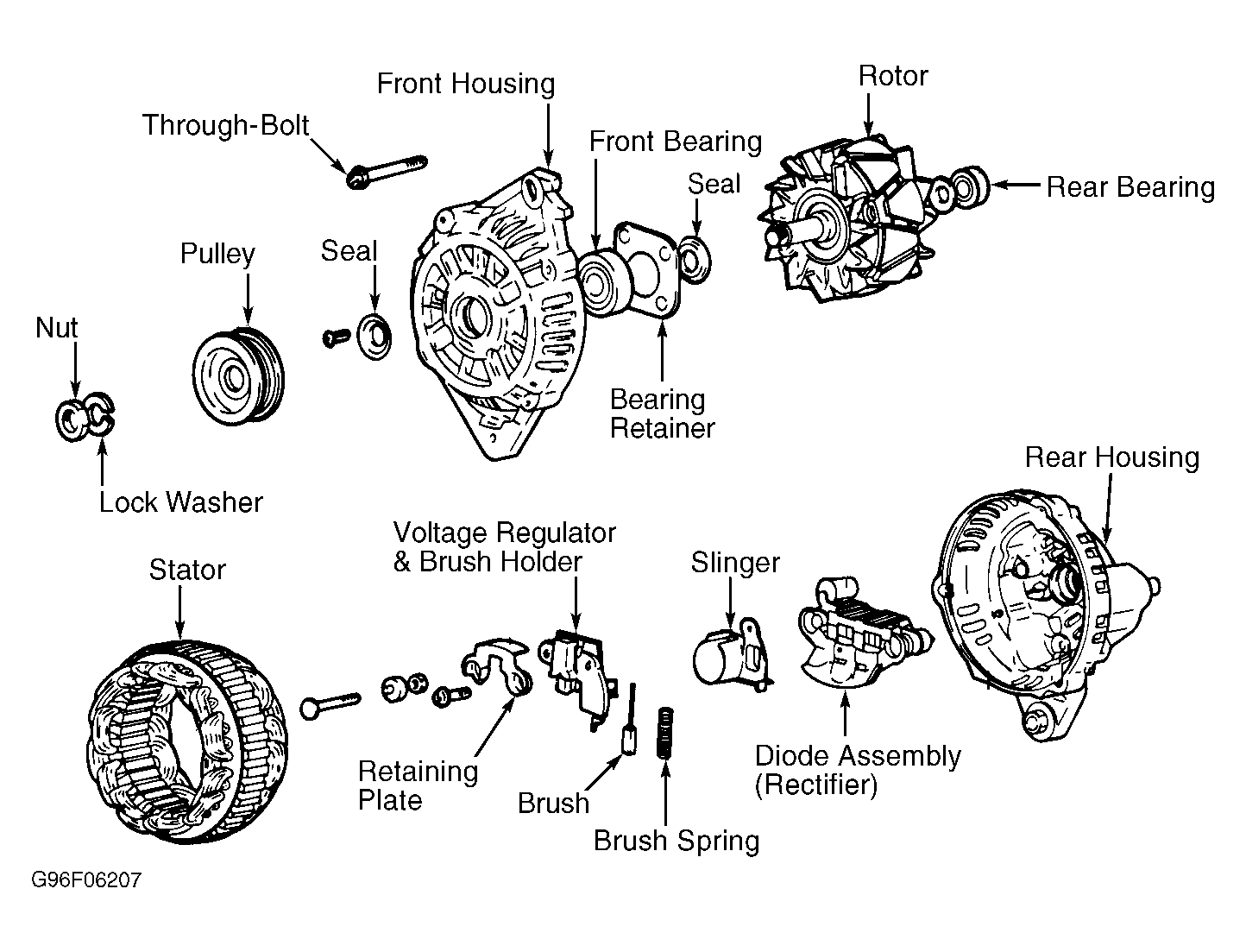

Fig 1: Exploded View Of 80-Amp Generator
G96F06207Courtesy of HYUNDAI MOTOR CO.

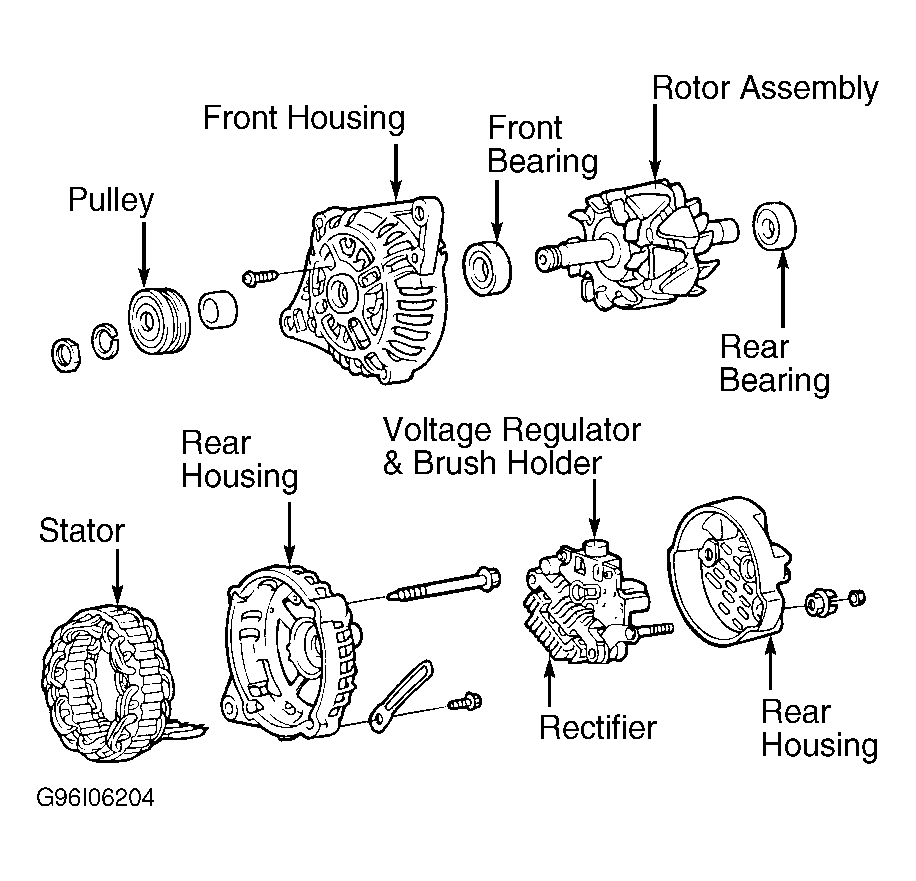

Fig 2: Exploded View Of 90-Amp Generator
G96I06204Courtesy of HYUNDAI MOTOR CO.

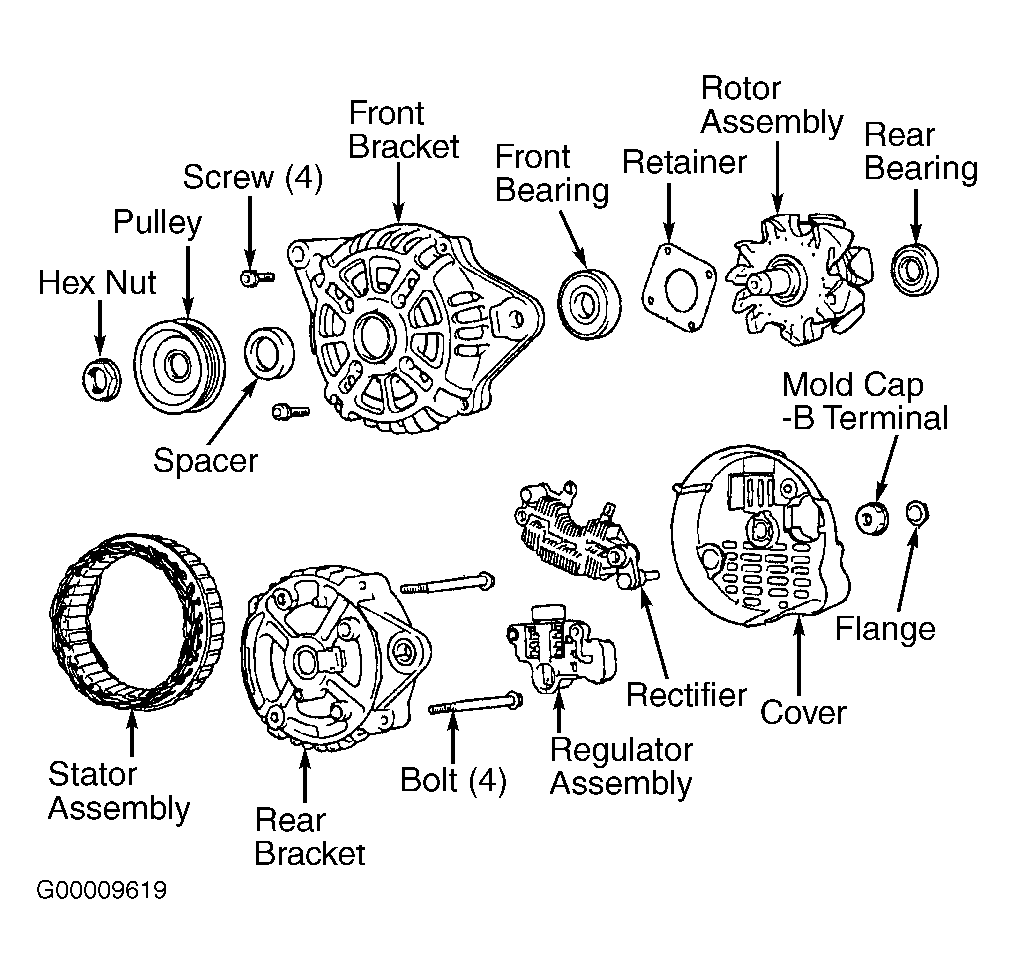

Fig 3: Exploded View Of 95-Amp Generator (Sonata V6)
G00009619Courtesy of HYUNDAI MOTOR CO.
