Timer/Control Unit: Service and Repair

ELECTRONIC TIME & ALARM CONTROL MODULE

REMOVAL AND INSTALLATION
1. Disconnect the negative battery terminal.
2. Remove the driver side lower crashpad.

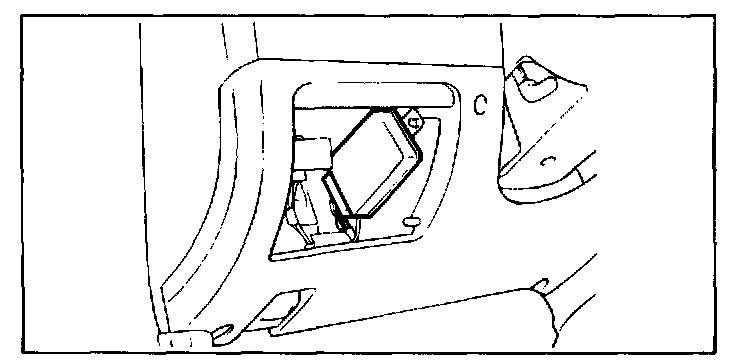

3. After removal of the ETACM (Electronic Time and Alarm Control Module) mounting bolts (2EA), disconnect its connector.
4. Installation is the reverse of removal.
