Tightening Torque Specifications

TIGHTENING TORQUE





1 of 2





2 of 2





Main Bearing Tightening Sequence





Cylinder Head Tightening Sequence

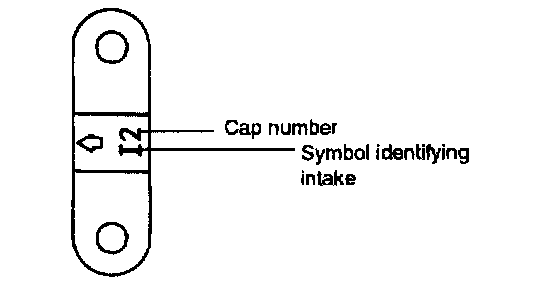

Camshaft Bearing Cap Tightening Sequence

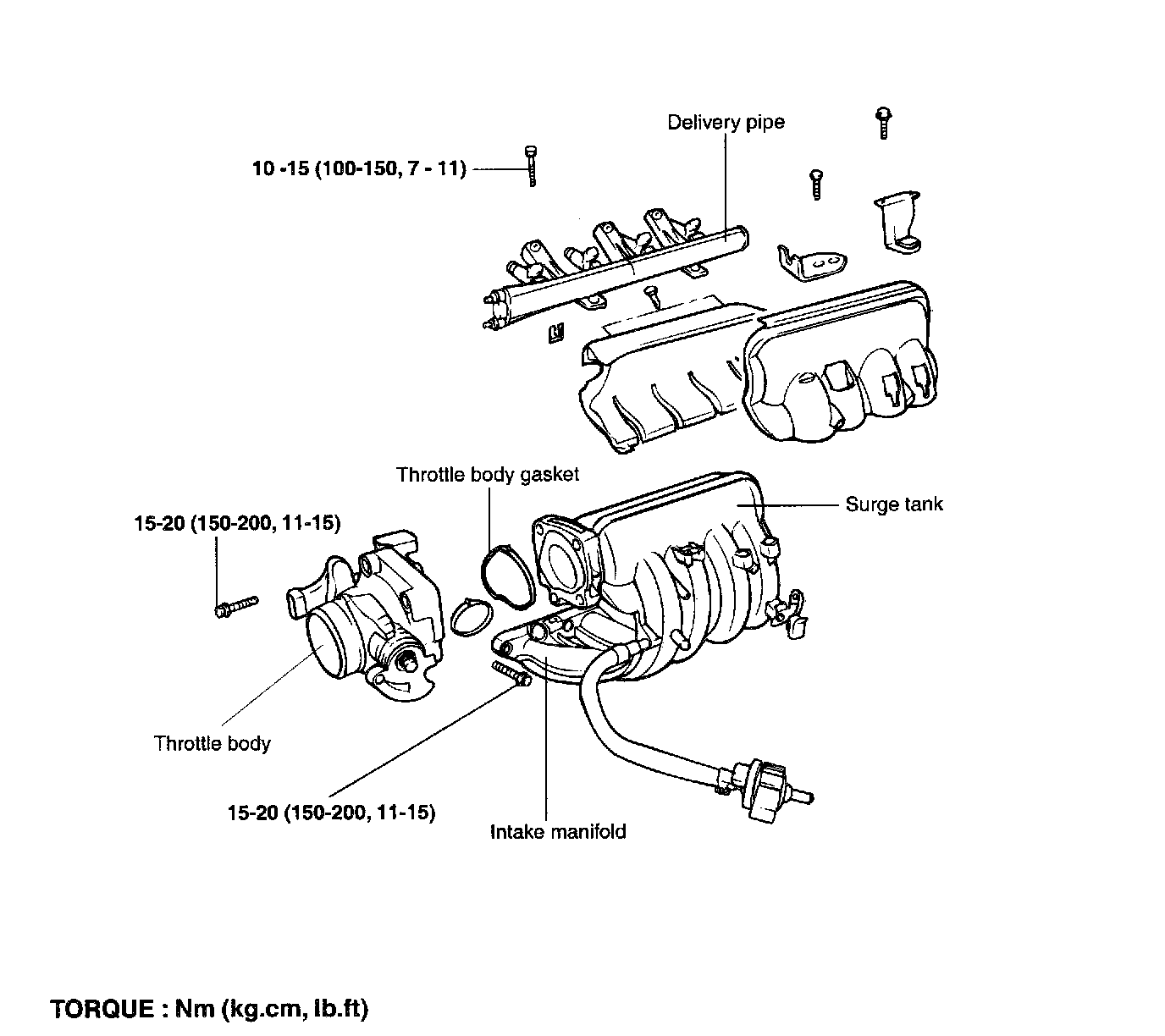

Intake Manifold

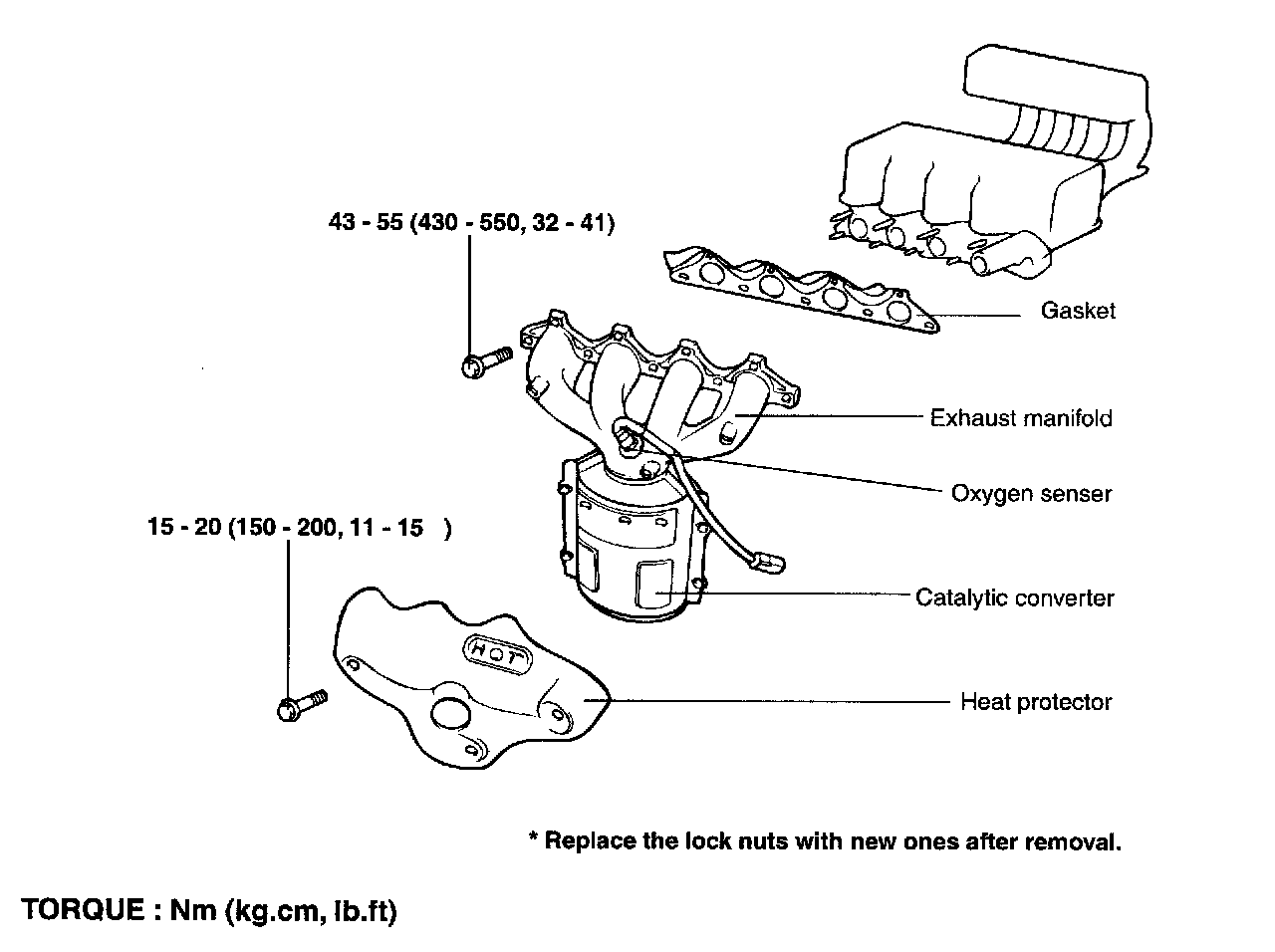

Exhaust Manifold
