Drive (First)

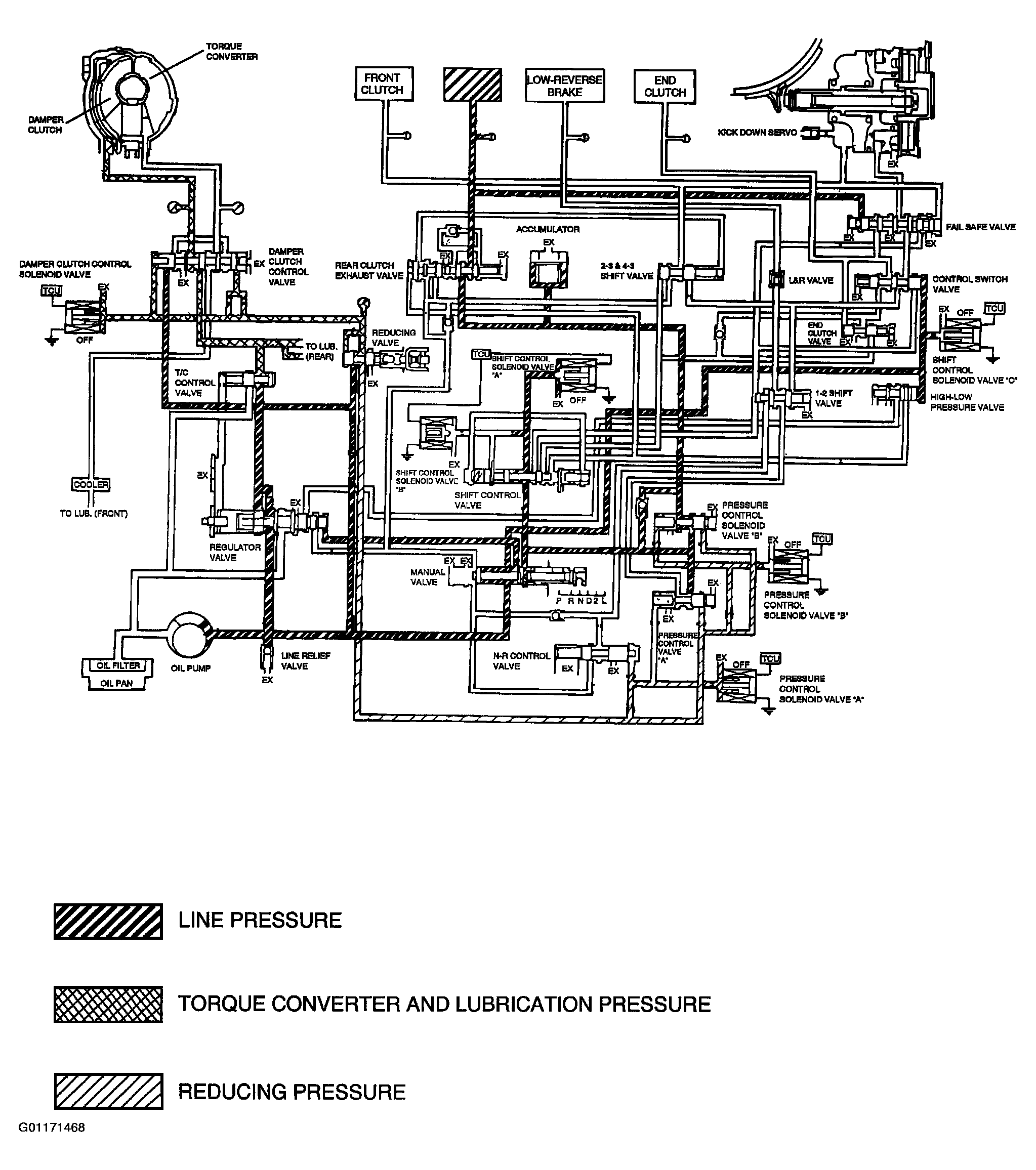

Fig 1: Automatic Transaxle Hydraulic Circuit - Drive (First)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
