Connector Locations

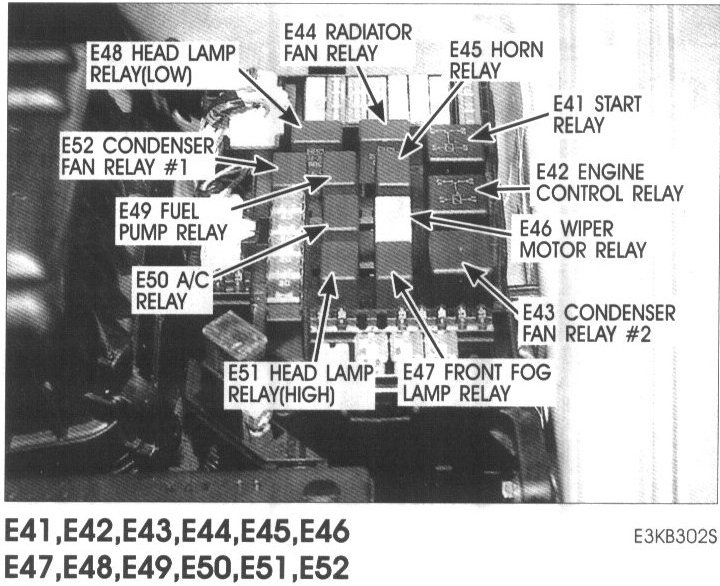

E41 Start Relay, E42 Engine Control Relay, E43 (#2), E52 (#1) Condenser Fan Relay, E44 Radiator Fan Relay, E45 Horn Relay, E46 Wiper Motor Relay, E47 Front Fog Lamp Relay, E48 (Low), E51 (High) Head Lamp Relay , E49 Fuel Pump Relay, E50 A/C Relay:
