A/T Technical Data

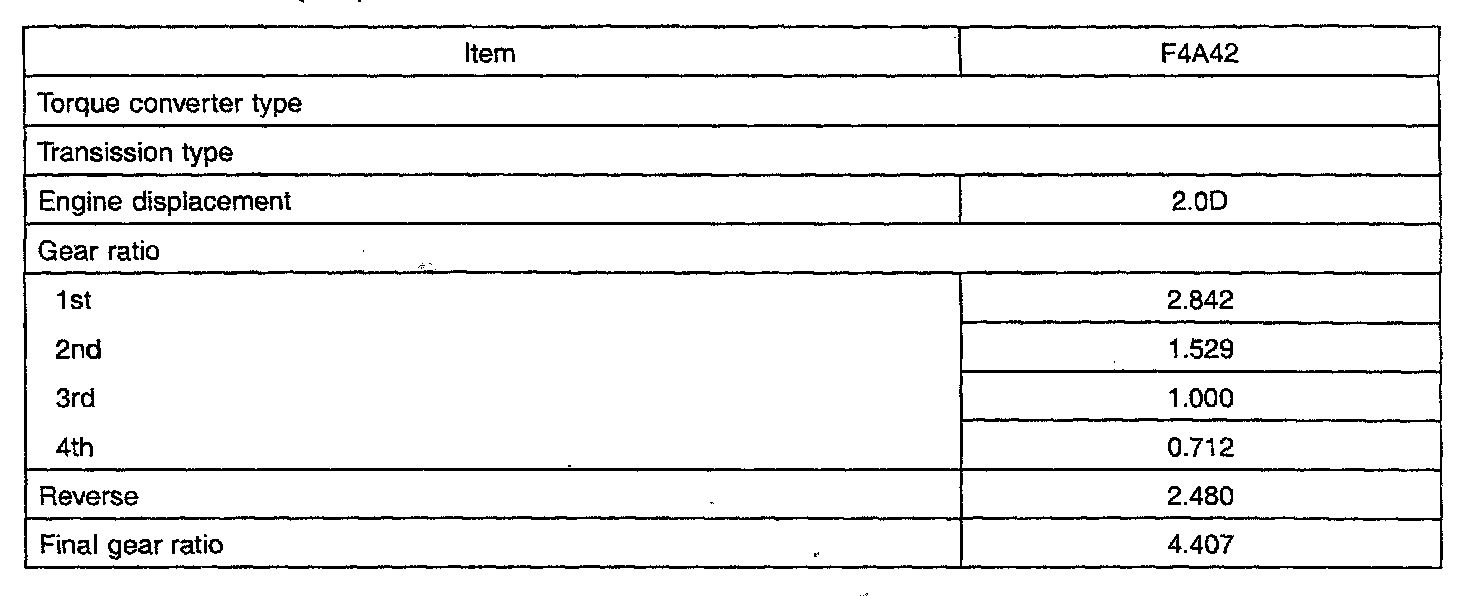

F4A42 4-spd A/T, Transmission Gear Ratios:

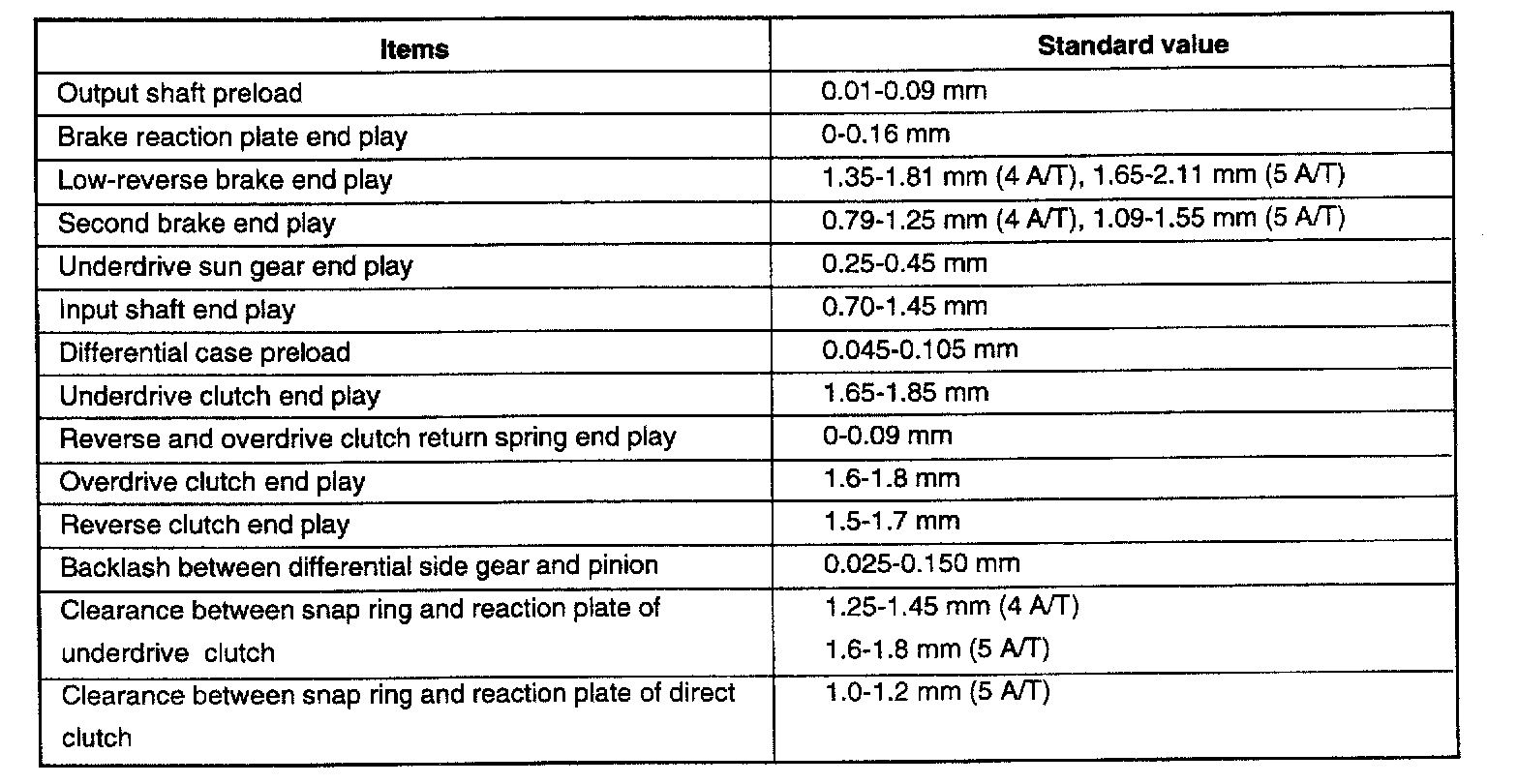

F4A42 4-spd/F5A51 5-spd A/T, Transaxle Standard Values:

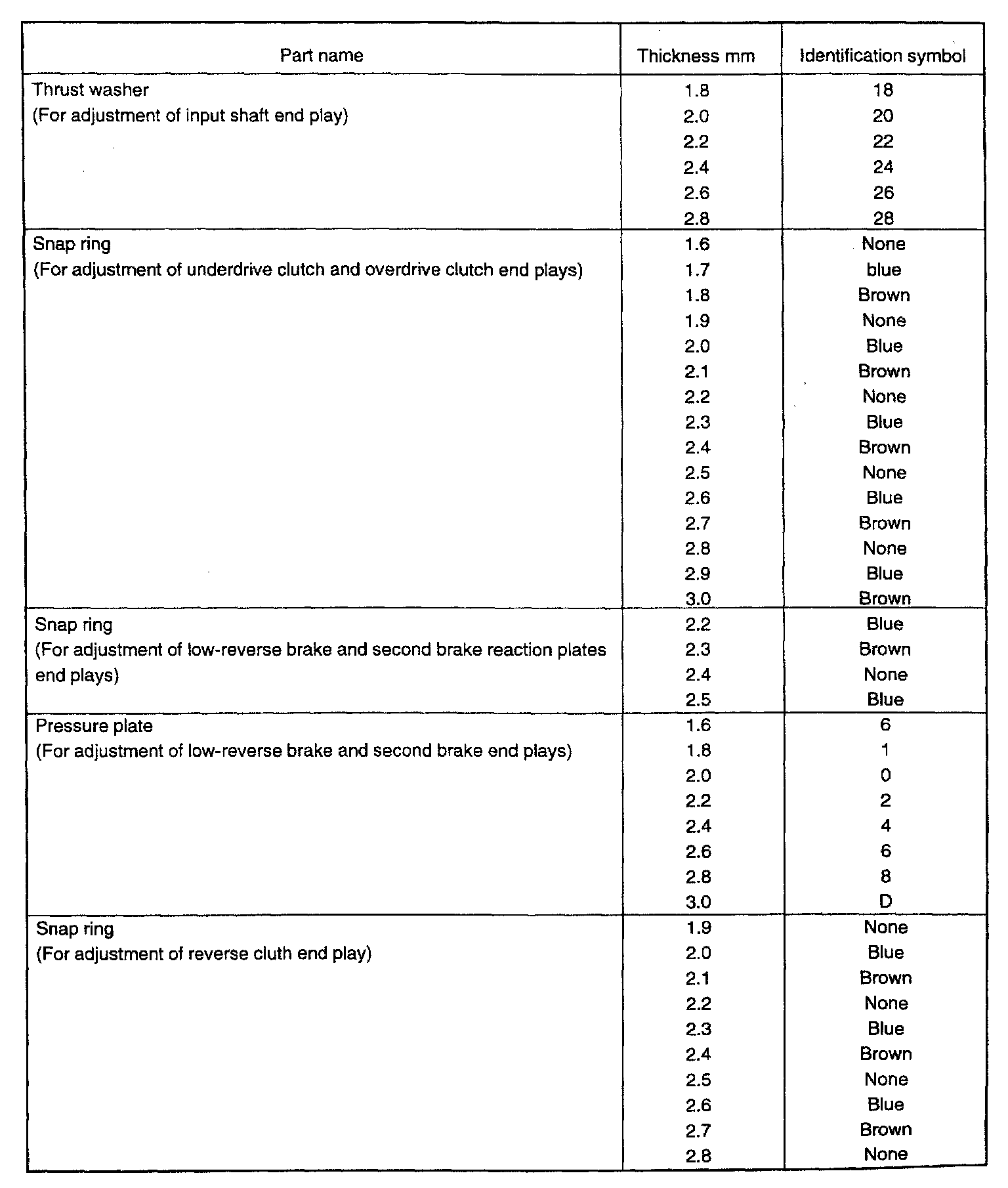

F4A42 4-spd/F5A51 5-spd A/T, Transmission End Plays:

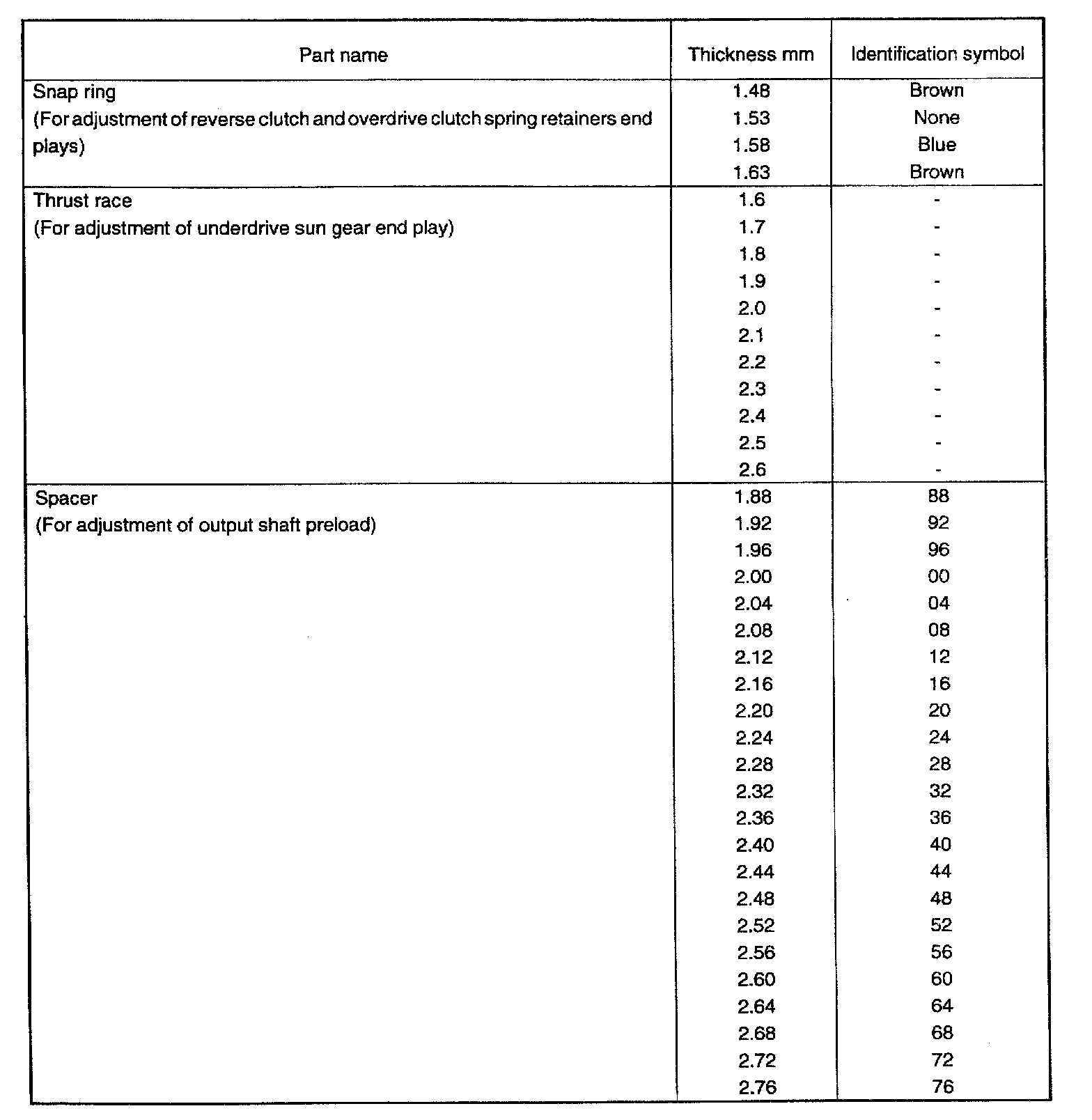

F4A42 4-spd/F5A51 5-spd A/T, Transmission End Play & Preload:

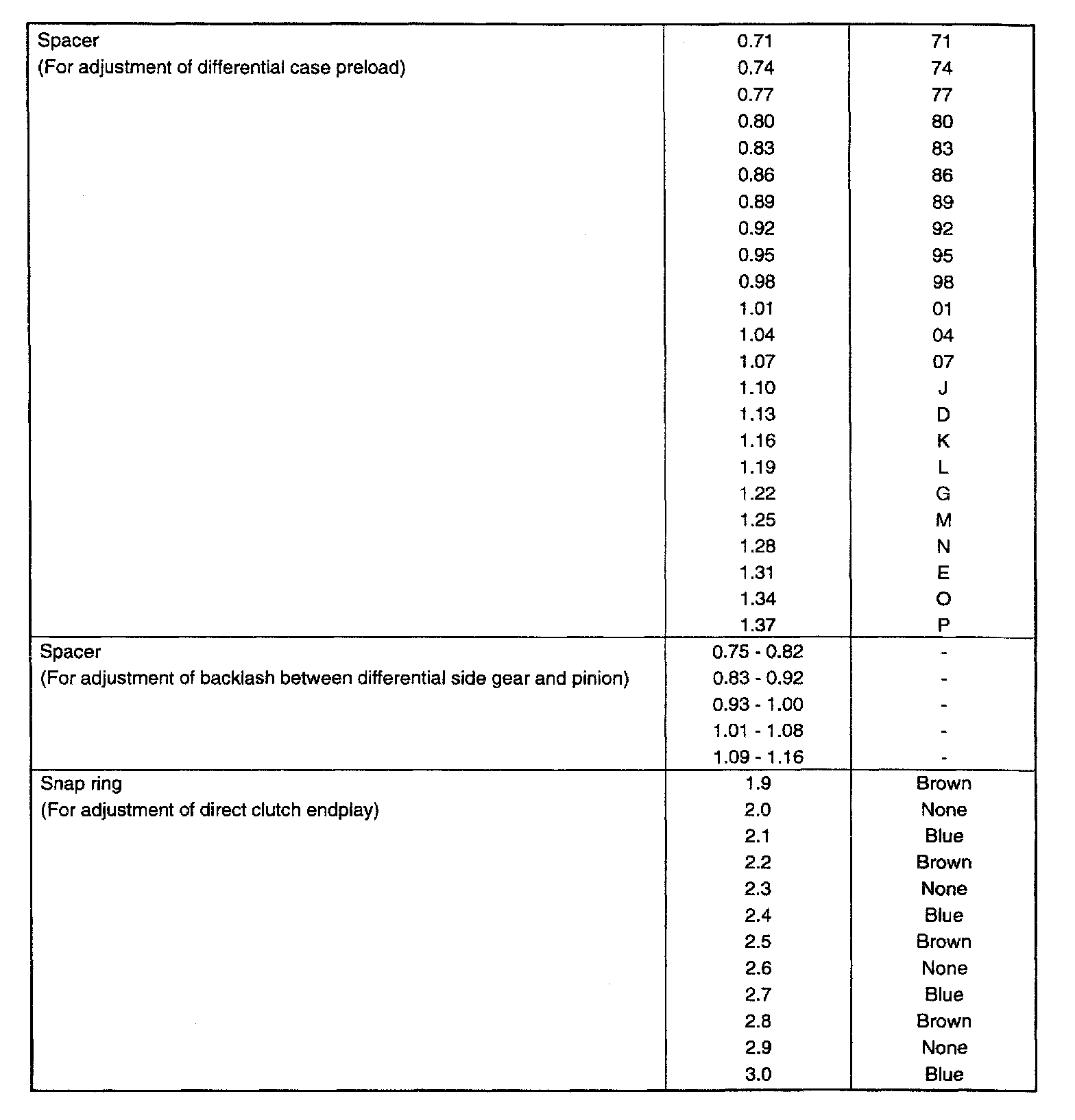

F4A42 4-spd/ F5A51 5-spd A/T, Differential Preload & Backlash:
