Tightening Torque Specifications

TIGHTENING TORQUE

Part 1:

1 of 3

Part 2:

2 of 3

Part 3:

3 of 3

Oil Pump
Front Case 20 - 27 Nm (200 - 270 kg.cm, 14 - 20 ft. lb)


SEQUENCES

Cylinder Head

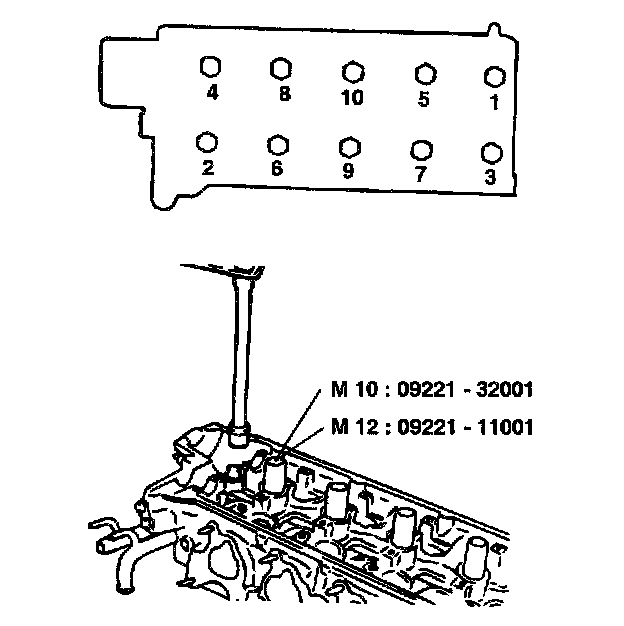

Removal




Installation

Main Bearing Caps
Center, No. 2, No. 4, front and rear main caps





Camshaft Bearing Cap Tightening Sequence

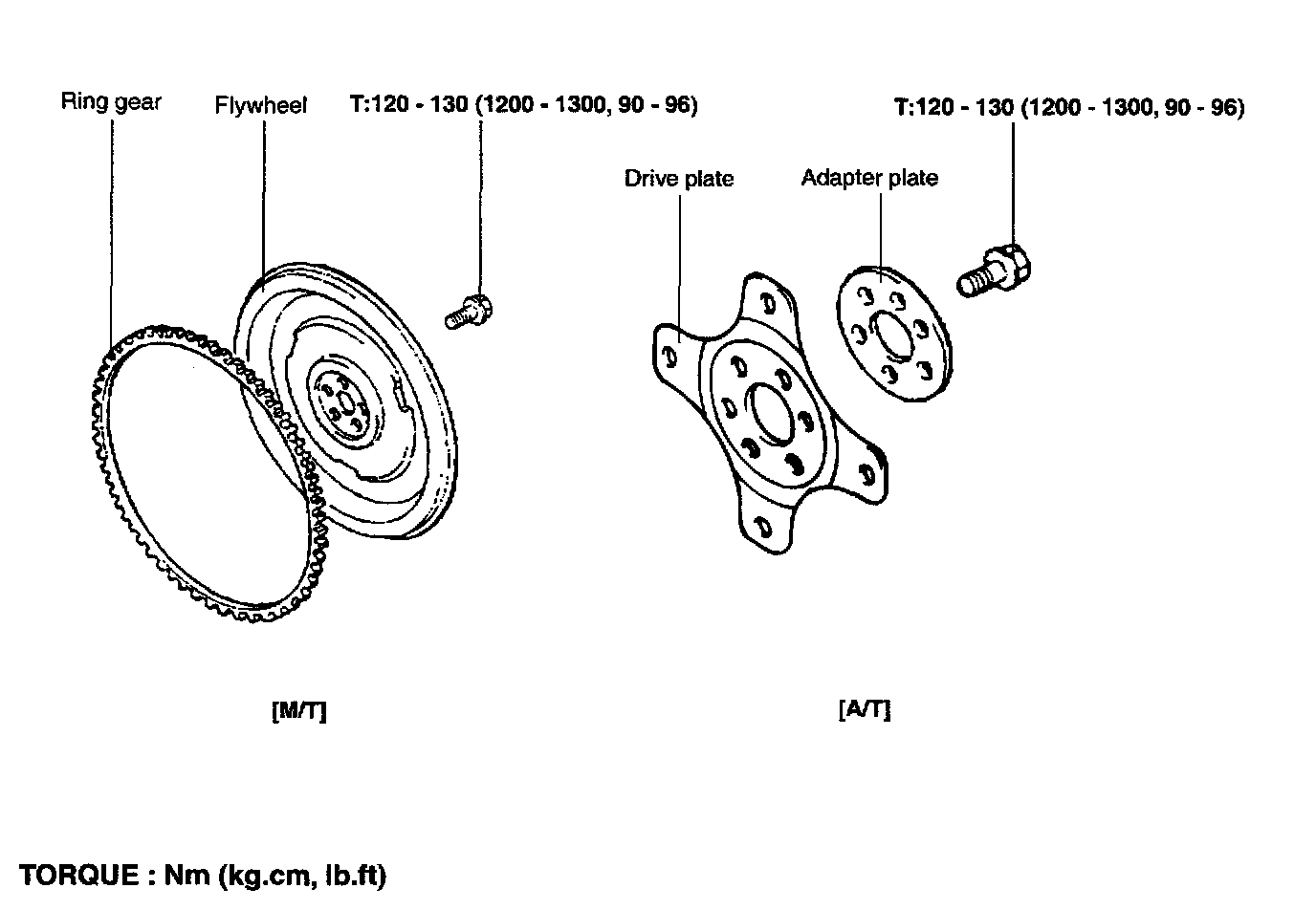

Flywheel/Flexplate





M/T: Manual Transmission Vehicles
A/T: Automatic Transmission Vehicles
