Connector Locations

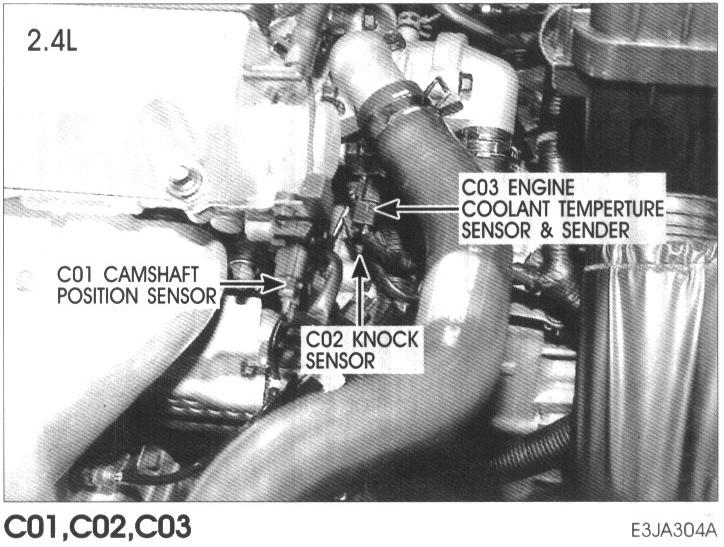

C01 Camshaft Position Sensor, C02 Knock Sensor, C03 Engine Coolant Temperature Sensor And Sender:
