A/T Technical Data

F4A51 4-spd A/T, Transmission End Plays:

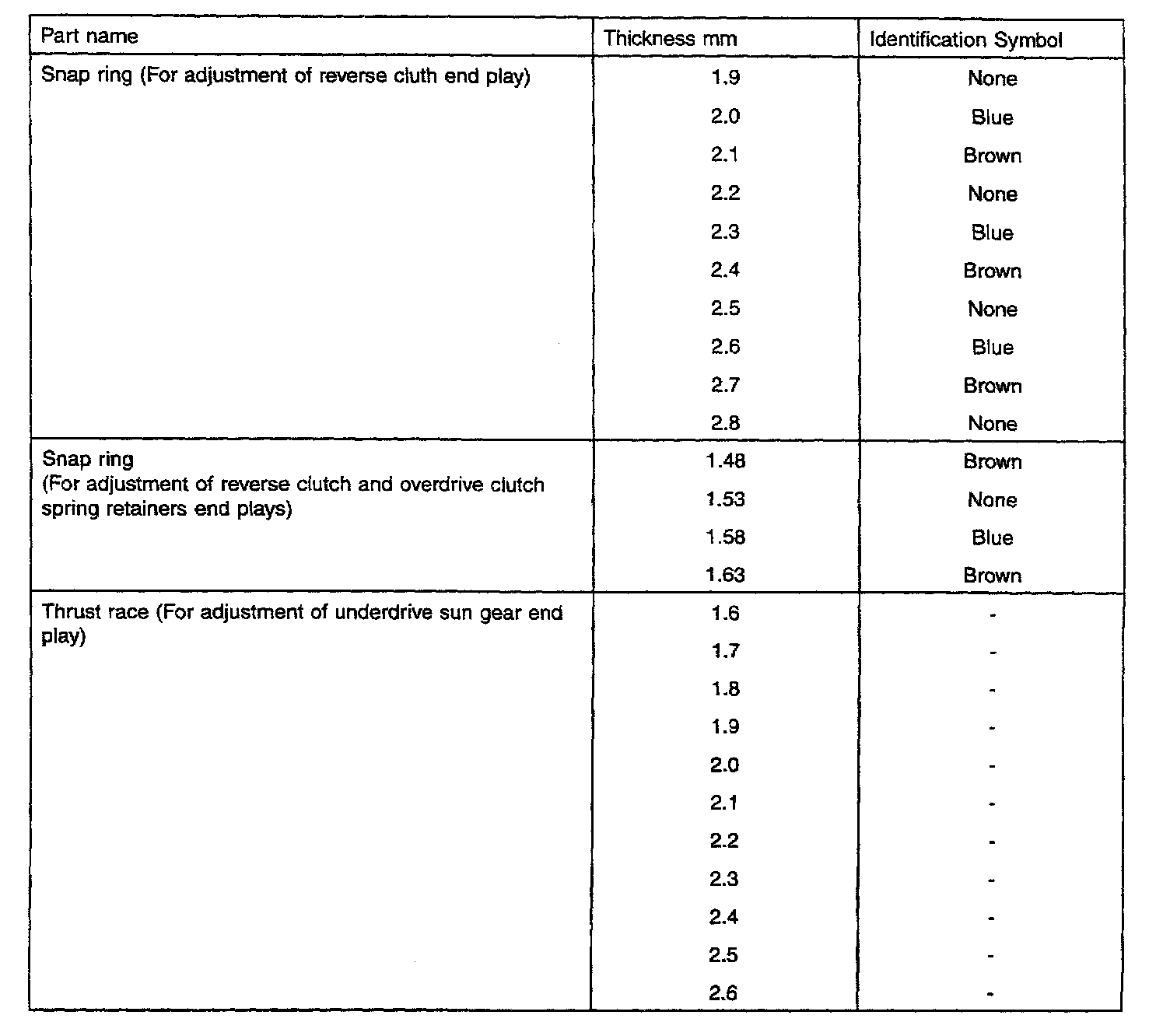

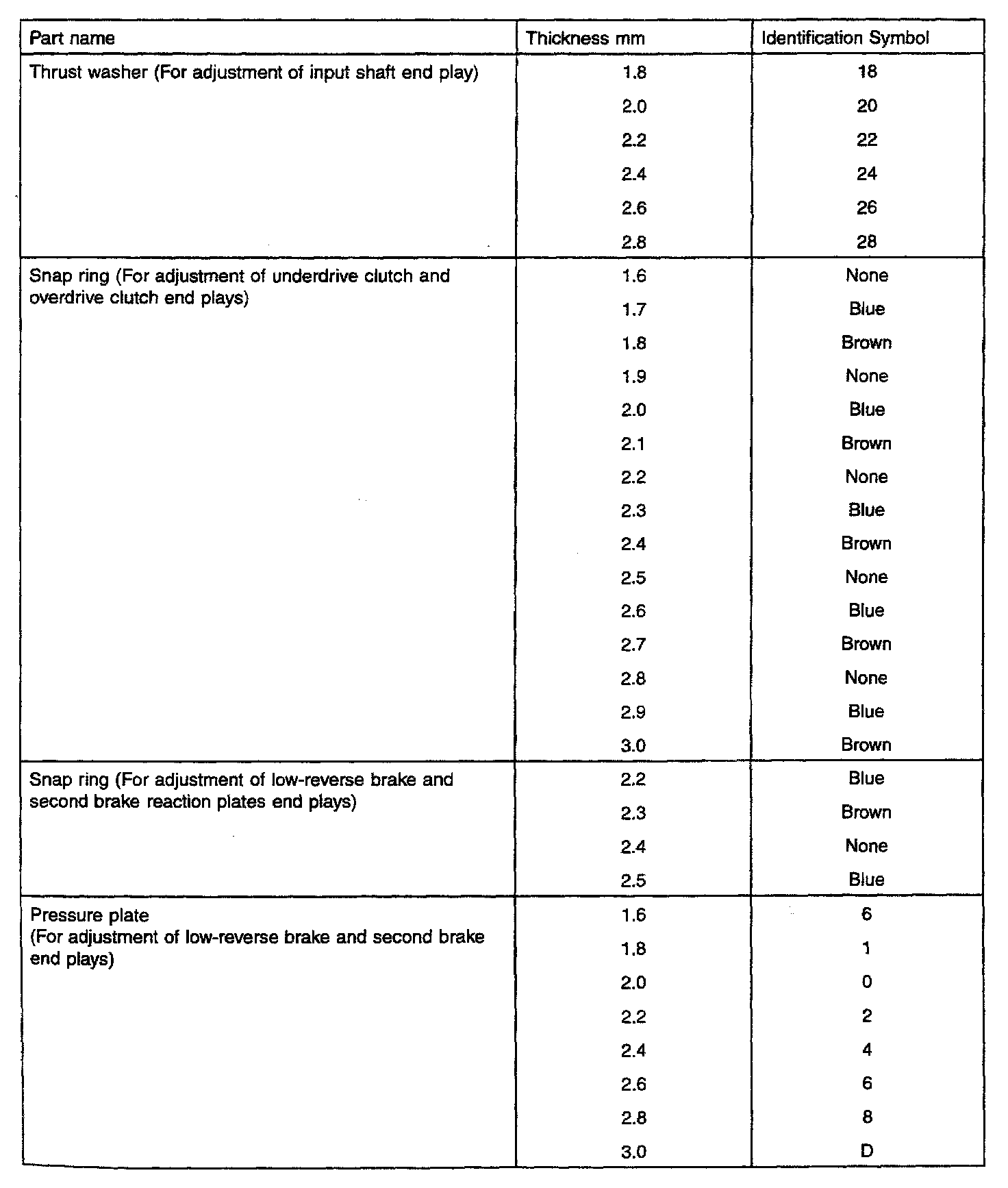

F4A51 4-spd A/T, Transmission End Play:

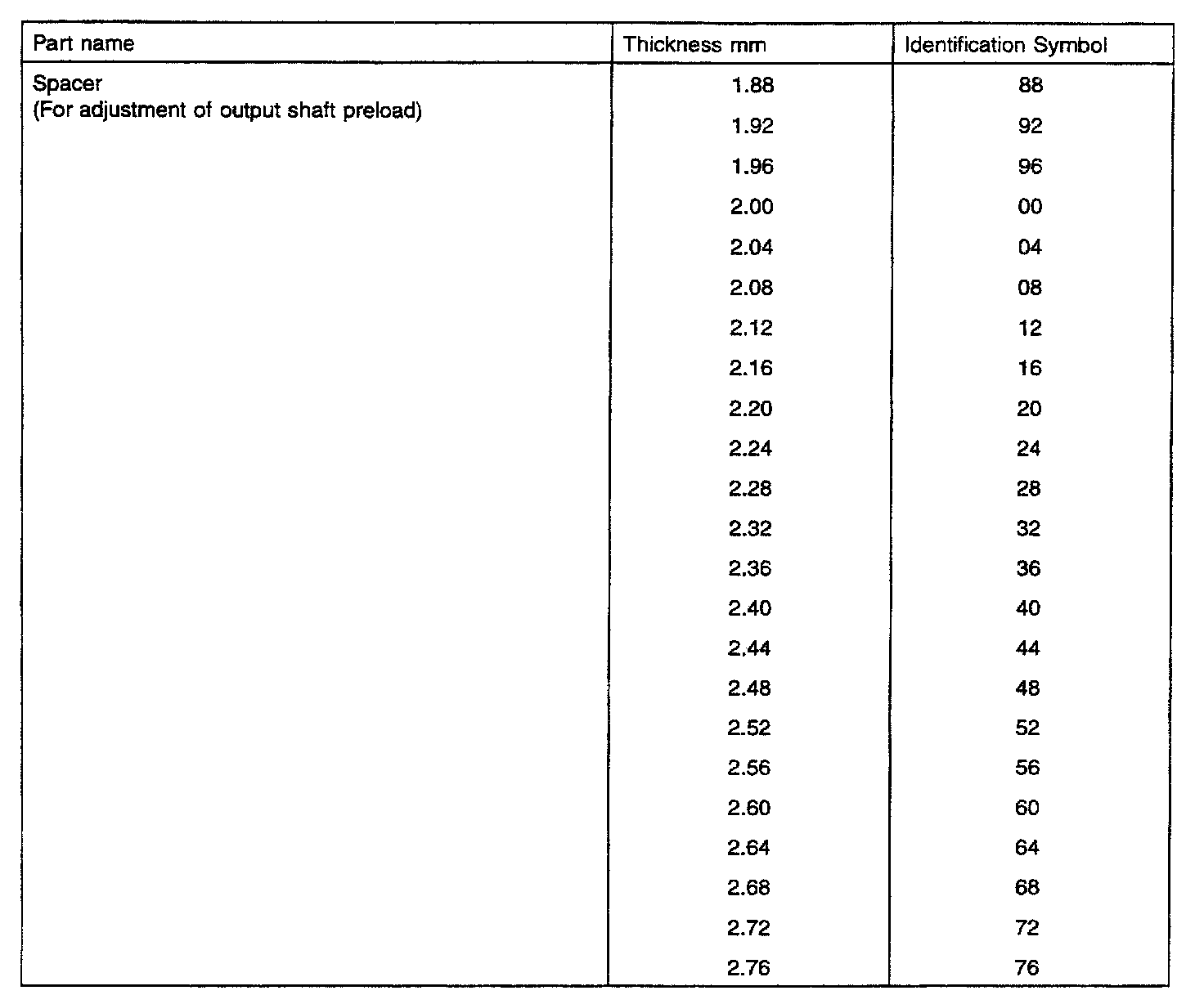

F4A51 4-spd A/T, Transmission Preload:

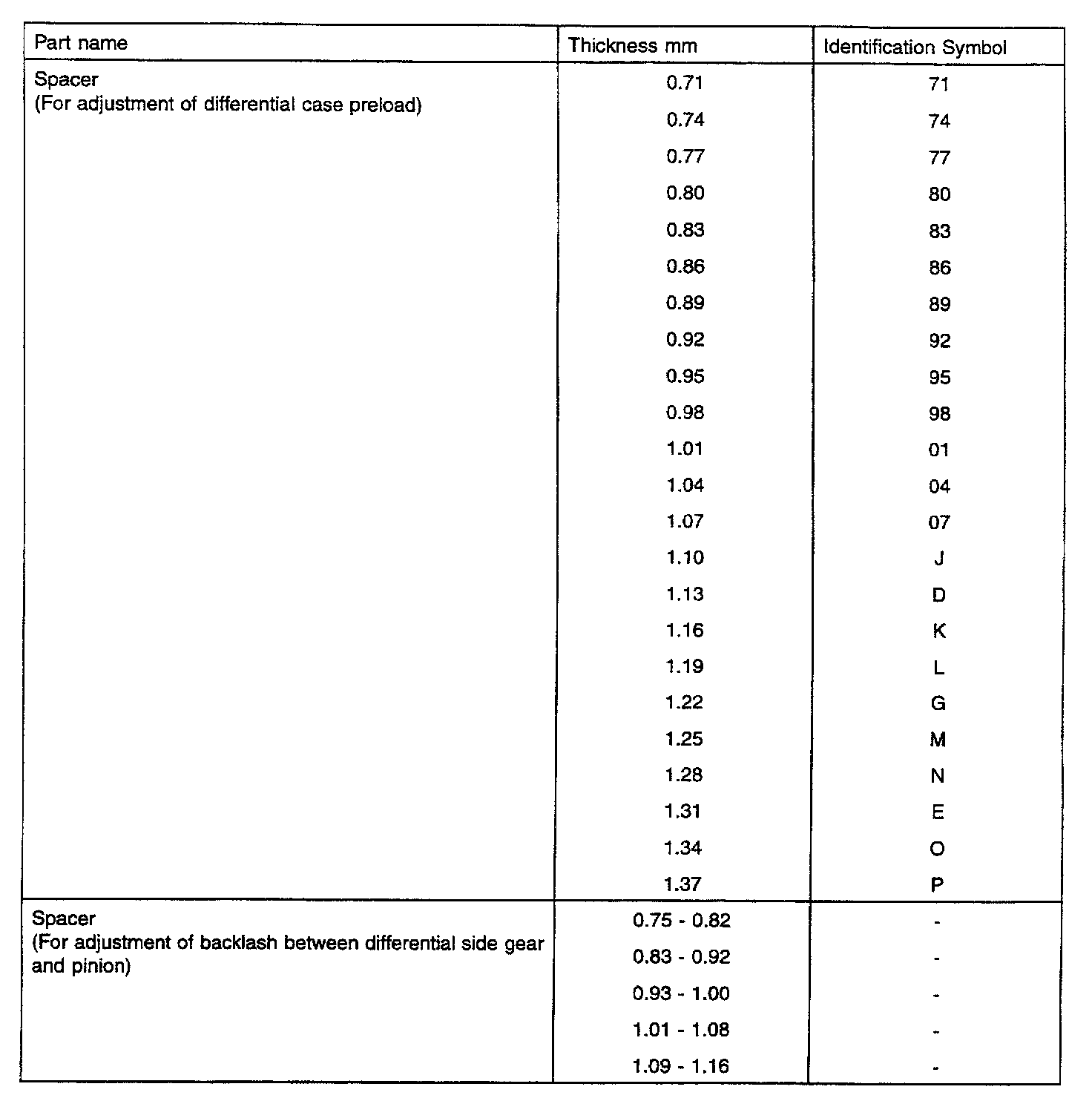

F4A51 4-spd A/T, Transmission Differential Case Preload & Backlash:

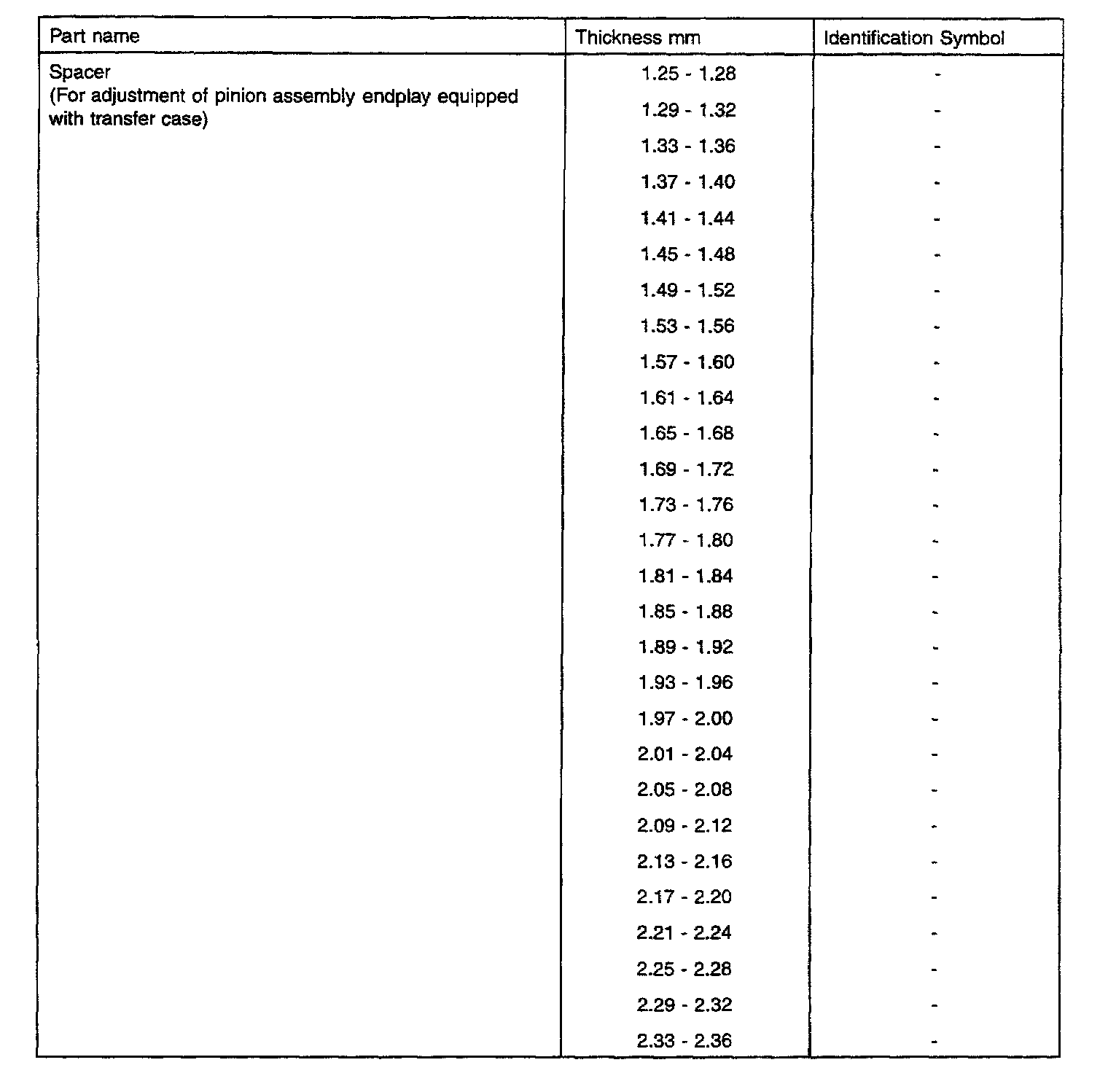

F4A51 4-spd A/T, Pinion Assembly End Play With Transfer Case:

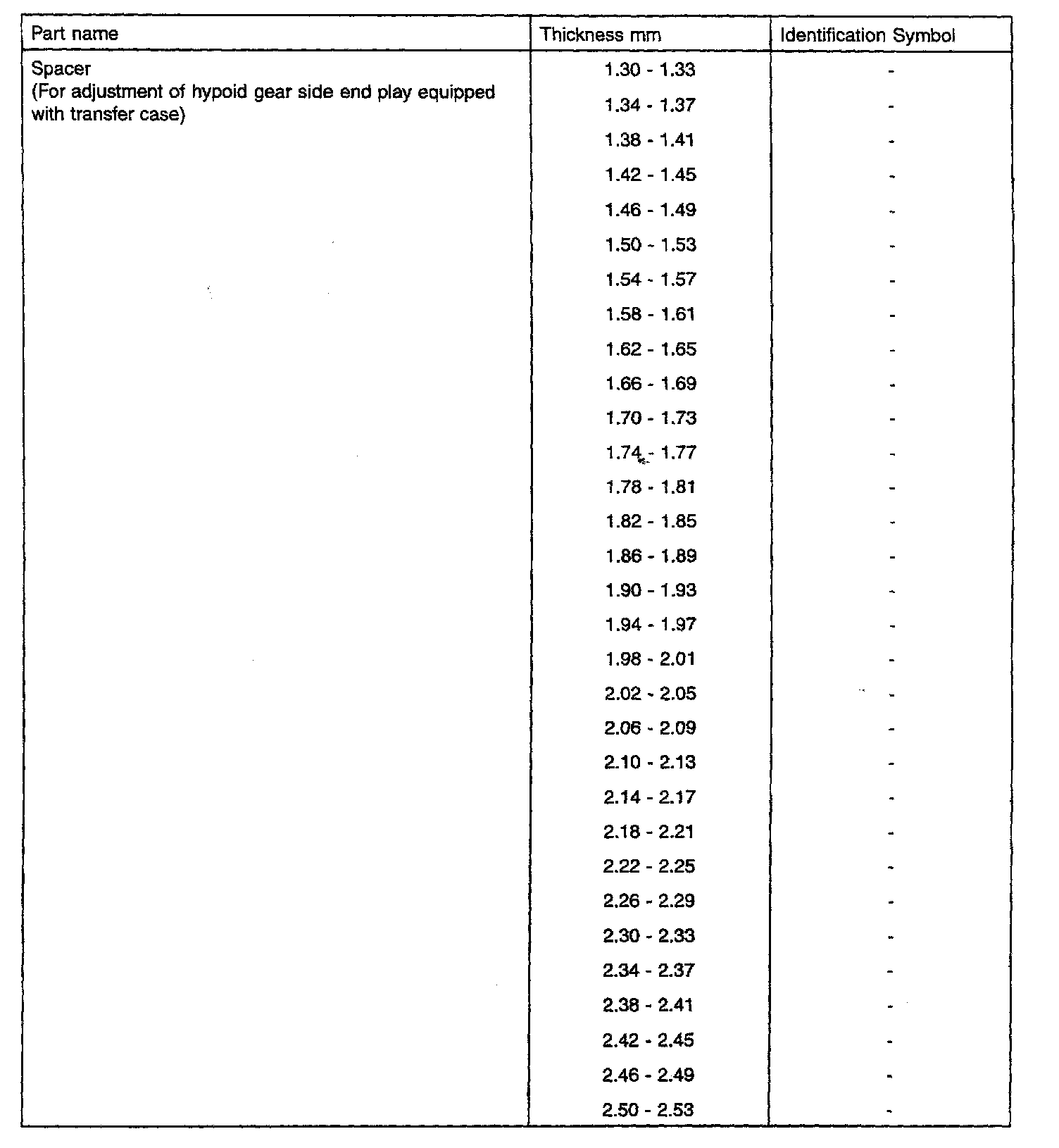

F4A51 4-spd A/T, Hypoid Gear End Play With Transfer Case:

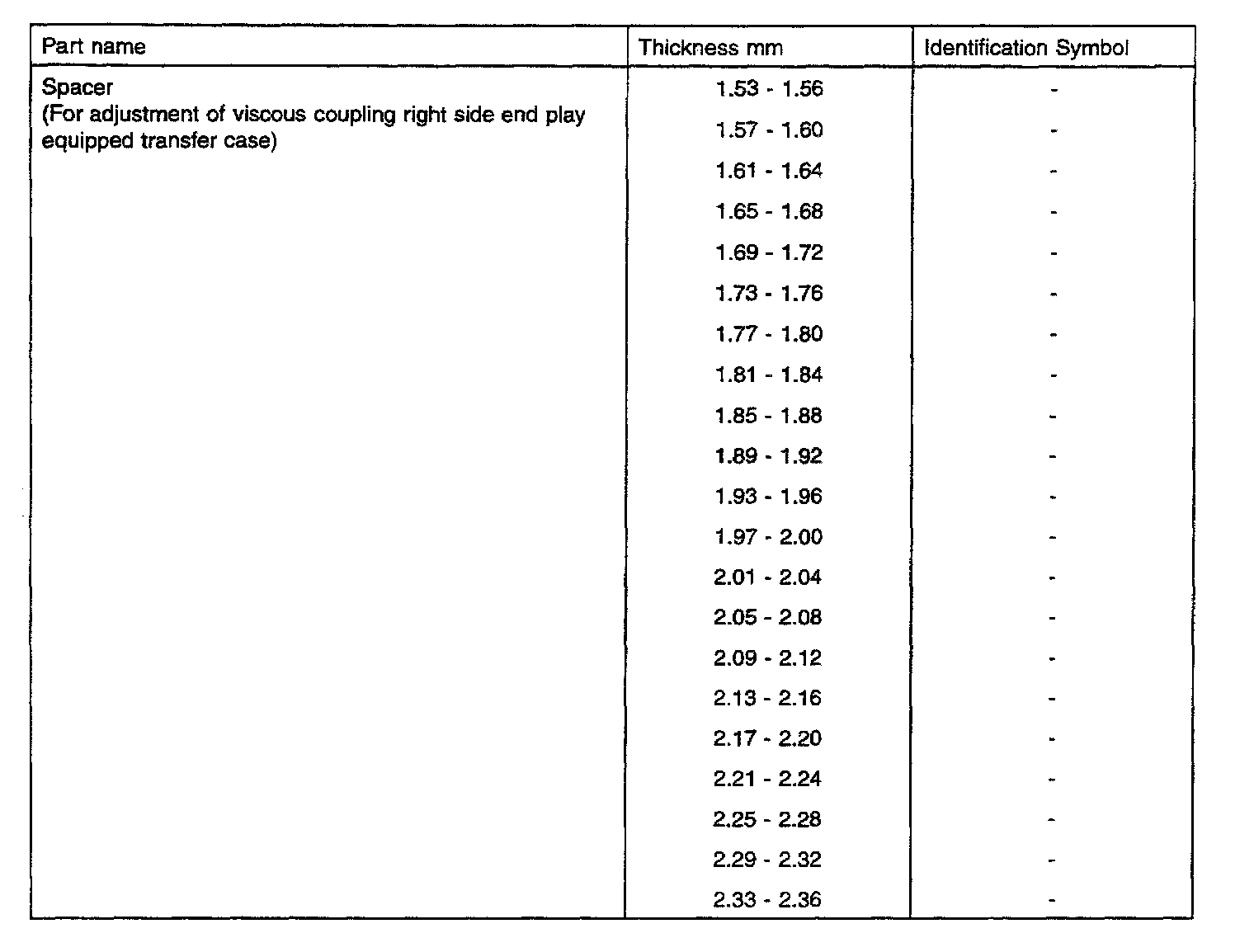

F4A51 4-spd A/T, Viscous Coupling End Play With Transfer Case:

Flex Plate
Torque 130 - 140 Nm
