Differential Torque Data

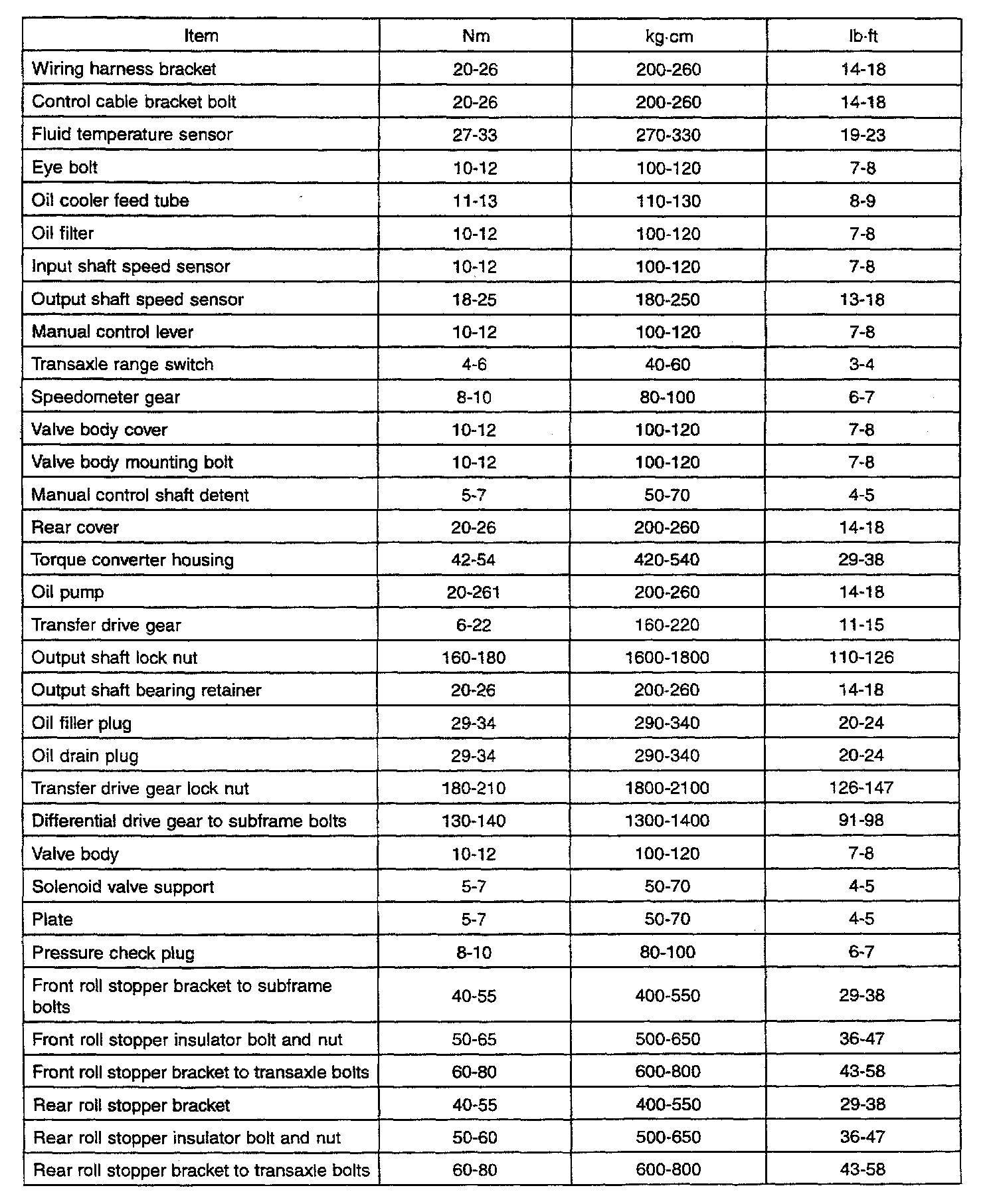

F4A51 4-spd A/T, Transaxle/Transfer/Differential Torque:

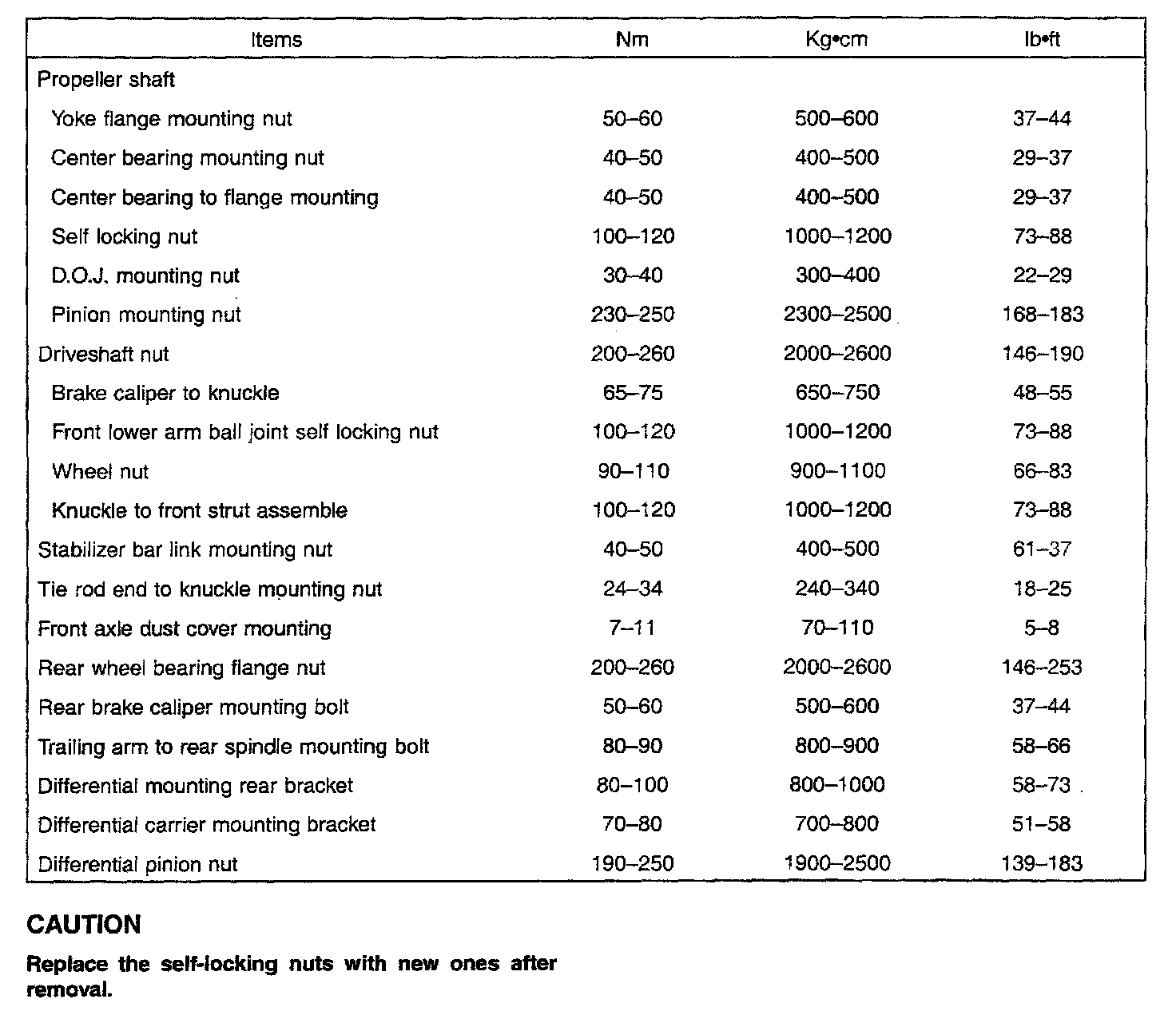

M/T & A/T Differential Torque:
