General Torque Specifications

TIGHTENING TORQUE

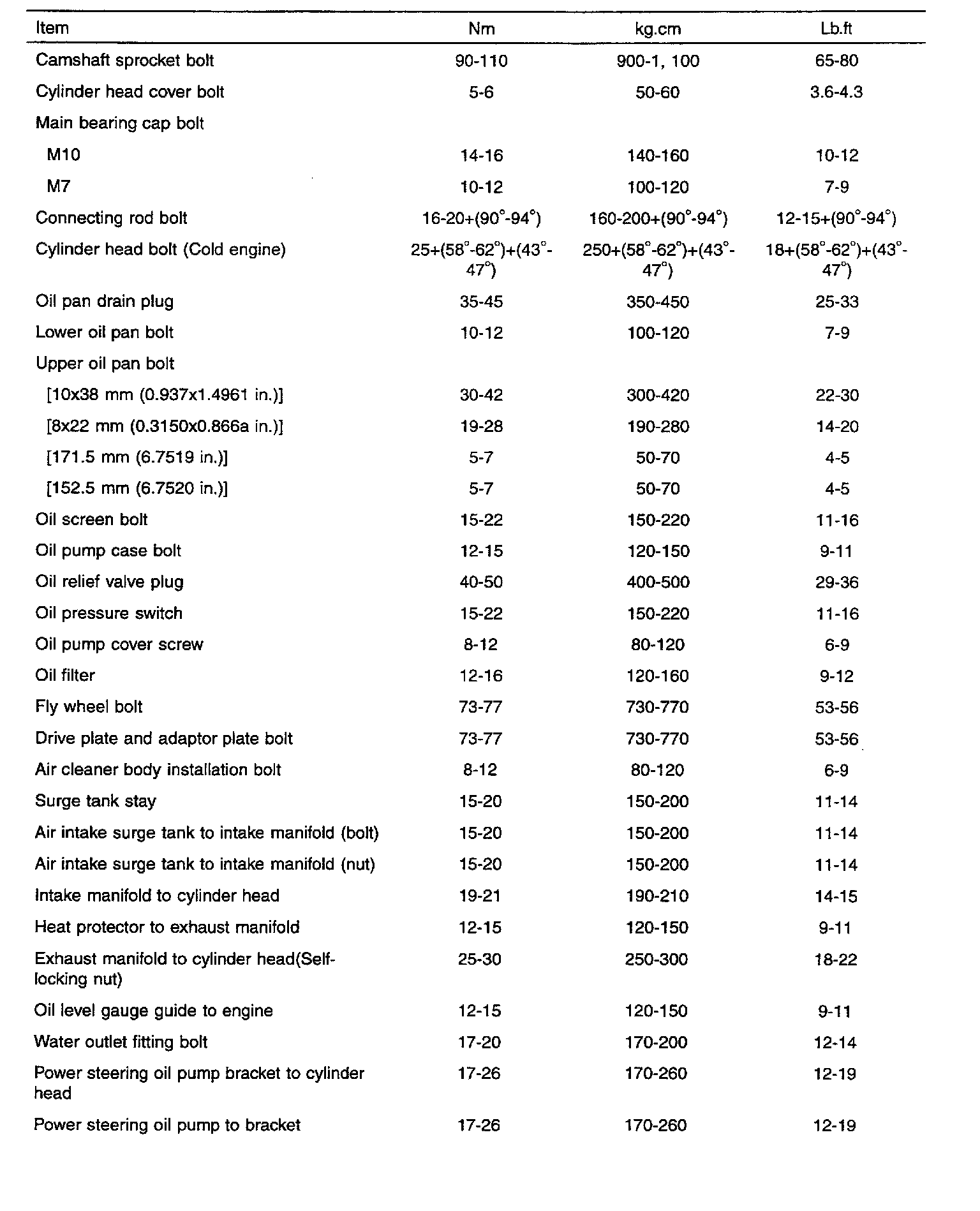

1 of 3

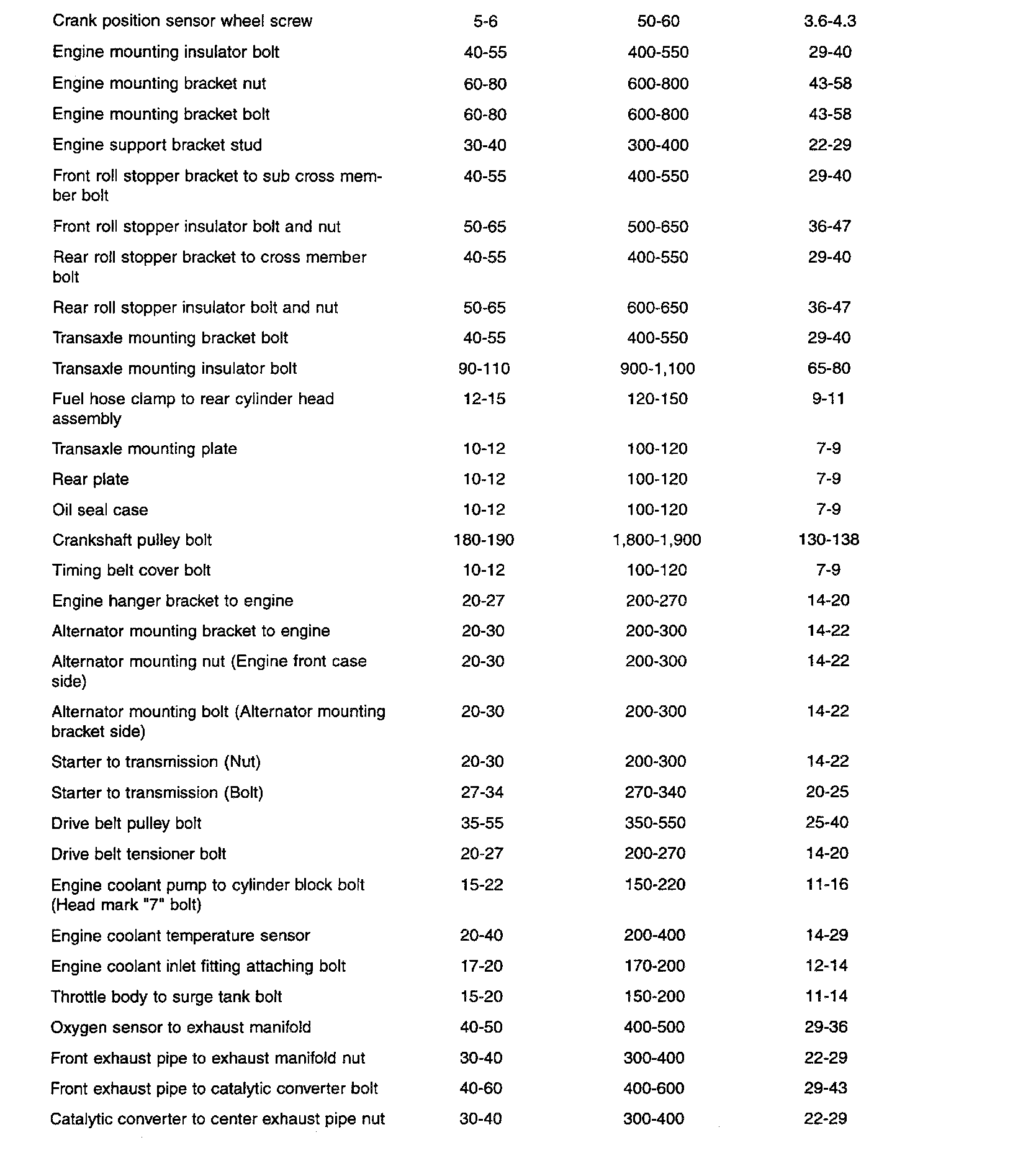

2 of 3

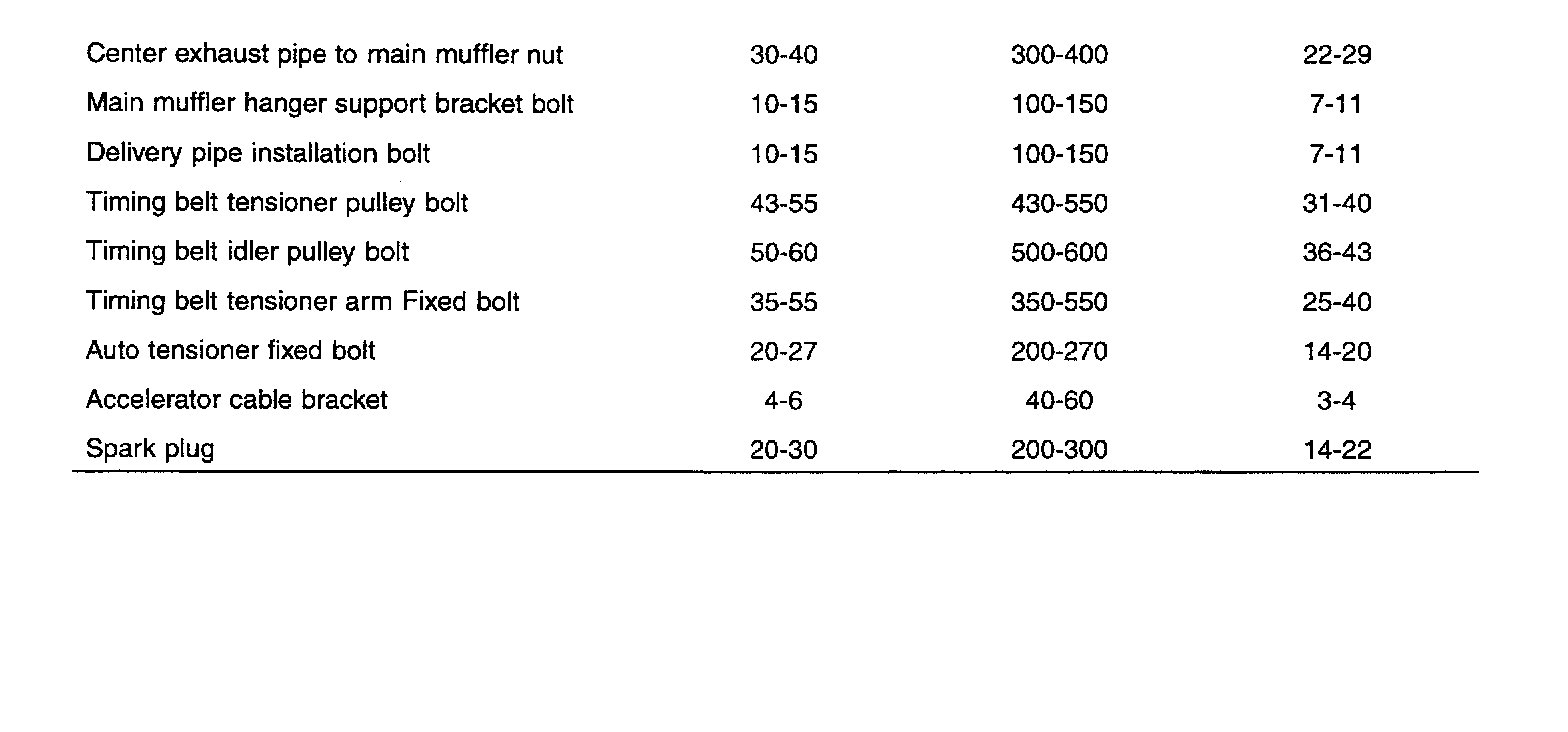

3 of 3

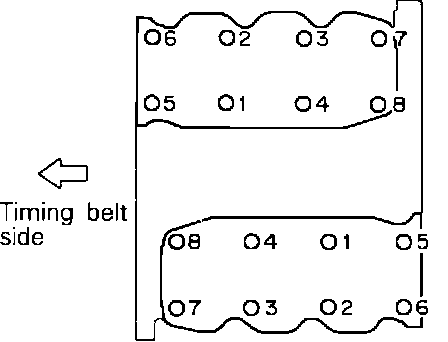

Fig. 14 Cylinder Head Bolt Tightening Sequence:





Cylinder Head Tightening Sequence

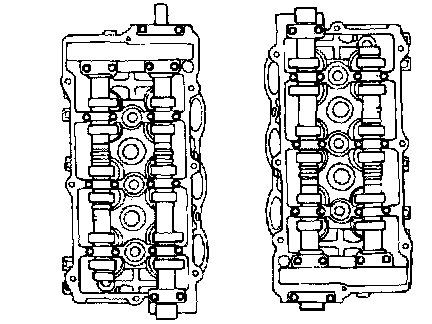

Camshaft Bearing Cap Tightening Sequence
