Manual Transaxle Control: Removal

  1. Remove the console assembly.
  2. Remove the self locking pin and clips (shift lever side).
  3. Remove the shift lever assembly.
  4. Remove the retainer and bolts.
  5. Remove the snap pin and clips (Transaxle side).
  6. Remove the shift cable and select cable.

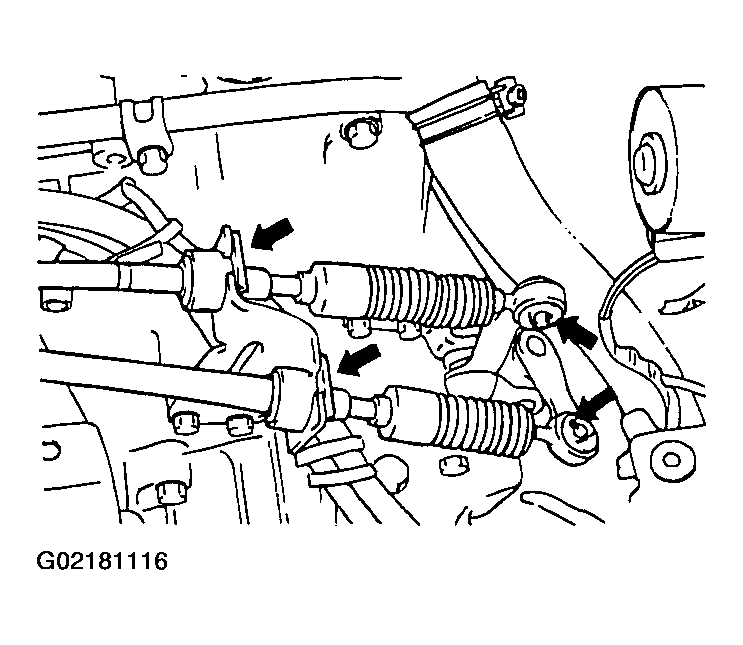

    Fig 1: Removing Shift Cable & Select Cable
    G02181116
