Manual A/C Compressor Controls

MANUAL A/C

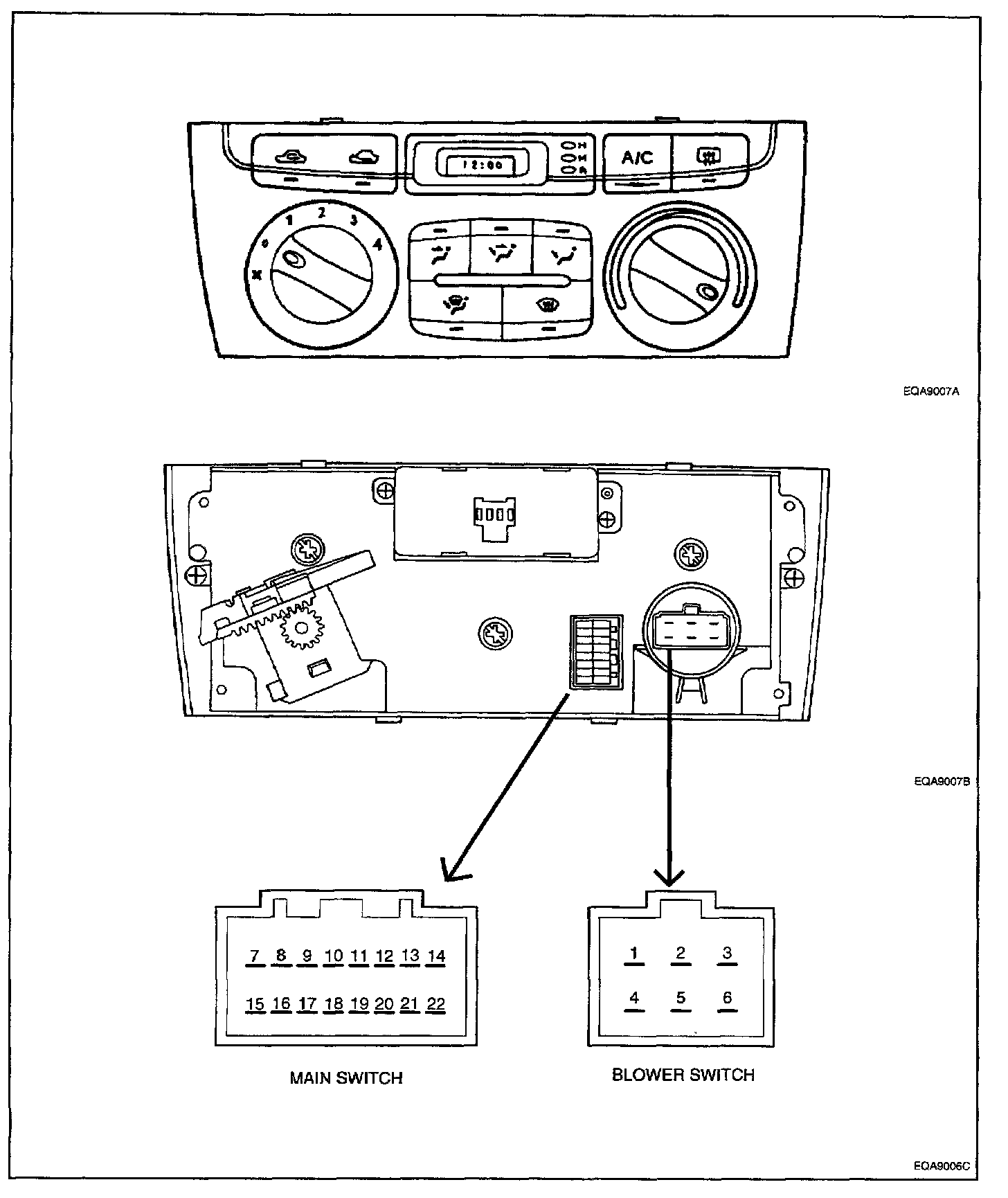

Manual A/C Control Panel Assembly - Rotary Type:

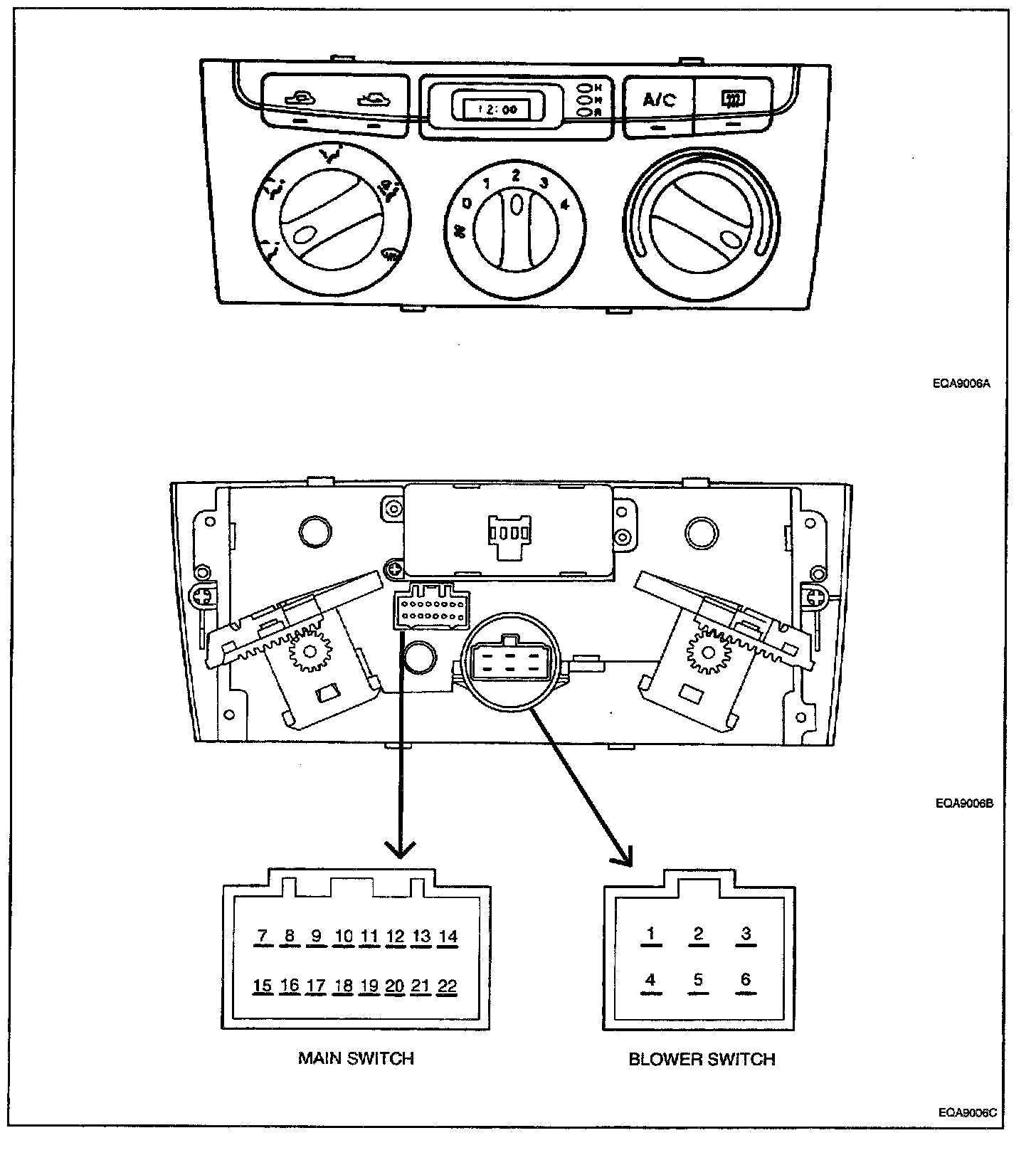

Manual A/C Control Panel Assembly - Rotary And Push Button Type:

CHECKING CONTROL PANEL ASSEMBLY

BLOWER SWITCH

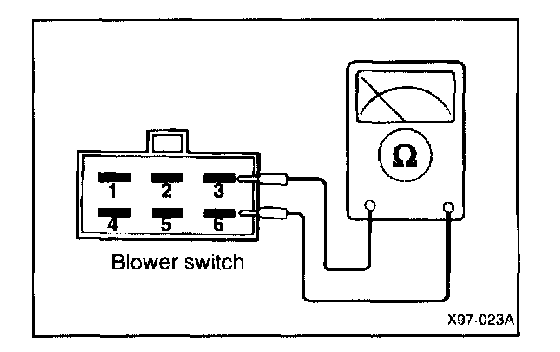

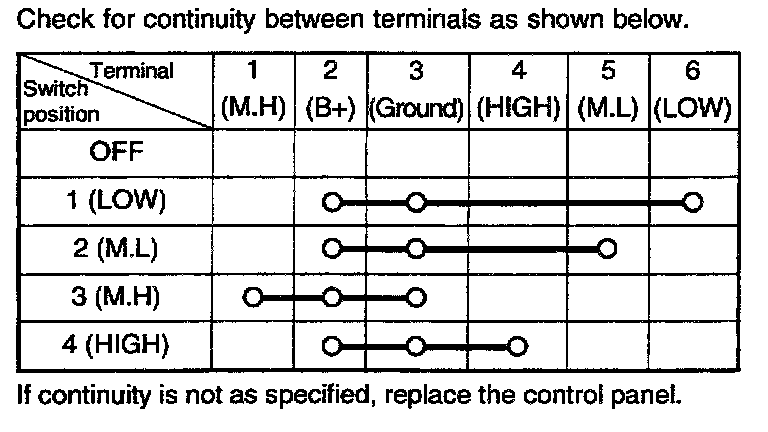

Blower Switch:

AIR CONDITIONING SWITCH

Air Conditioning Switch Connector:

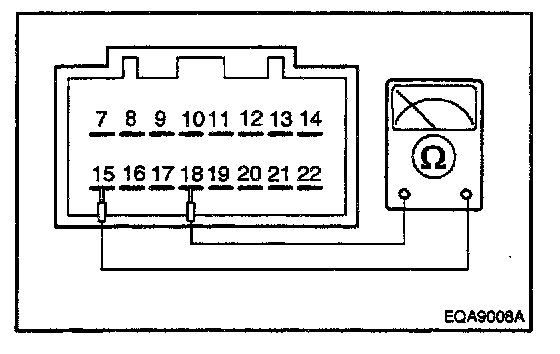

1. Check for continuity between terminals No.21 and No.22.


MODE CONTROL SWITCH

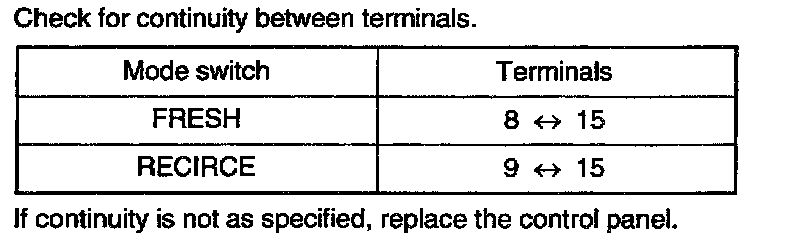

Mode Switch:

Air Conditioning Switch Connector:

(Rotary and push button type only)


FRESH RECIRC BUTTON

Fresh/Recirc Button:

Air Conditioning Switch Connector:
