Rear Wheel Speed Sensor

  1. Remove the rear seat cushion.
  2. Remove the rear pillar trim assembly.
  3. Remove the tire assembly.
    Fig 1: Identifying Rear Pillar Trim Assembly
    G02237903
  4. Remove the rear wheel speed sensor after disconnection the wheel speed sensor connector.

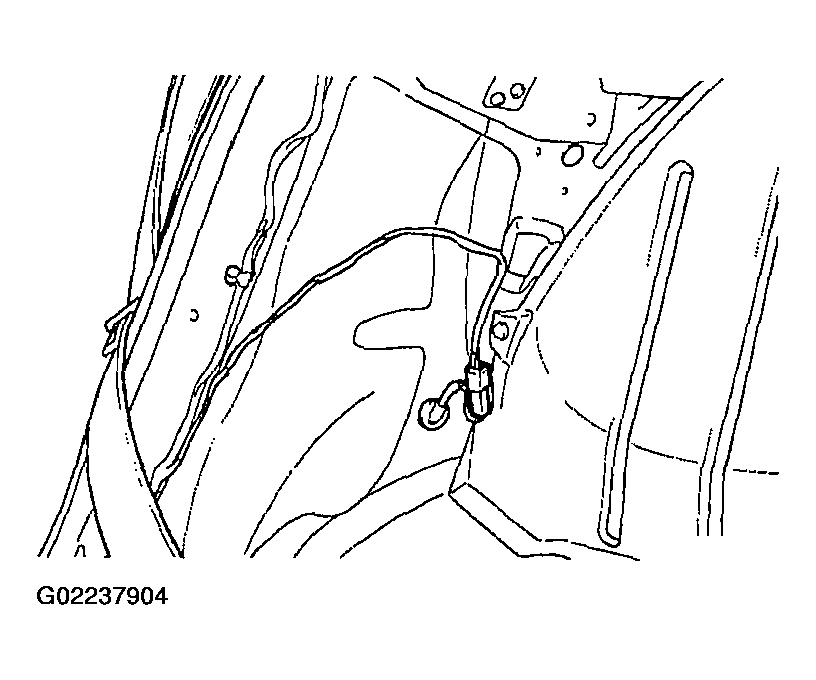

    Fig 2: Identifying Rear Wheel Speed Sensor Connector
    G02237904
