Element In Use At Each Position Of Selector Lever

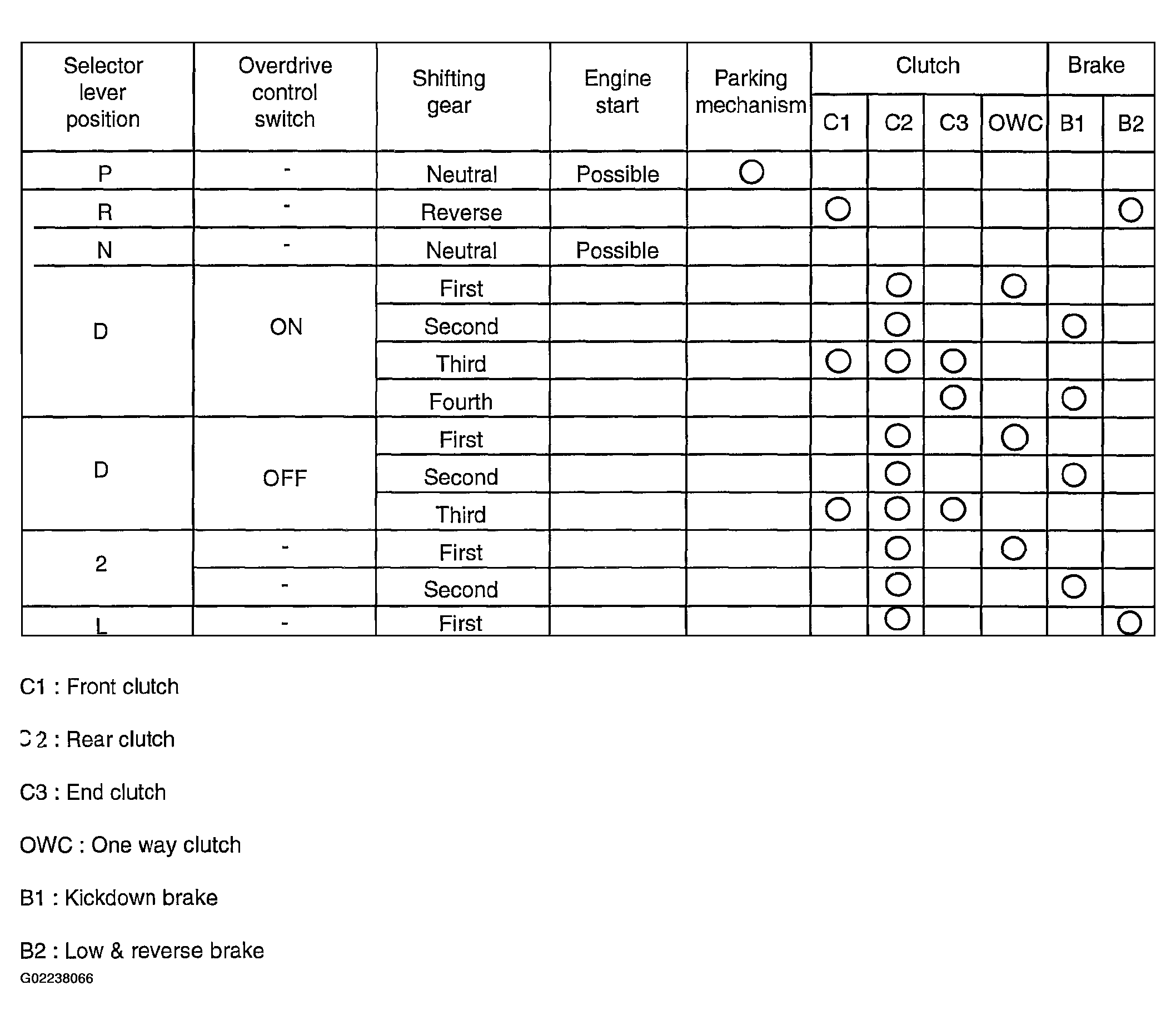

Fig 1: Element In Use At Each Position Of Selector Lever Table
G02238066
