Control Assembly: Service and Repair

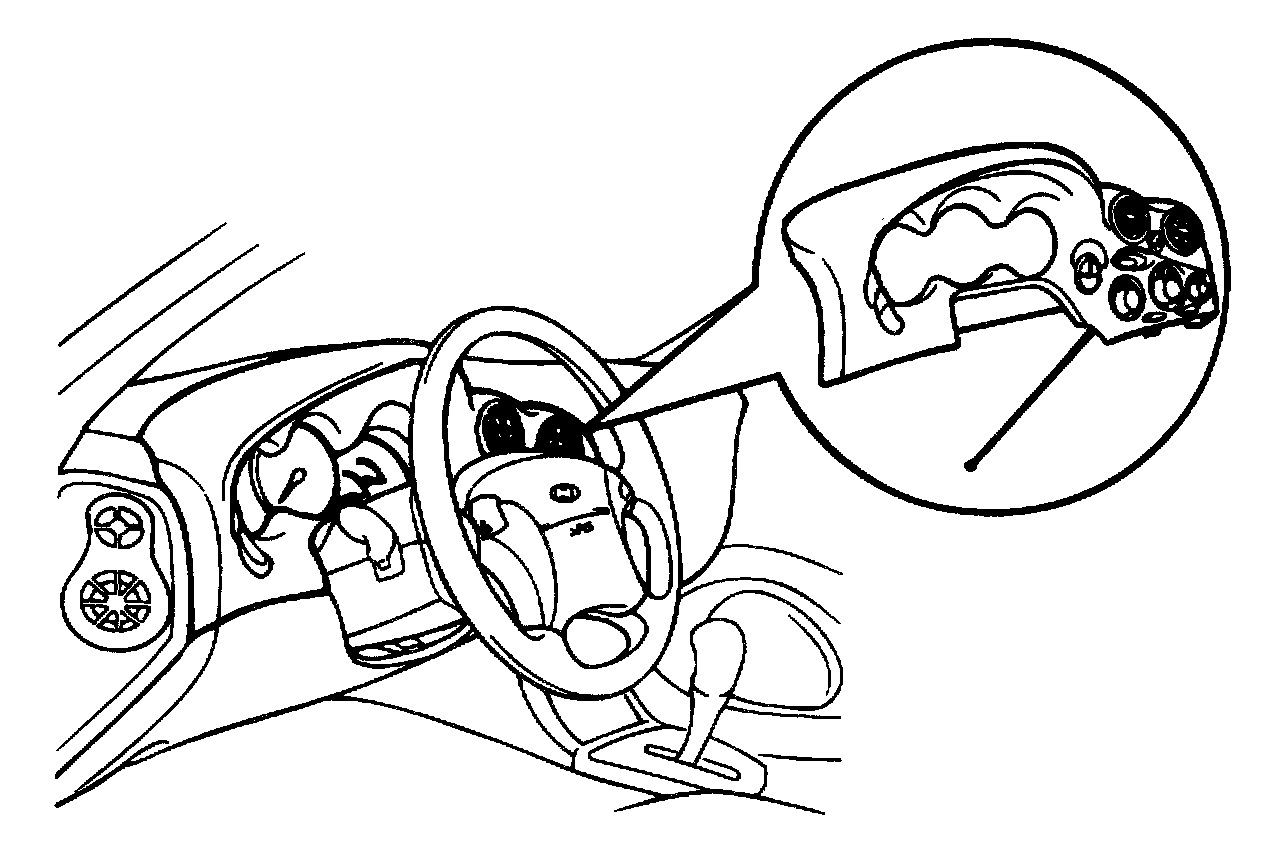

HEATER CONTROL PANEL ASSEMBLY





REMOVAL

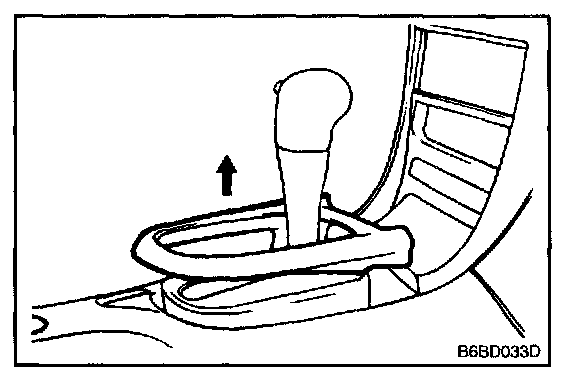

1. Remove the shift lever upper cover.




2. Remove the facia panel mounting screws.

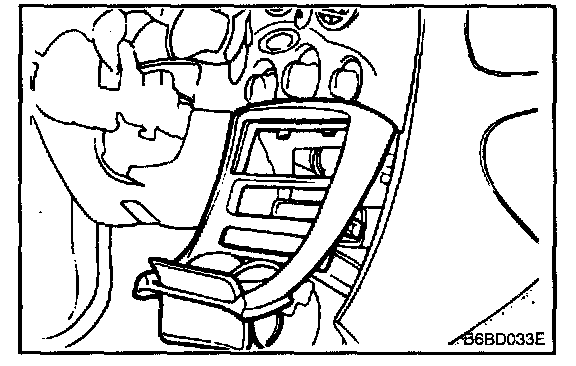

3. Remove the floor console mounting screws (4EA) and then, remove the floor console.

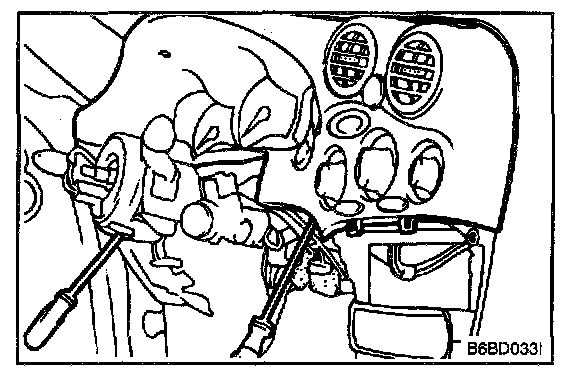

4. Disconnect the rheostat switch.

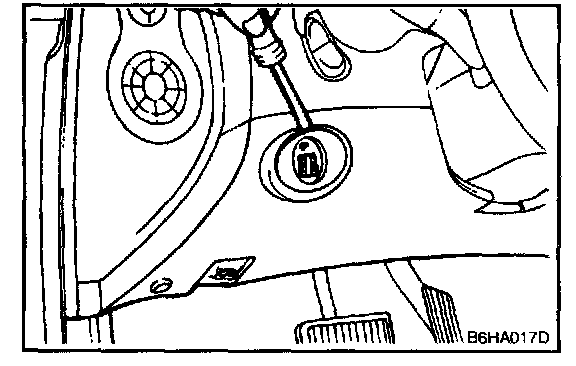

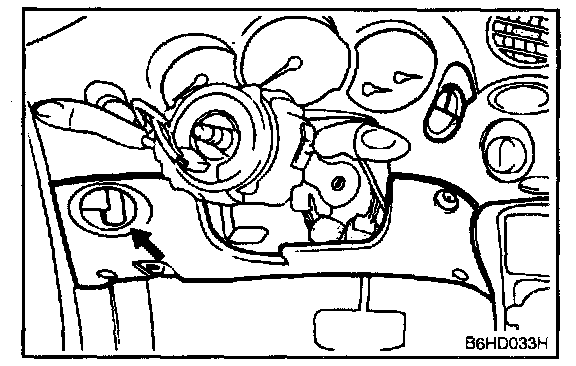

5. Remove the lower crash pad panel.

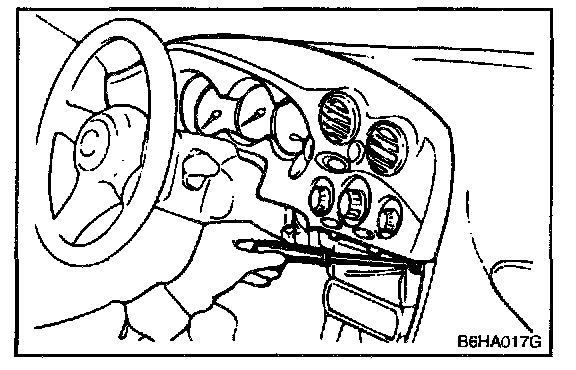

6. Remove the cluster facia panel mounting screws (5EA) from the cluster facia panel.

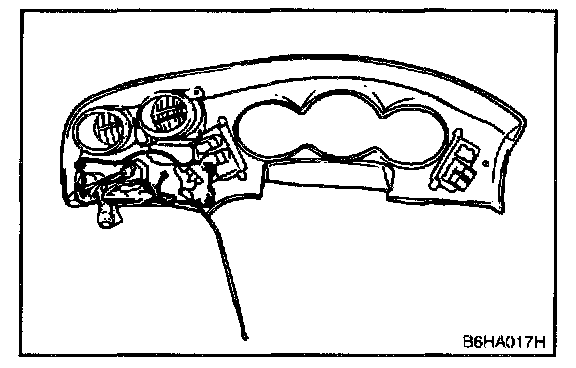

7. Pull out the cluster facia panel, disconnect switch extension wire connector, vacuum harness connector, blowers switch connector, A/C switch connector.




8. Remove the heater control panel mounting screws.

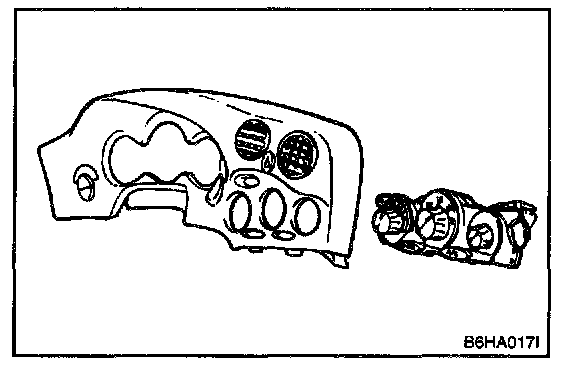

9. Remove the heater control panel assembly from the cluster facia panel.

INSTALLATION
Installation is the reverse order of removal.
