Fresh/Recirc Button

FRESH/RECIRC BUTTON





1. Connect the vacuum tester to black color hose for the fresh/recircle control switch.

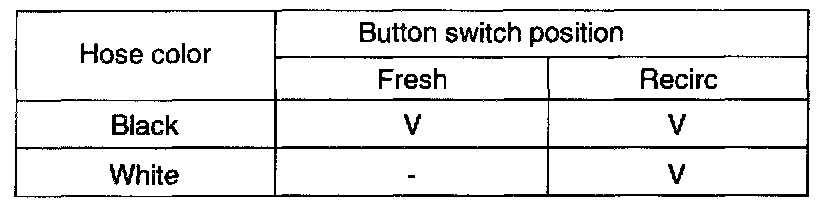

2. Check for vacuum hiss and air flow as shown.
