Connector Locations

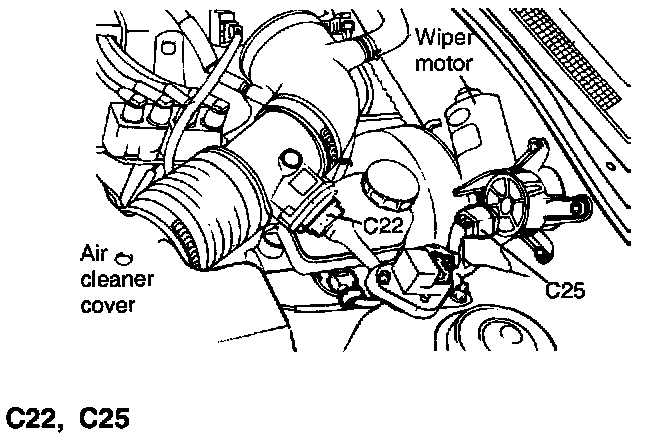

C22 MAF Sensor, C25 Front Wiper Motor:

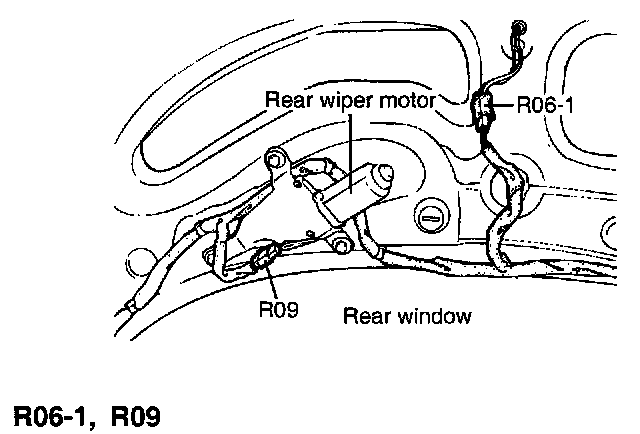

R06-1 High-Mounted Stop Lamp (Spoiler), R09 Rear Wiper Motor:
