Circuit Test

FUEL TANK PRESSURE SENSOR

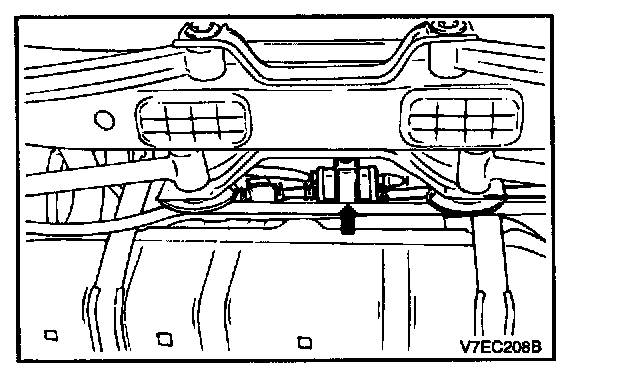

The fuel tank pressure sensor is a pressure sensitive variable resistor. It measures the change of pressure in the fuel tank and monitors leakage detection. It is used to close the evaporative system and observes tank pressure respectively with canister close valve.

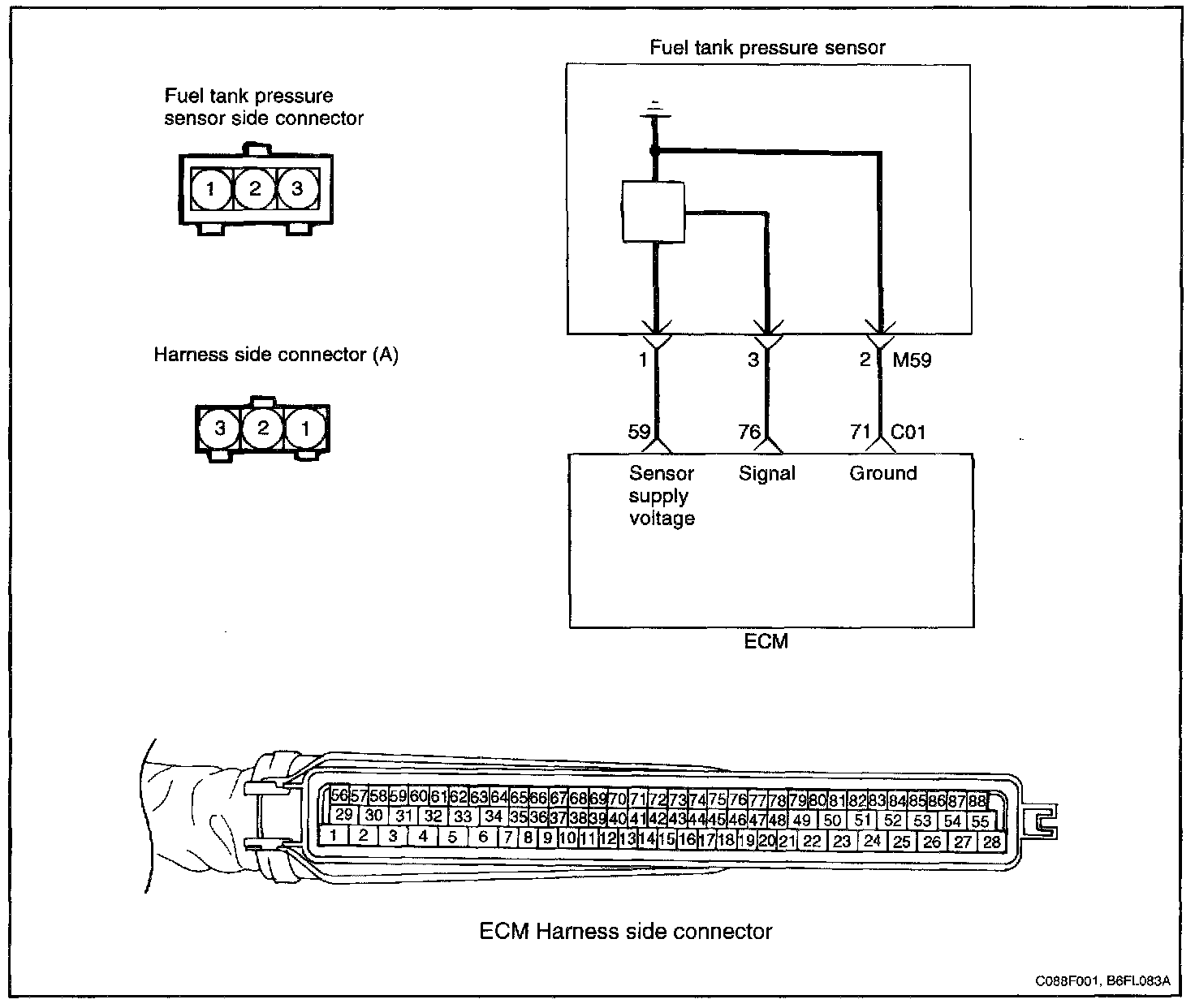

Circuit Diagram:

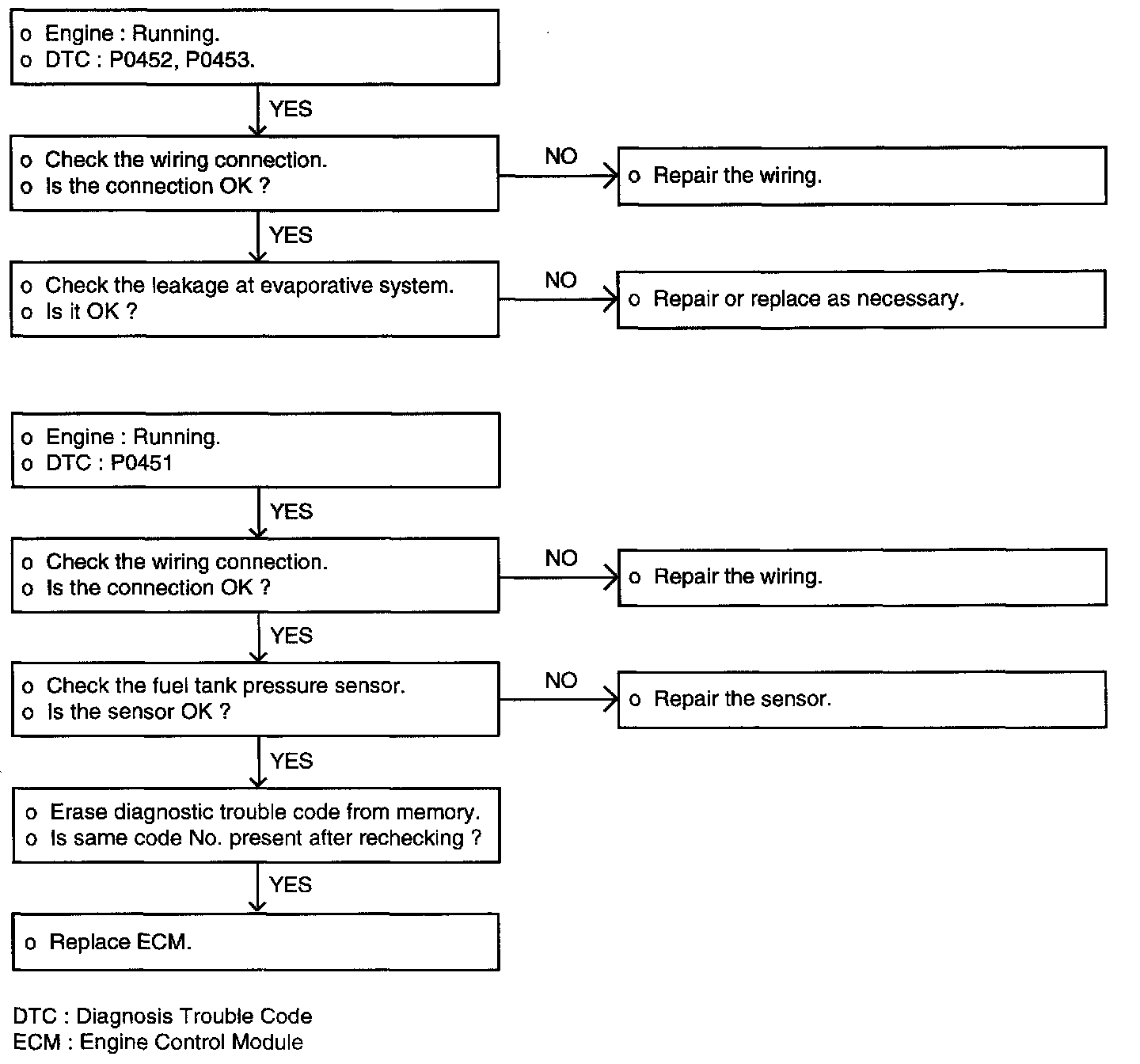

Troubleshooting Procedures:

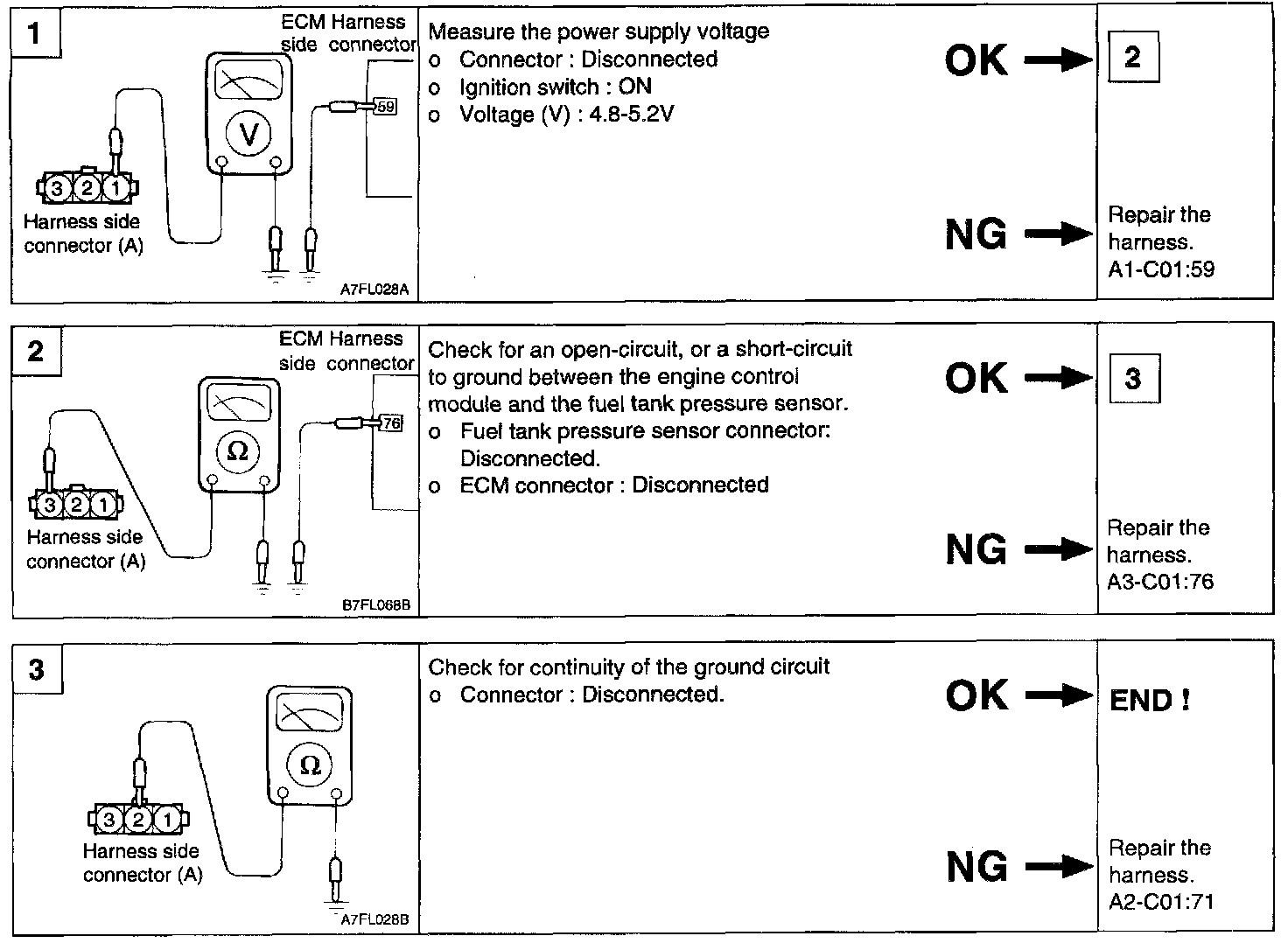

Harness Inspection Procedures:

SENSOR INSPECTION
Refer to Component Inspection
