Ignition Coil Pack: Testing and Inspection

17 Ignition Coil:




IGNITION COIL
When the ignition power transistor is turned ON by the signal from the ECM. It sends the signal to the ignition coil, then primary current is shut off and a high voltage is induced in the secondary coil.

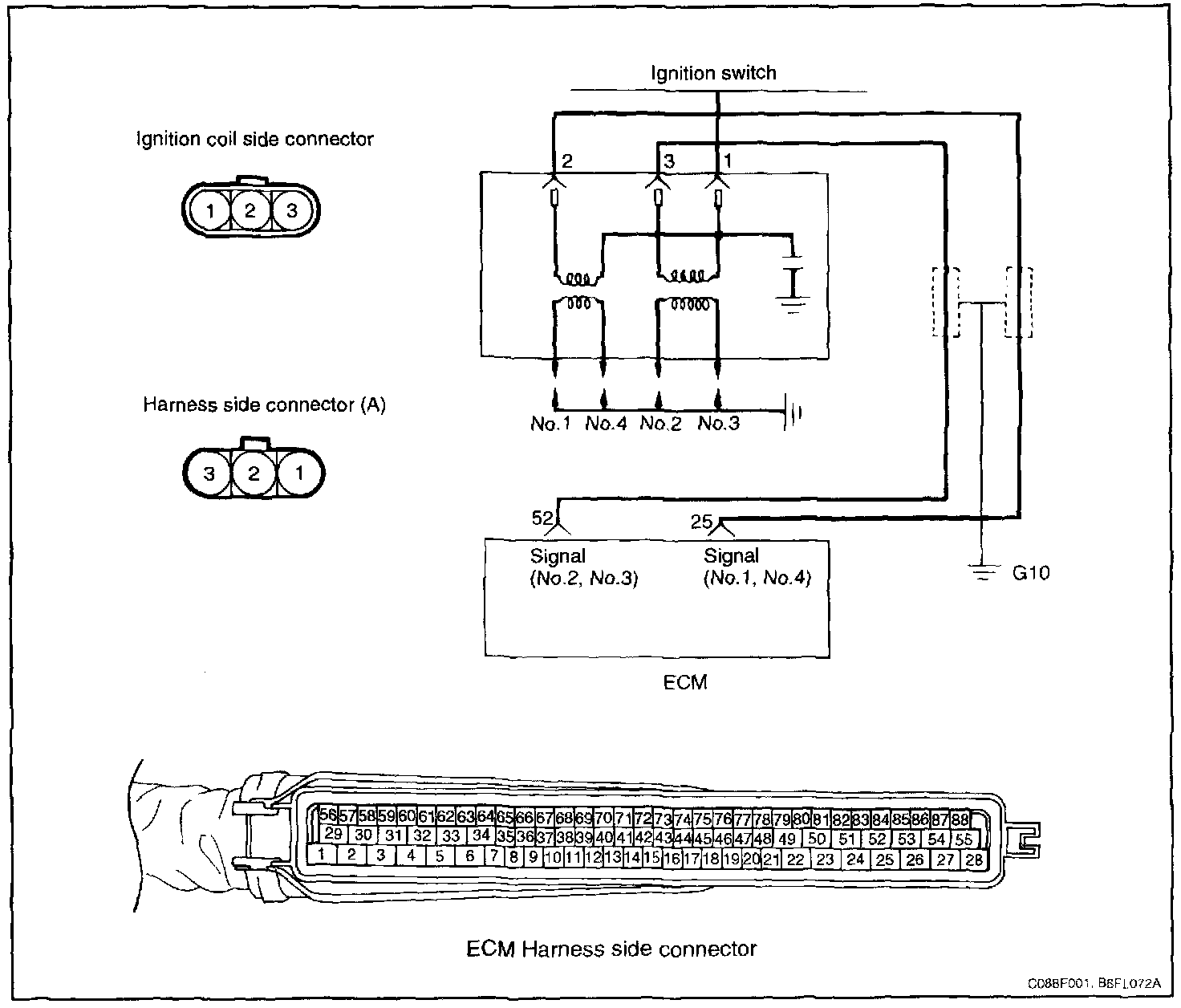

Circuit Diagram:

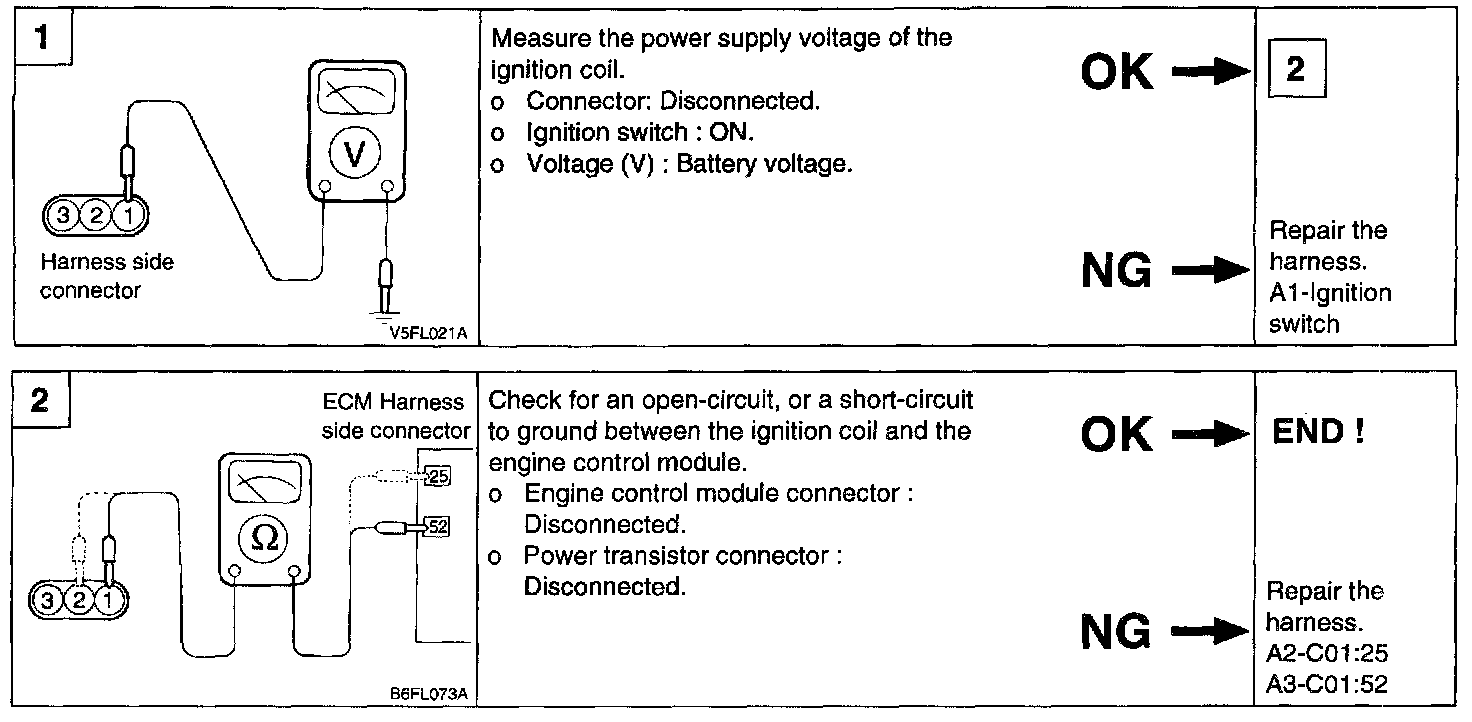

Harness Inspection Procedures:
