Tightening Torque Specifications

TIGHTENING TORQUE





1 of 2





2 of 2


Front Case (Oil Pump)
Case to Engine Block 12 - 15 Nm (120 - 150 kg.cm, 9 - 11 lb. ft)

Sequences

Cylinder Head

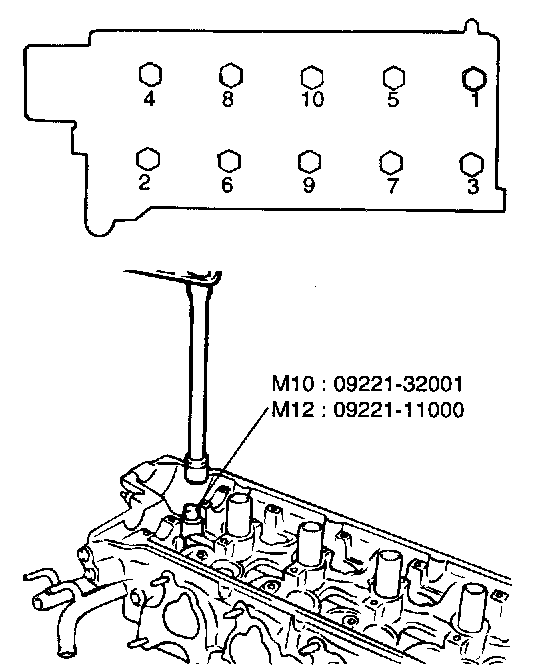

Removal

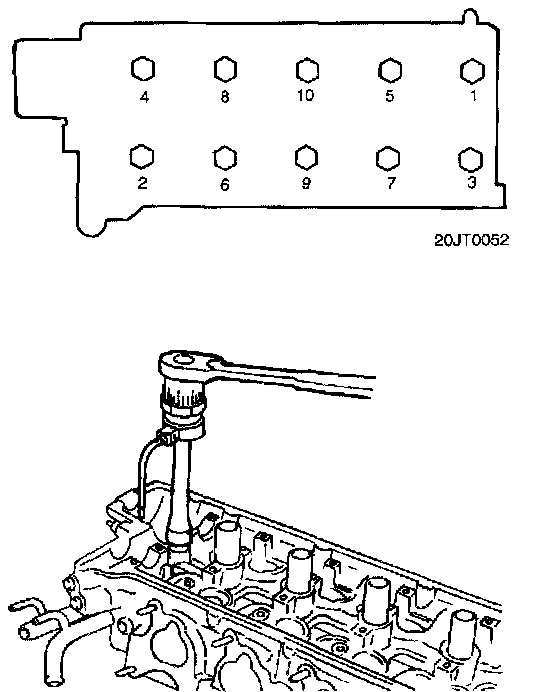

Installation

Note: Do not reuse cylinder head bolts over 2 - 3 times.

Camshaft Bearing Caps




Installation

Main Bearing Cap Installation
Center, No.2, No.4 front and rear caps
