Manual Transaxle Control: Inspection

  1. Check the select cable for proper operation and damage.
  2. Check the shift cable for proper operation and damage.
  3. Check the boot for damage.
  4. Check each bushing for wear, abrasion, sticking, restricted movement or damage.
  5. Check for a weak or damaged spring.

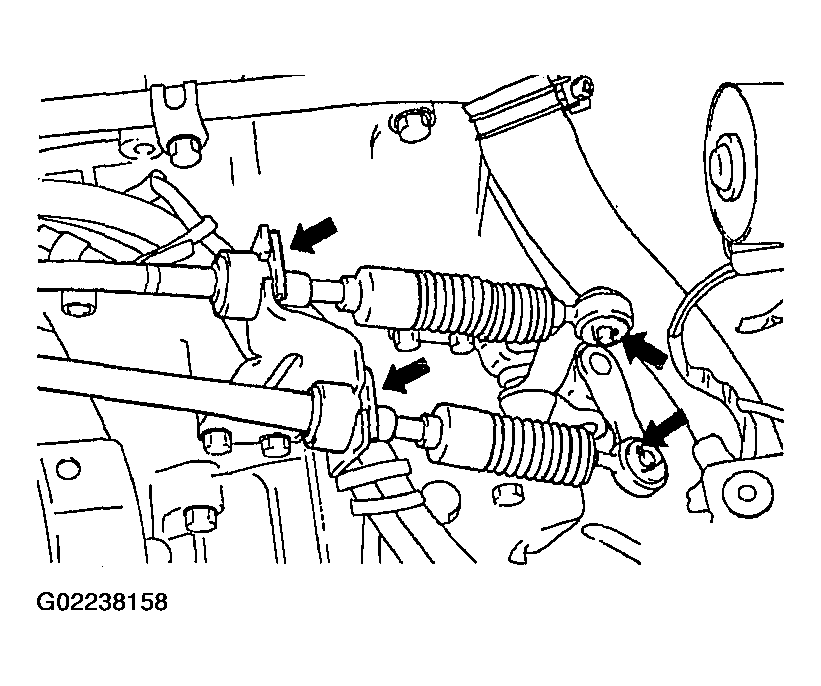

    Fig 1: Inspecting Select Cable & Shift Cable
    G02238158


  1. Check the bushing for wear or damage.
  2. Check the return spring for damage or deterioration.
