Manual Transaxle Control: Installation

Install the shift lever assembly.
Installation of shift lever and select cable.
1. Move the transaxle select lever and shift lever to the neutral position.
2. When connecting the select cable to lever (B), adjust the select cable's length so that lever (B) is at the neutral position.

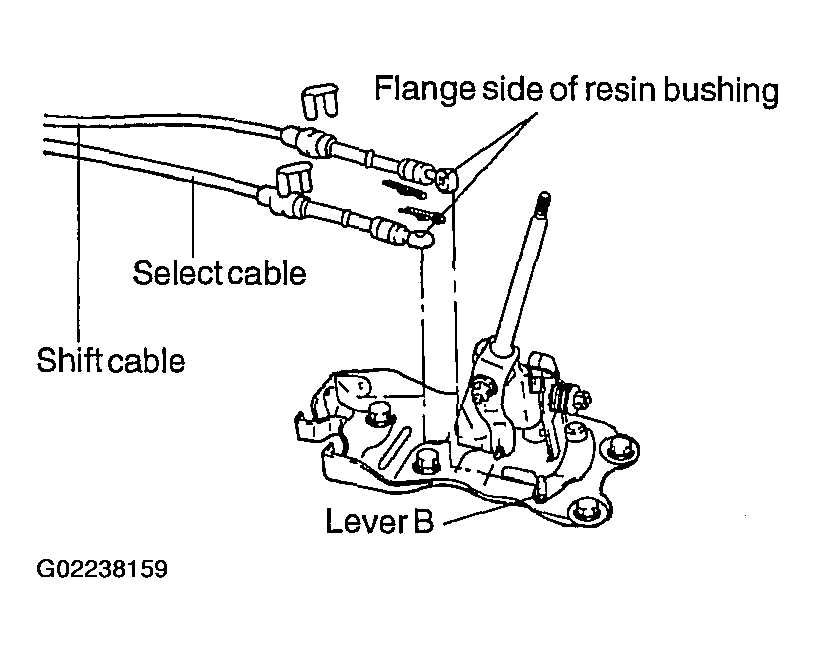

  Fig 1: Identifying Select Cable & Lever B
3. The flange side of the resin bushing at the select cable end should be at the lever (B) end surface.
4. The flange side of the resin bushing at the shift cable end should be at the shift lever's cotter pin hole.
5. After connecting the shift cable, check that the dimensions (A) and (B) shown in the illustration are equal.

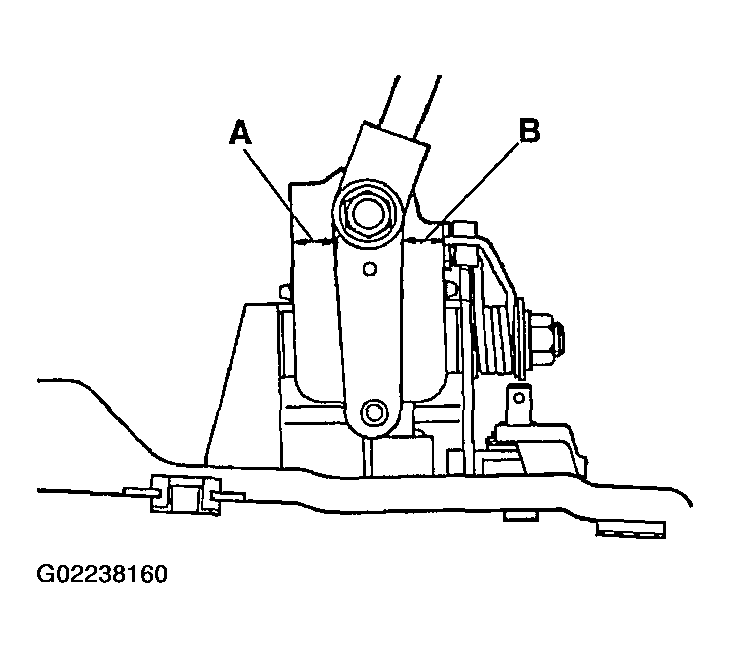

  Fig 2: Identifying Dimensions A & B
6. If the dimensions (A) and (B) are not equal adjust the regulator of shift cable.
7. Move the shift lever to each position and verify that the shifting is smooth.

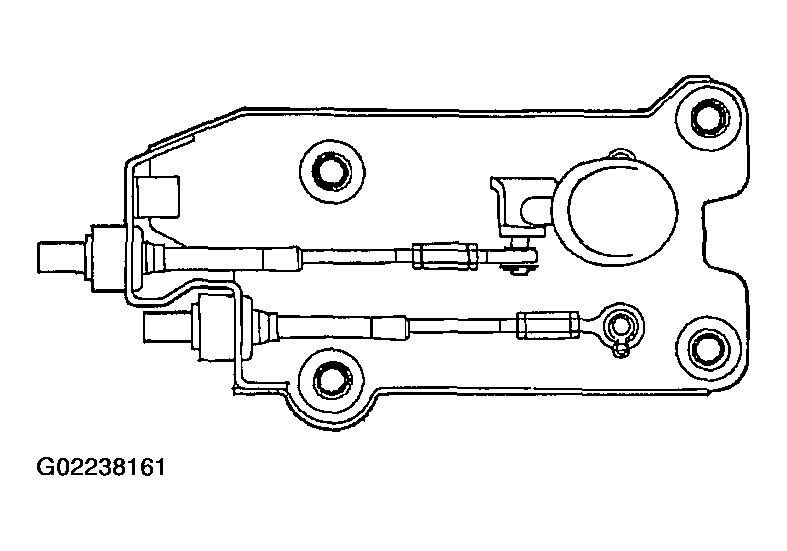

  Fig 3: View Of Shift Mechanism

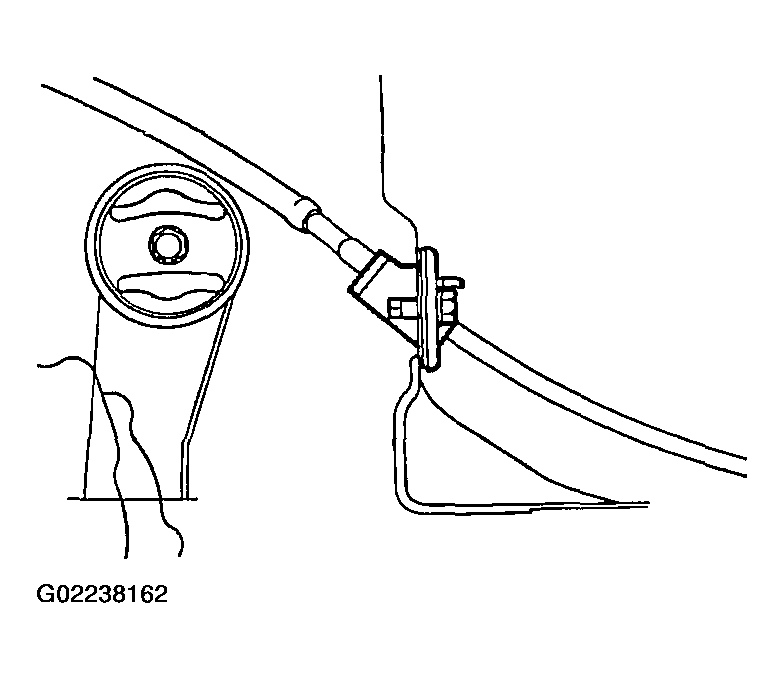

Install the retainer and bolts.

Fig 4: Identifying Retainer Bolt
