Manual Reprogramming Procedure

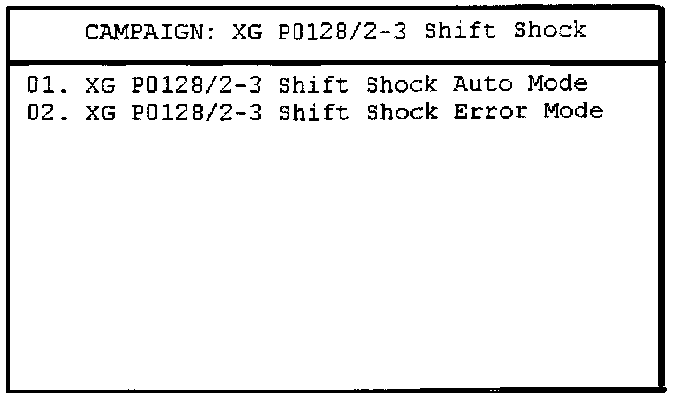

In the event menu option "01. XG P0128/2-3 Shift Shock Auto Mode" fails to download the new program, option "02. XG P0128/2-3 Shift Shock Error Mode" must be used.

Confirm all connections are established as shown in the "AUTOMATIC UPDATE PROCEDURE" before continuing.

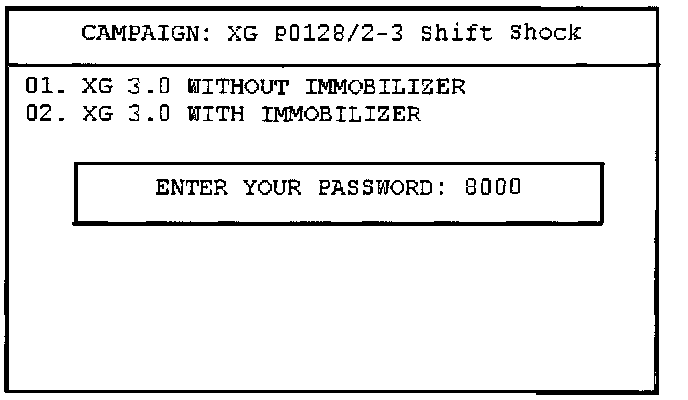

1. Select "02. XG P0128/2-3 Shift Shock Error Mode".





2. Select option "01. XG 3.0 Without Immobilizer".

3. Enter "8000" for the password.

NOTE:
Option "01. XG 3.0 Without Immobilizer" should be the selection for U.S. spec. vehicles.

Once the password is entered and accepted, the rest of the procedure is exactly the same as the "AUTOMATIC REPROGRAMMING PROCEDURE" continuing with step 12 (including "Adaptive Learning Procedure".
