3-4 Shift Shudder - TCM Reprogramming Instructions (02-40-004)

Publication date: 2002-01-01
Reference number: 02-40-004

3-4 SHIFT SHUDDER - TCM REPROGRAMMING INSTRUCTIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-40-004, Date of Issue: January, 2002

HYUNDAI:	2001 XG300
GROUP:	Transaxle

DESCRIPTION

2001 XG300 3-4 SHIFT SHUDDER - TCM REPROGRAMMING INSTRUCTIONS 2001 XG300

Some 2001 XG300 vehicles may experience a 3-4 shift shudder condition. The following procedure describes updating the TCM (Transaxle Control Module) software using the Hi-Scan Pro.

BULLETIN CONTENT

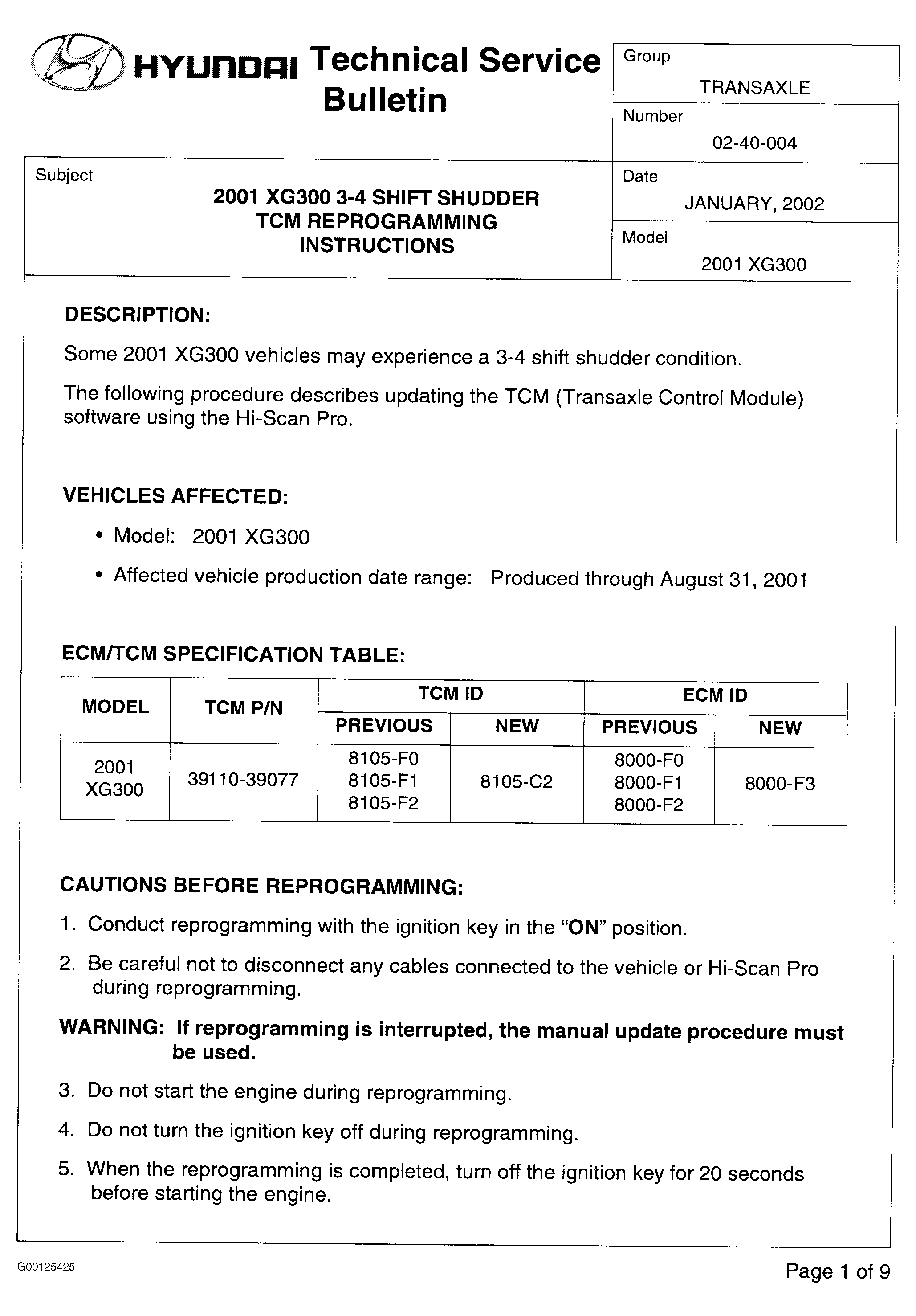

Fig 1: Page 1 of Bulletin

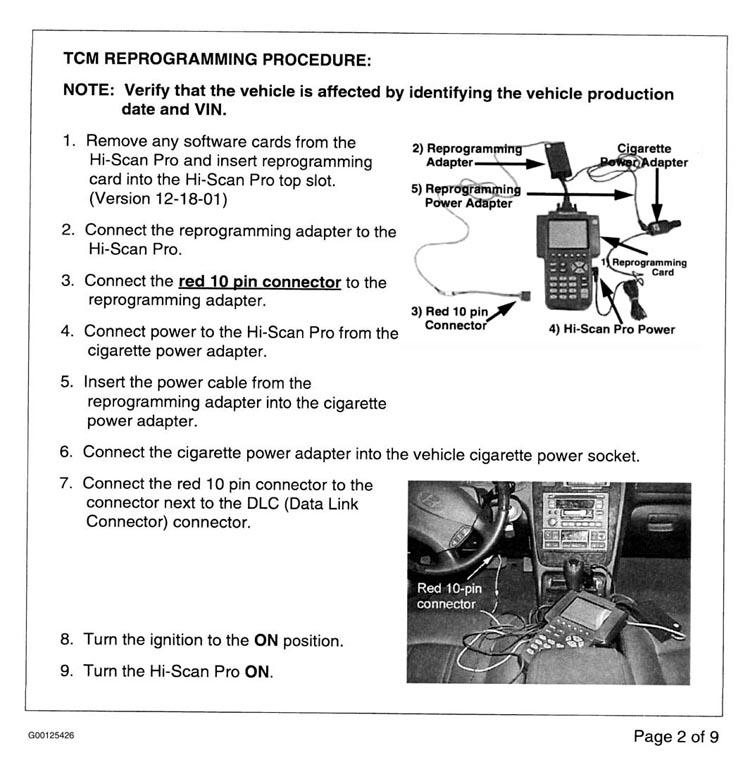

Fig 2: Page 2 of Bulletin

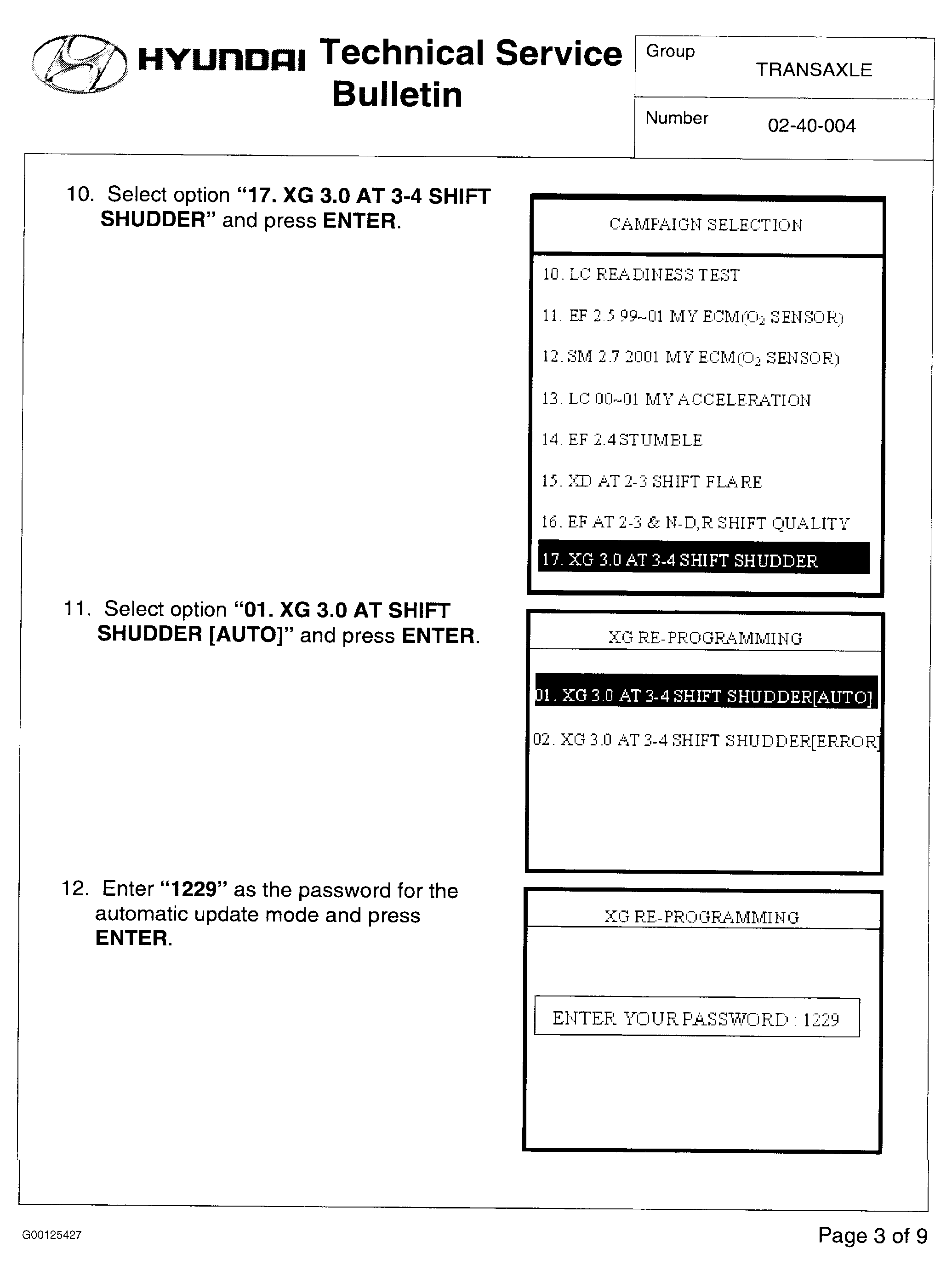

Fig 3: Page 3 of Bulletin

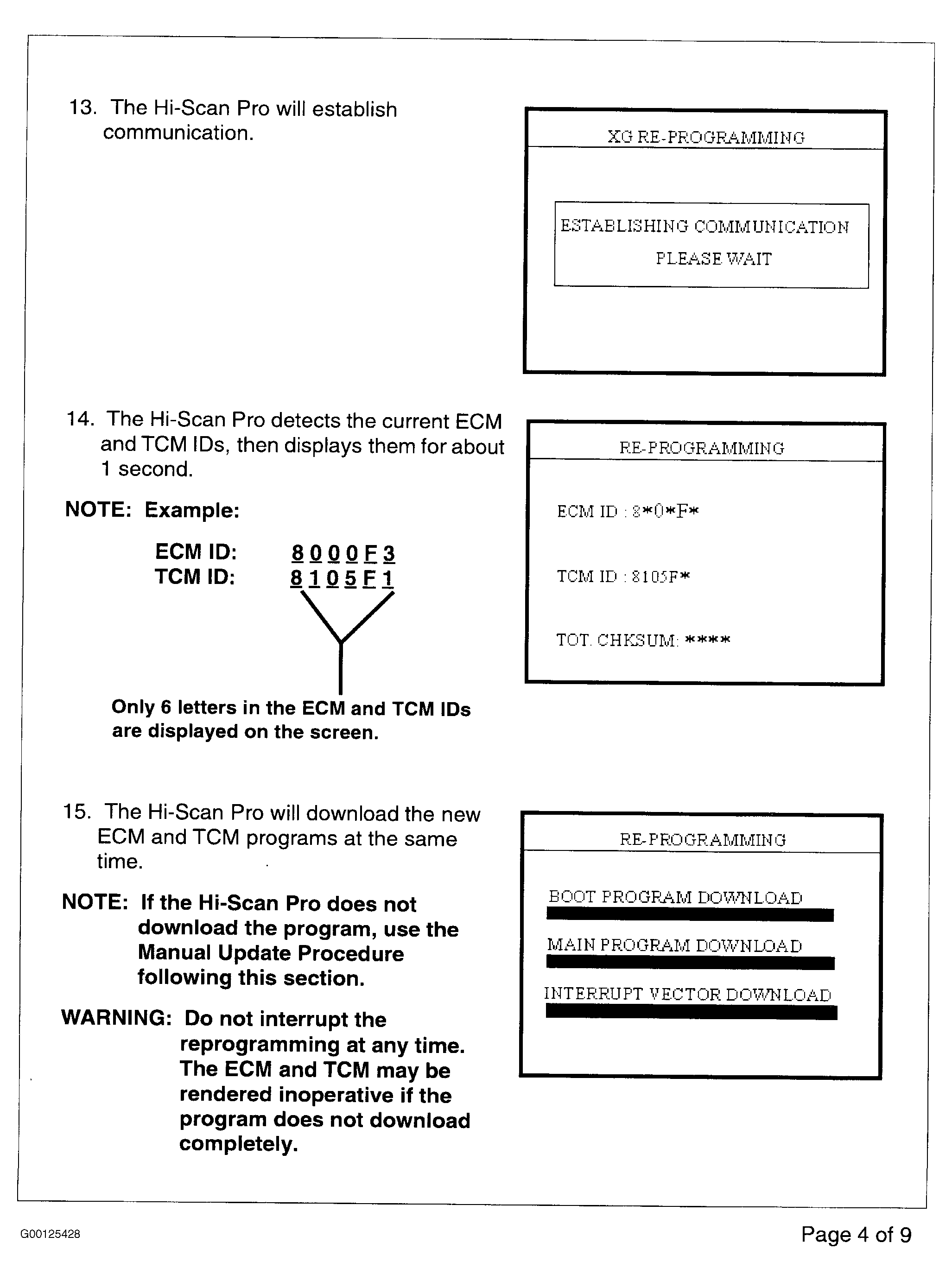

Fig 4: Page 4 of Bulletin

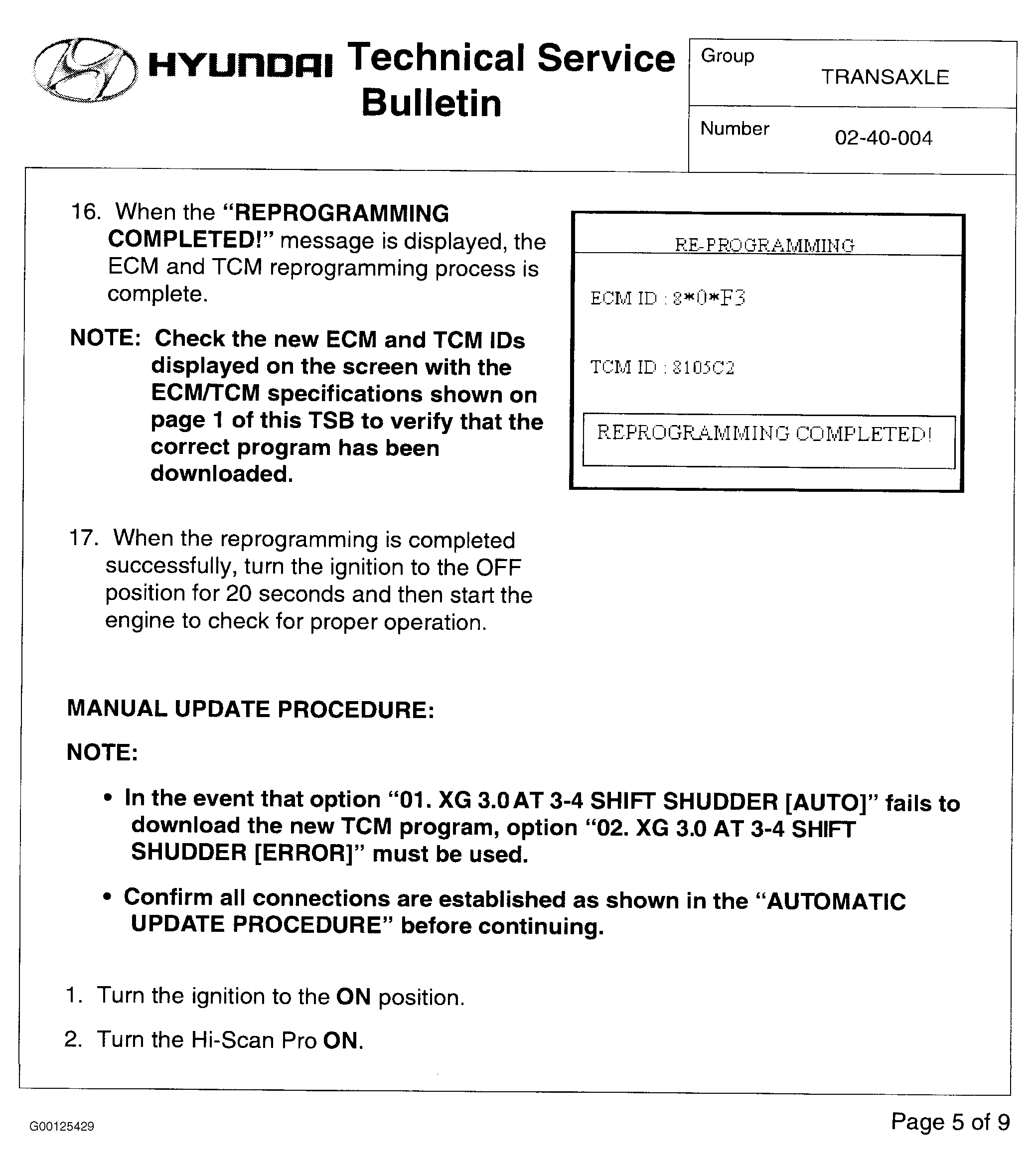

Fig 5: Page 5 of Bulletin

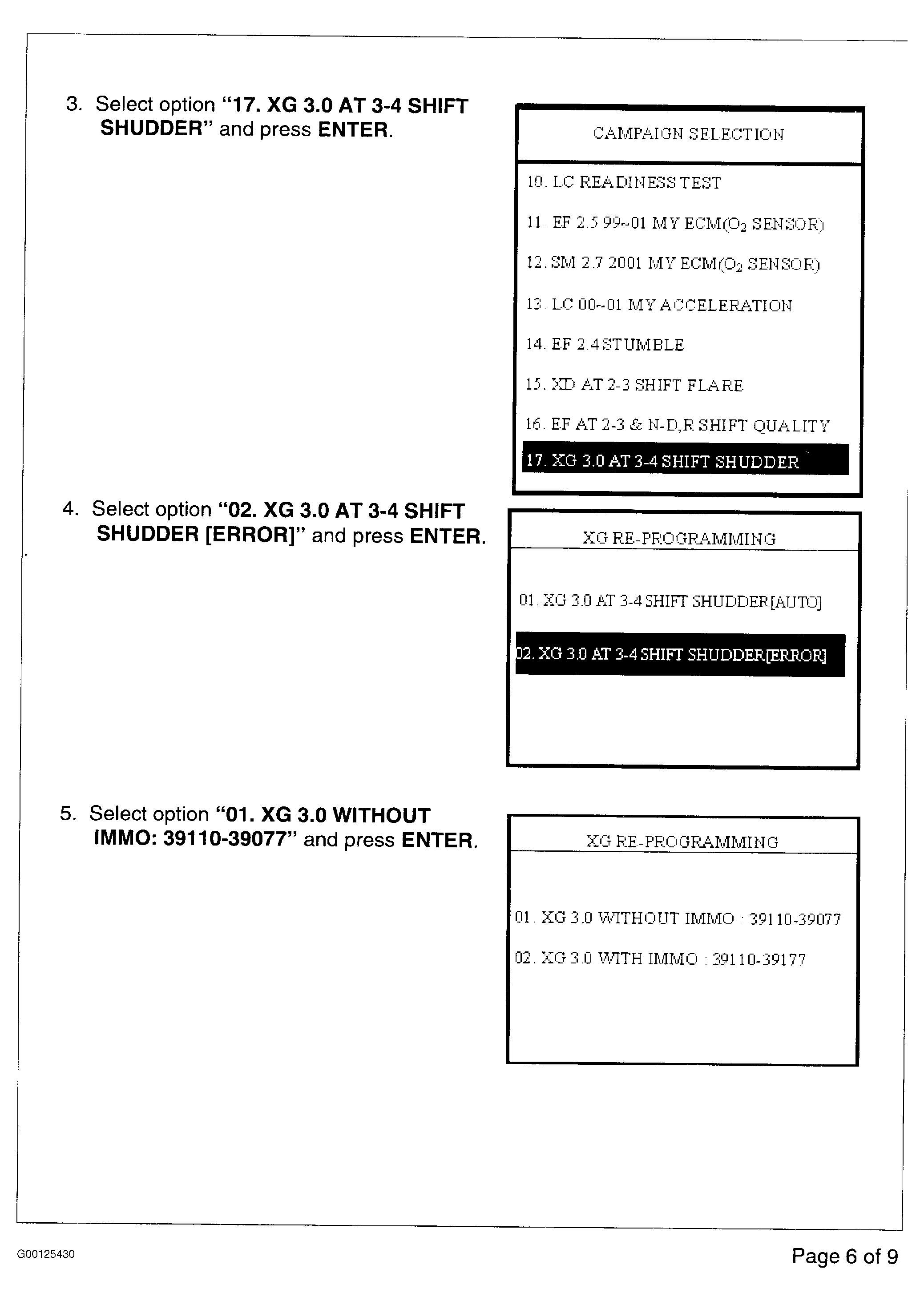

Fig 6: Page 6 of Bulletin

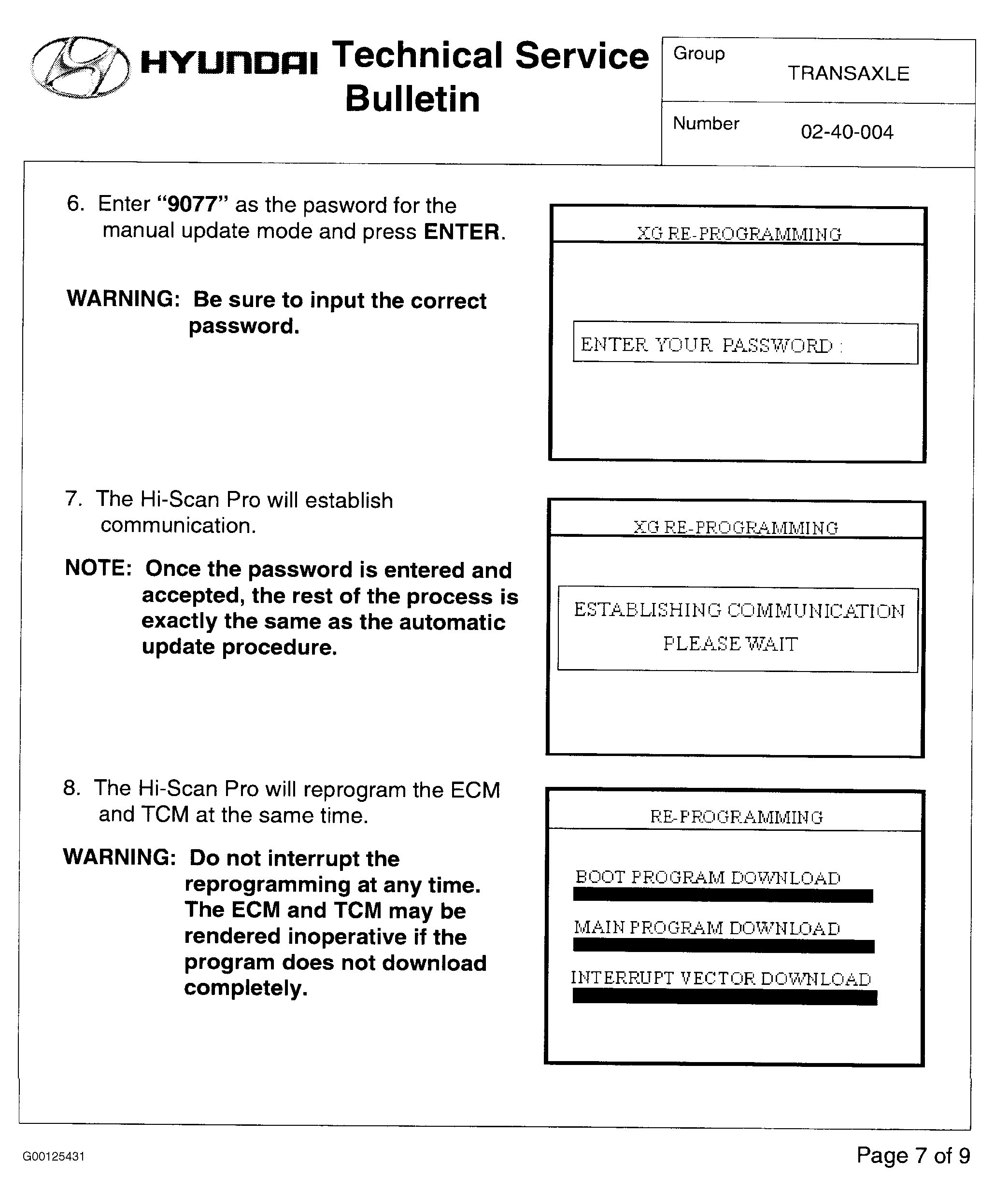

Fig 7: Page 7 of Bulletin

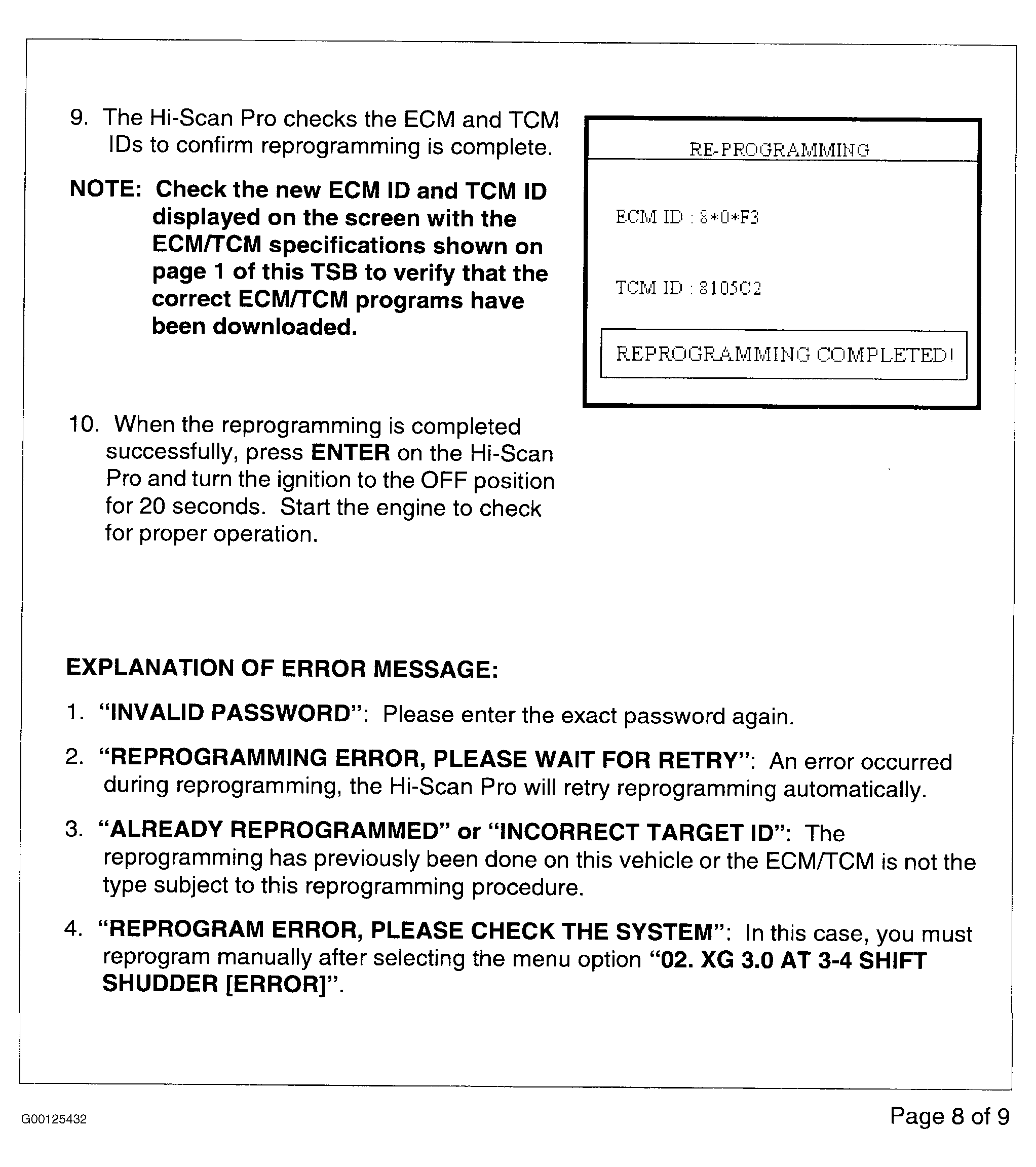

Fig 8: Page 8 of Bulletin

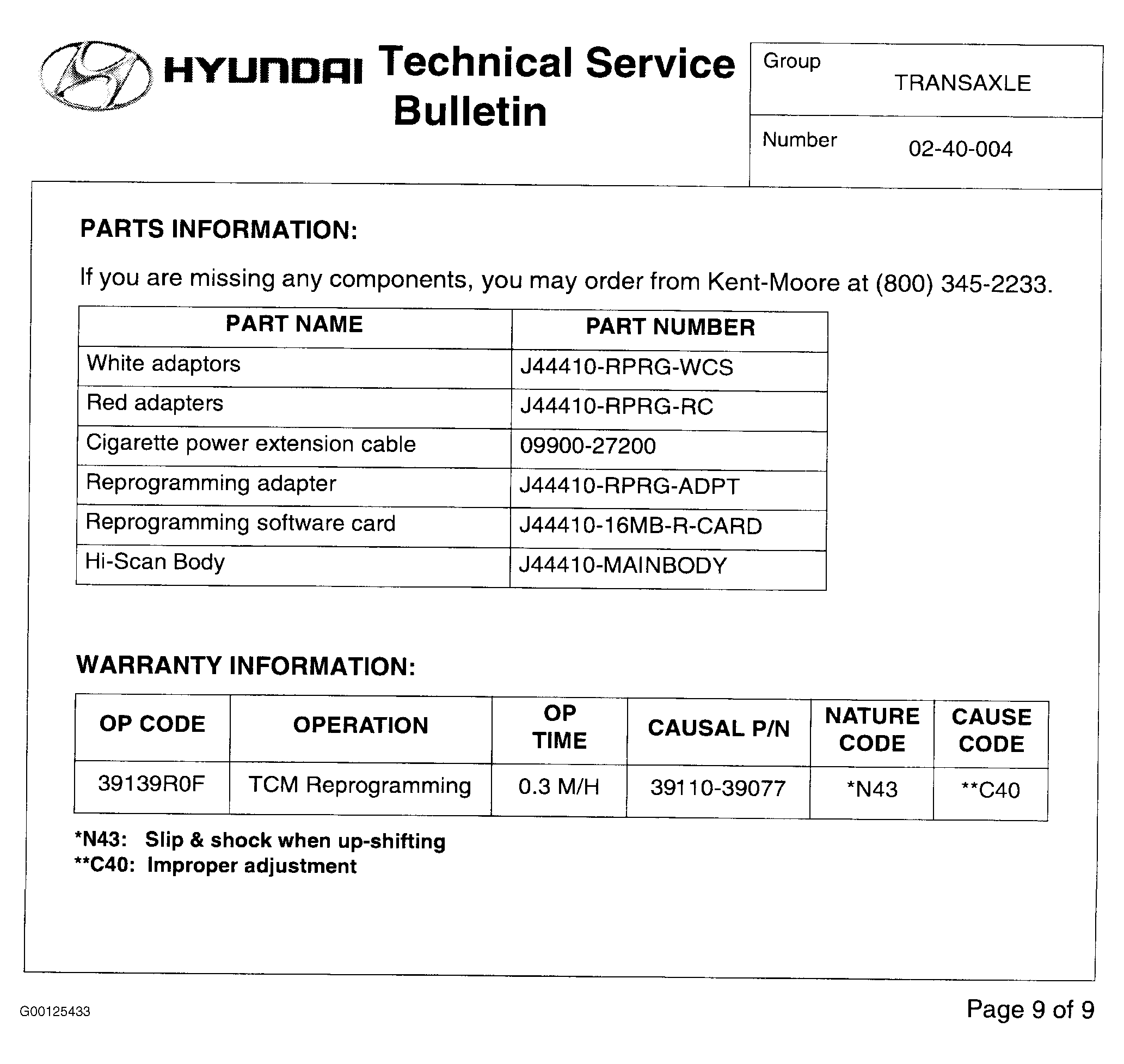

Fig 9: Page 9 of Bulletin
