Front Suspension System: Description

Independent front suspension uses a MacPherson strut with coil spring, attached to a steering knuckle. Knuckle is mounted on control arm by a ball joint. Front suspension consists of a strut assembly, steering knuckle, control arm and stabilizer bar. See Fig 1 and Fig 2 .

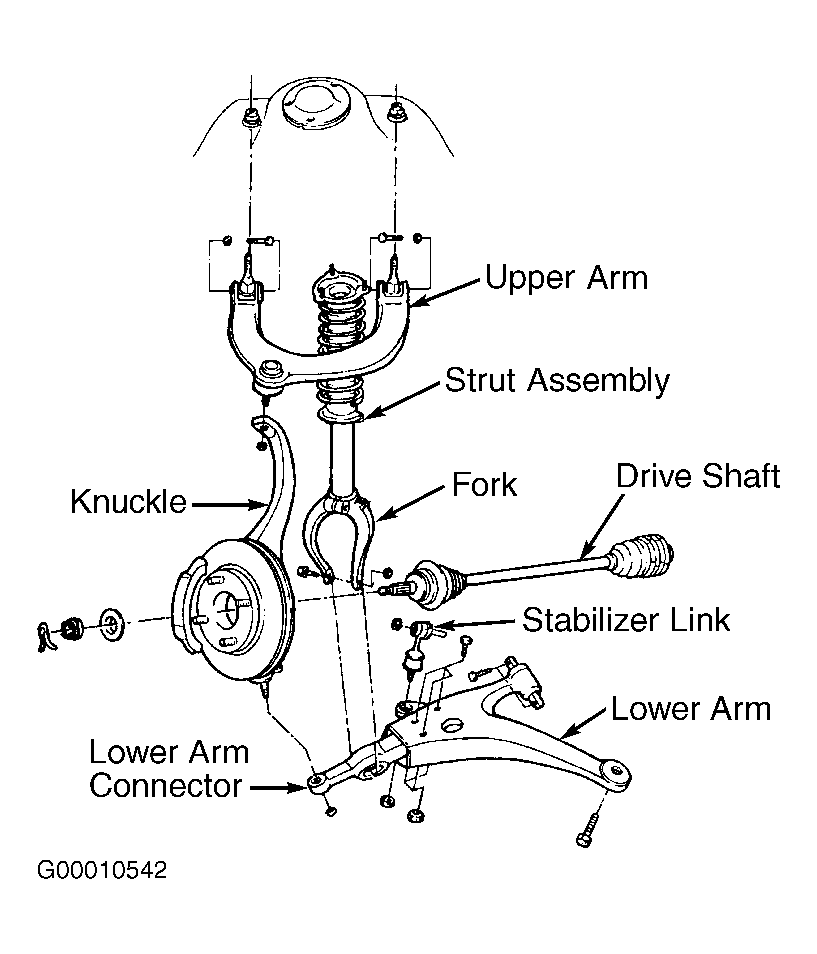

Fig 1: Lower Arm Components (Accent Shown; Elantra, Santa Fe & Tiburon Are Similar)

Courtesy of HYUNDAI MOTOR CO.

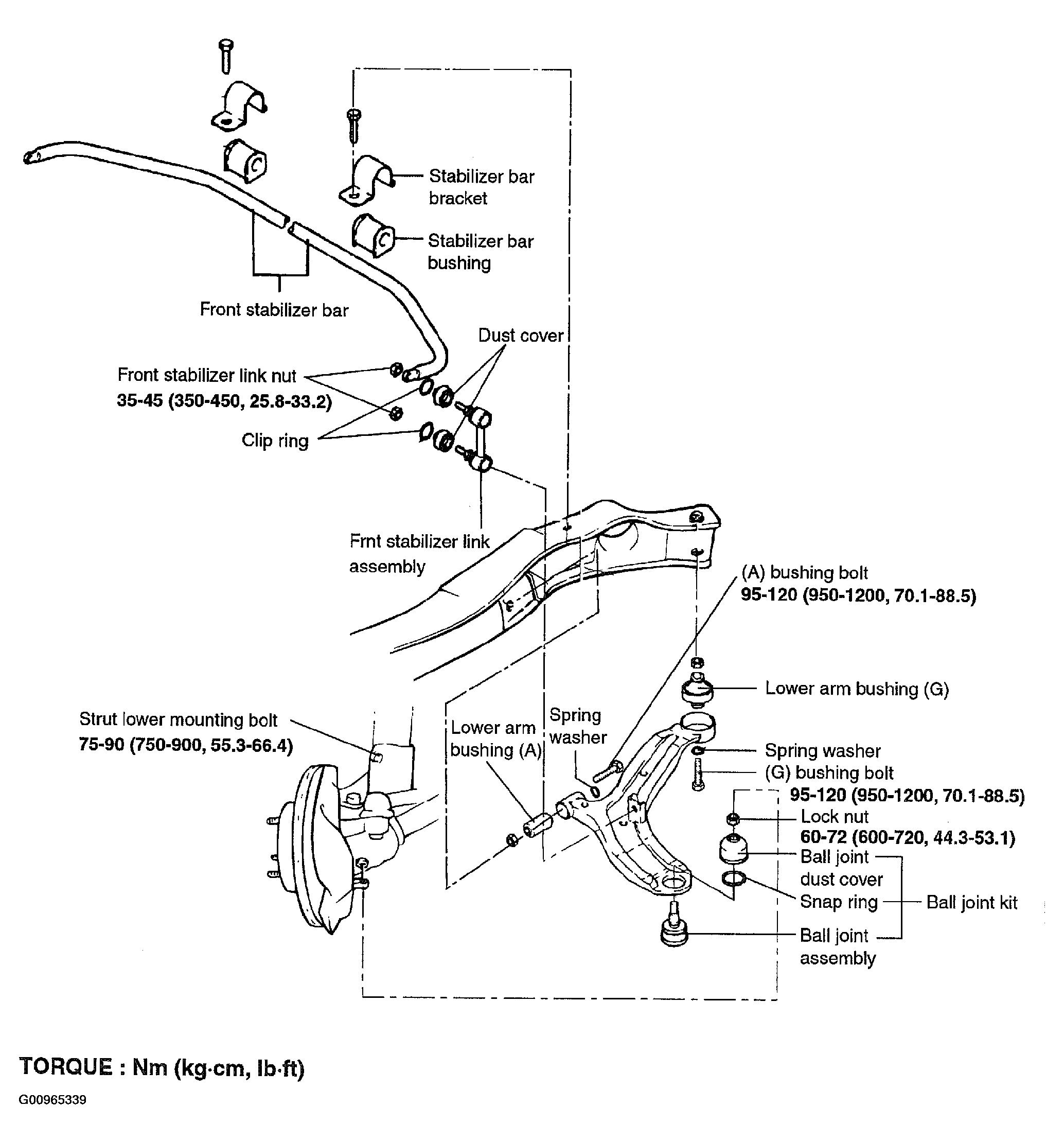

Fig 2: Exploded View Of Front Suspension (Sonata & XG300)

Courtesy of HYUNDAI MOTOR CO.
