DTC P1723: A/T Control Relay System

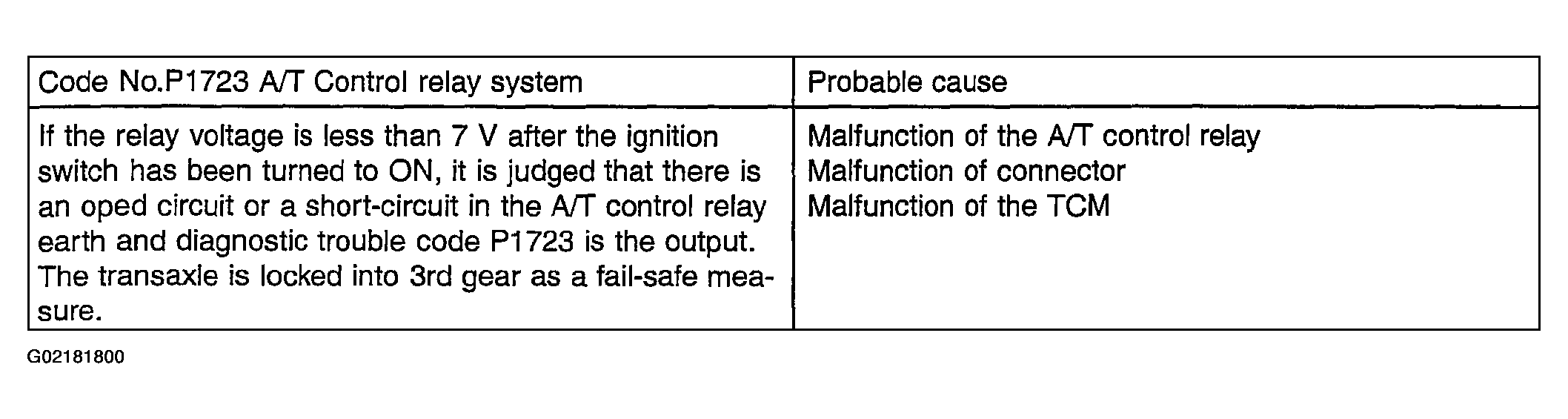

Fig 1: DTC P1723 Detecting Conditions & Probable Causes

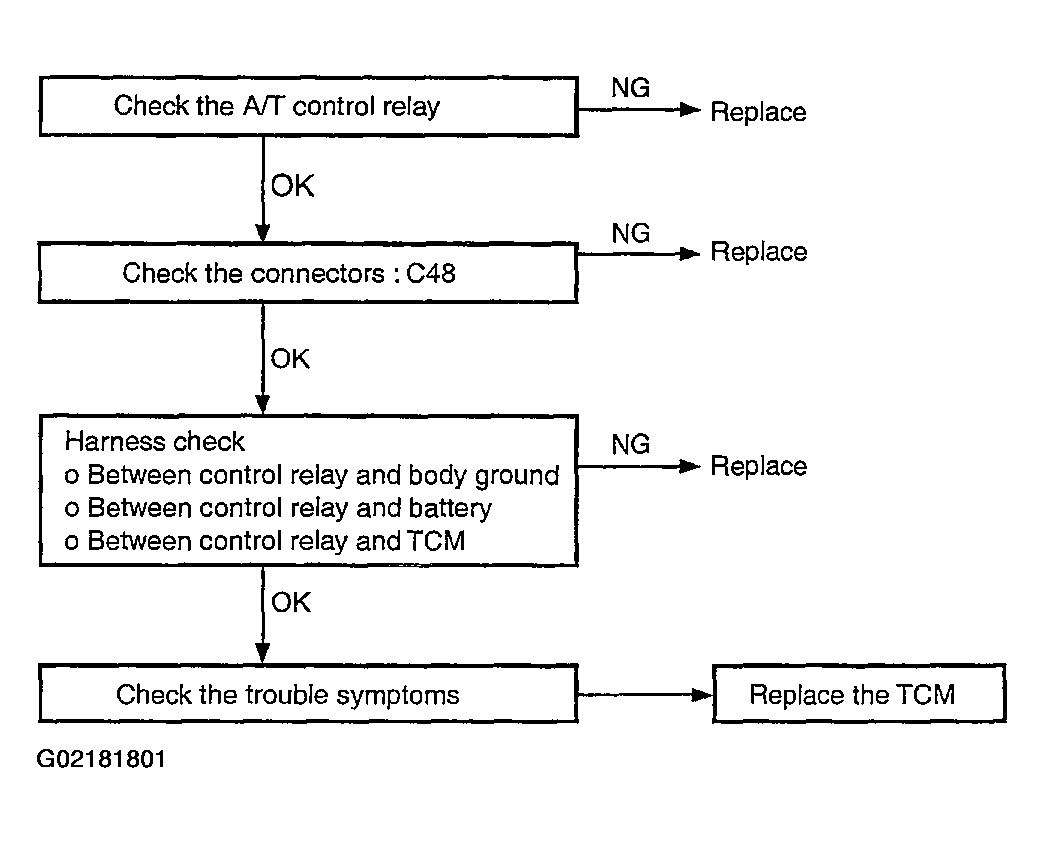

Fig 2: DTC P1723 Diagnostic Flow Chart
