Connector Locations

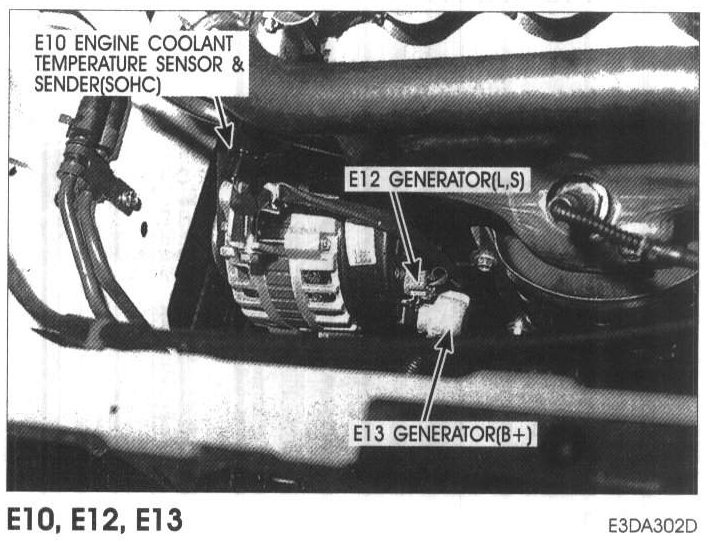

E10 Engine Coolant Temperature Sensor & Sender, E12 Generator(L,S), E13 Generator (B+):

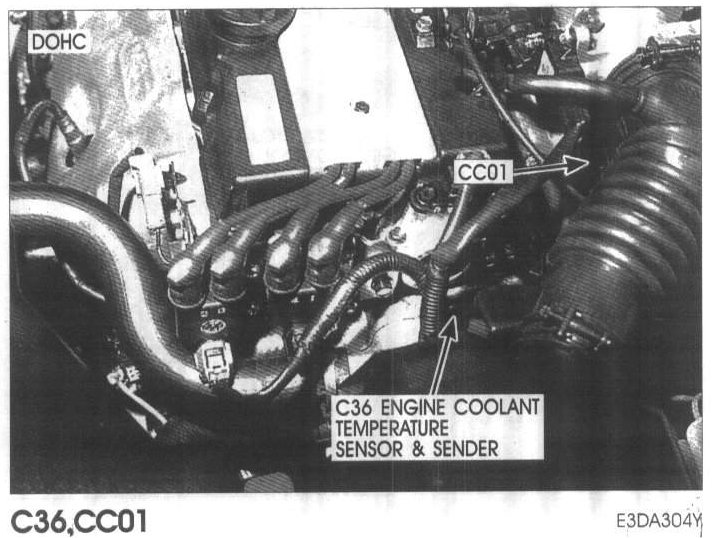

C36 Engine Coolant Temperature Sensor & Sender, CC01:
