Automatic Transaxle System: Troubleshooting

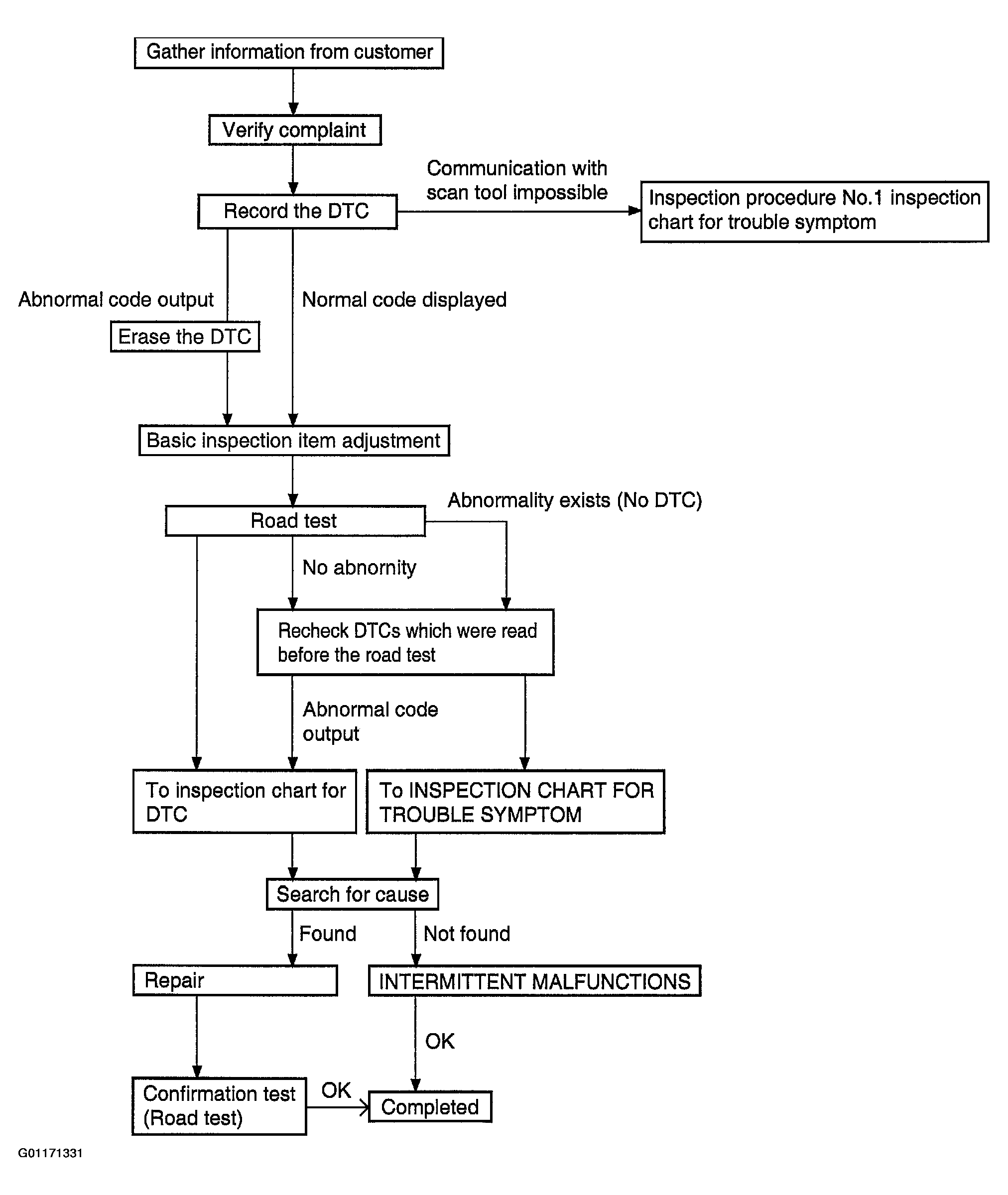

Fig 1: Troubleshooting Procedure Diagram

G01171331

Courtesy of HYUNDAI MOTOR CO.
