Element In Use At Each Position Of Selector Lever

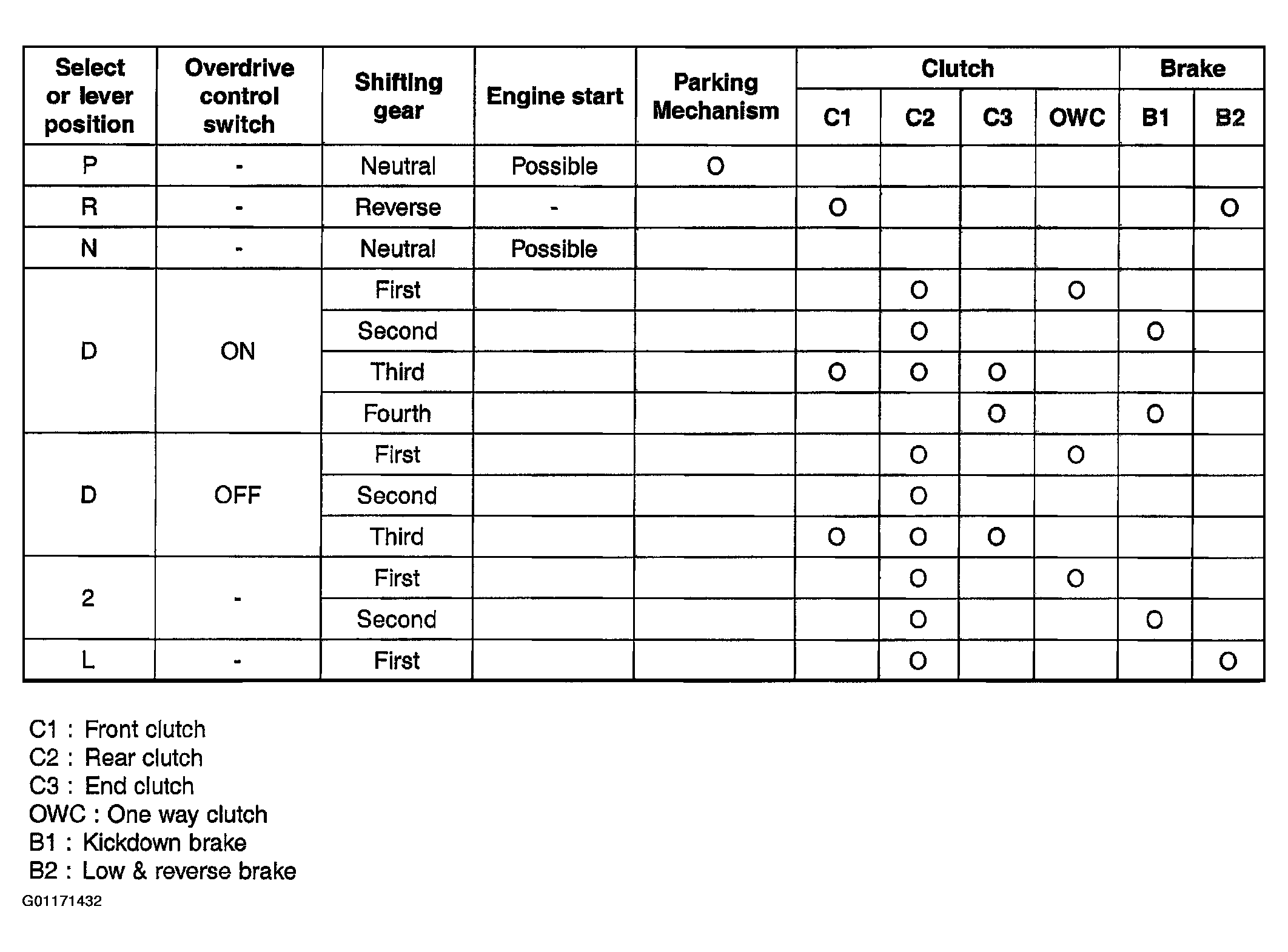

Fig 1: Element In Use At Each Position Of Selector Lever
G01171432Courtesy of HYUNDAI MOTOR CO.
