Inspection Procedure 9

WARNING: This page is about a different variant/trim than selected.

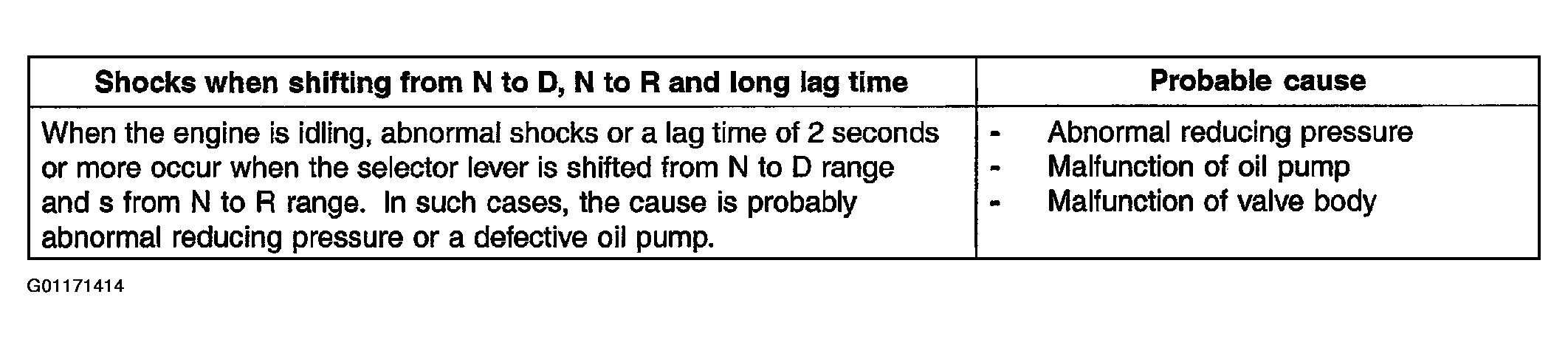

Fig 1: Probable Cause - Shocks When Shifting From N To D, N To R & Long Lag Time
G01171414Courtesy of HYUNDAI MOTOR CO.

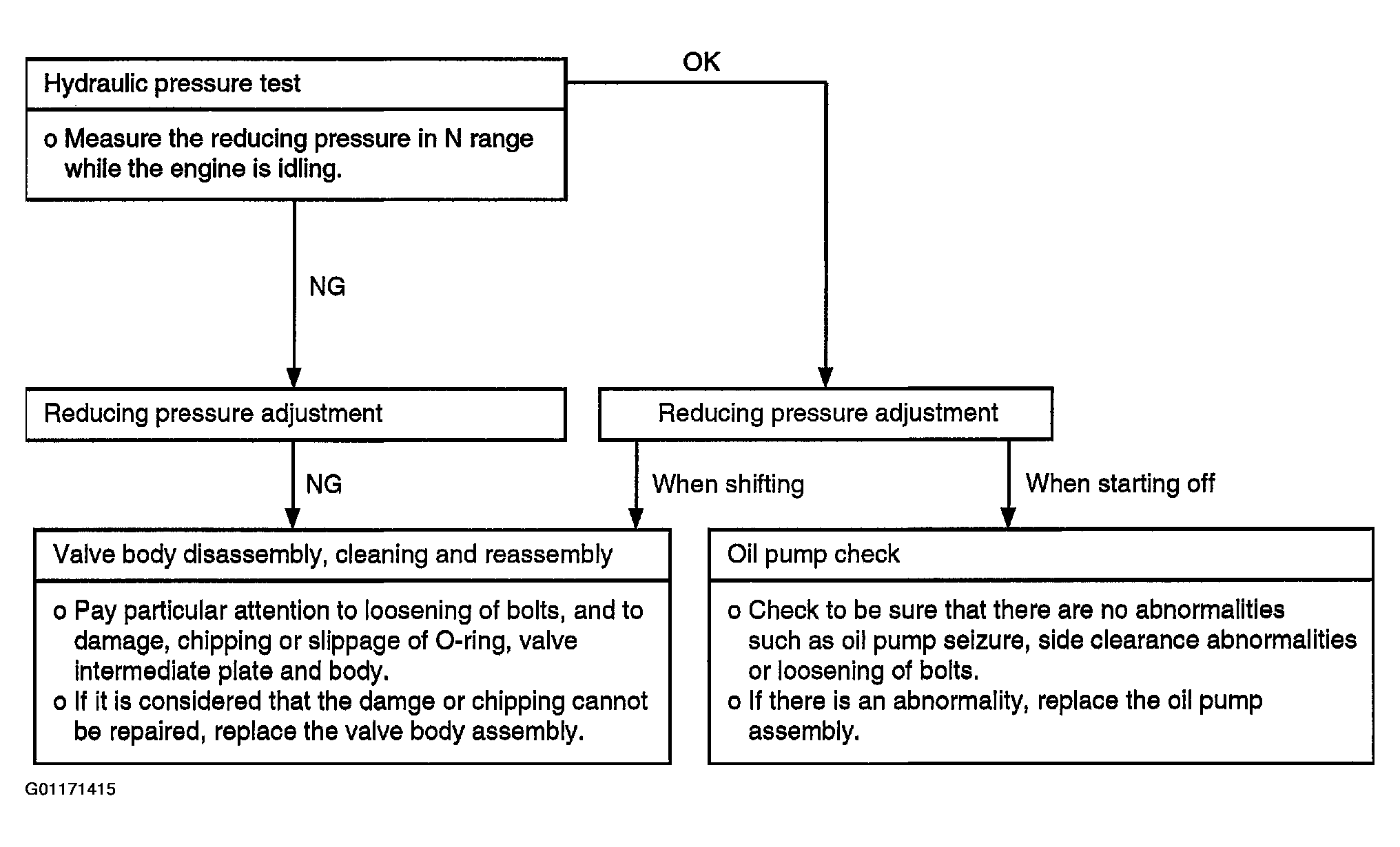

Fig 2: Troubleshooting Flow - Shocks When Shifting From N To D, N To R & Long Lag Time
G01171415Courtesy of HYUNDAI MOTOR CO.
