Troubleshooting Flow

WARNING: This page is about a different variant/trim than selected.

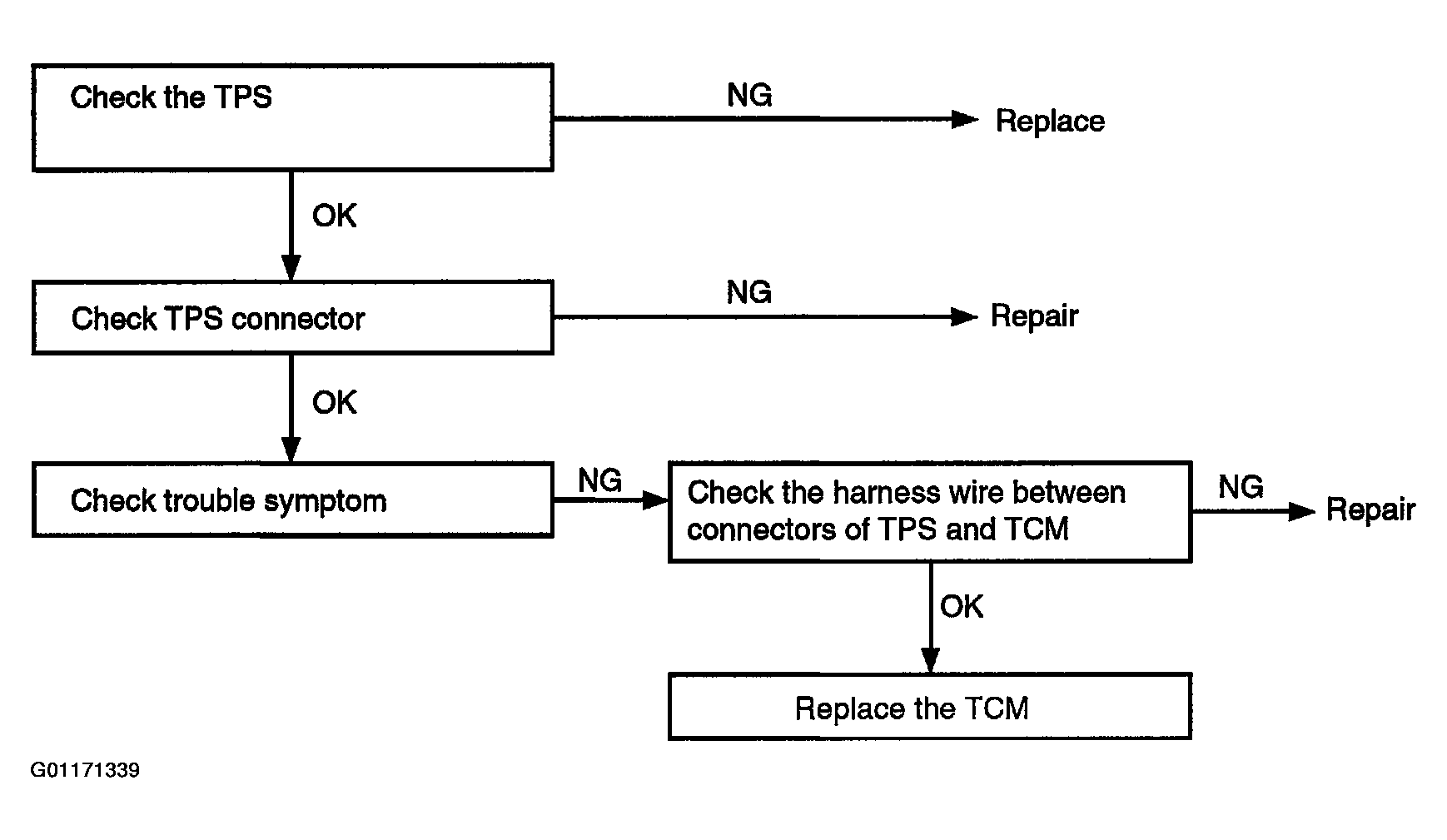

Fig 1: DTC P1703: Troubleshooting Flow
G01171339Courtesy of HYUNDAI MOTOR CO.
