Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Remove the drain plug and drain out the transaxle fluid.

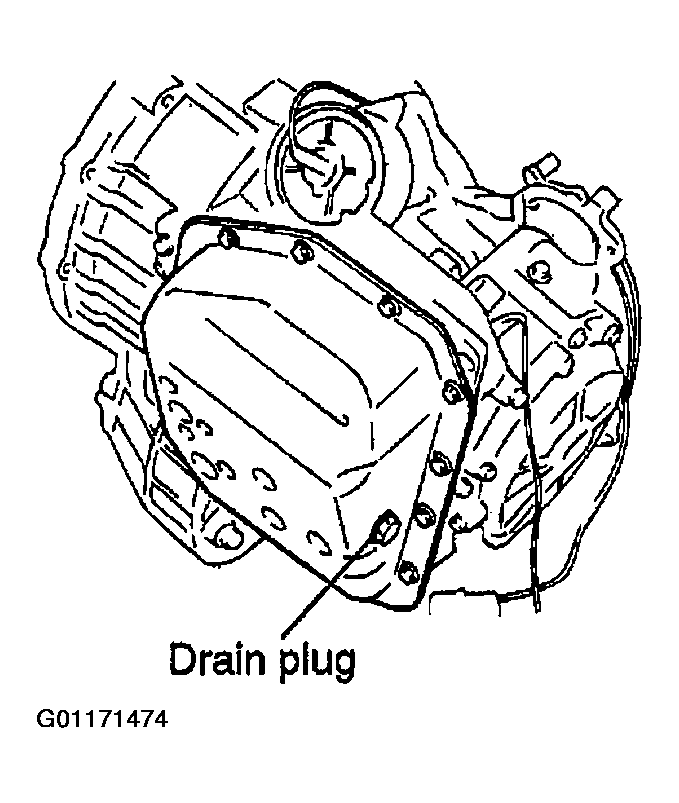

Fig 1: Removing Drain Plug
Courtesy of HYUNDAI MOTOR CO.
Disconnect and remove the air cleaner assembly.
Loosen the mounting clamps and disconnect the return and supply hose.
NOTE: To prevent to entry of dust and foreign matter, plug the disconnected hoses and the transaxle fitting part.

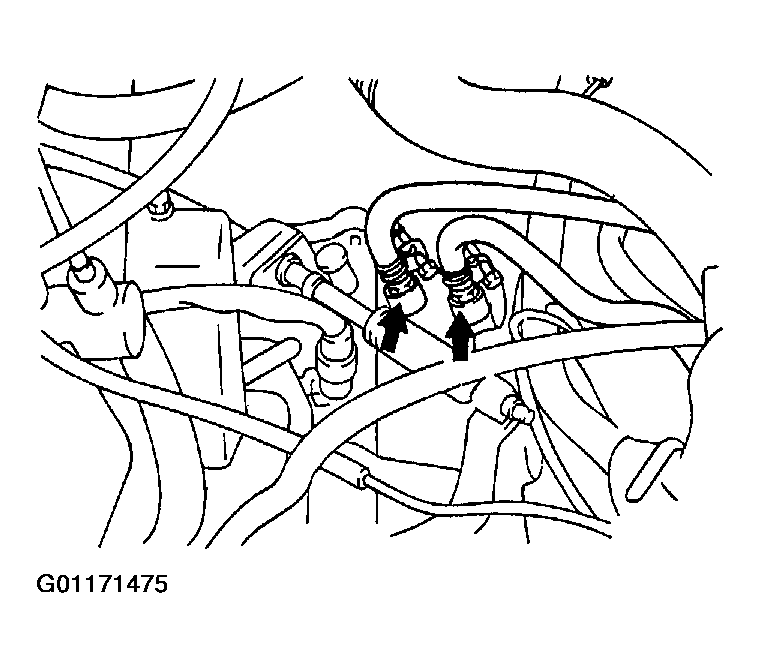

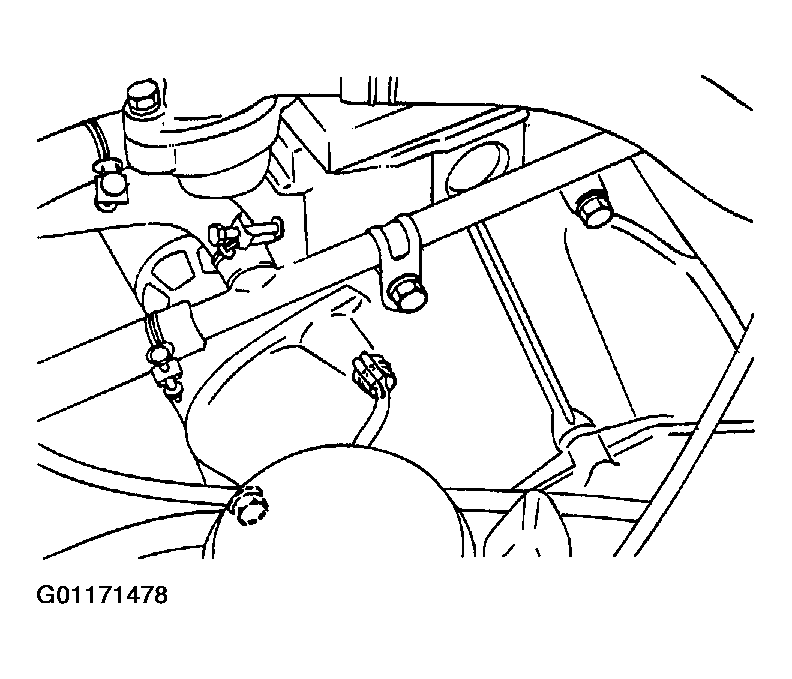

Fig 2: Disconnecting Return & Supply Hose
Courtesy of HYUNDAI MOTOR CO.
Remove the control cable.

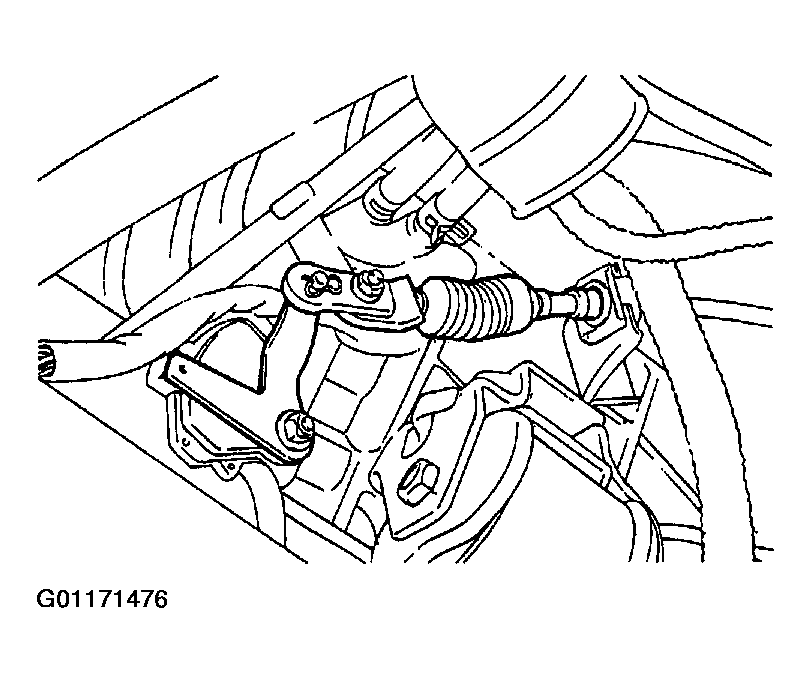

Fig 3: Removing Control Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the speedometer cable.
Separate the pulse generator connector, transaxle range switch connector, kickdown servo switch connector, solenoid valve connector and the oil temperature sensor connector.

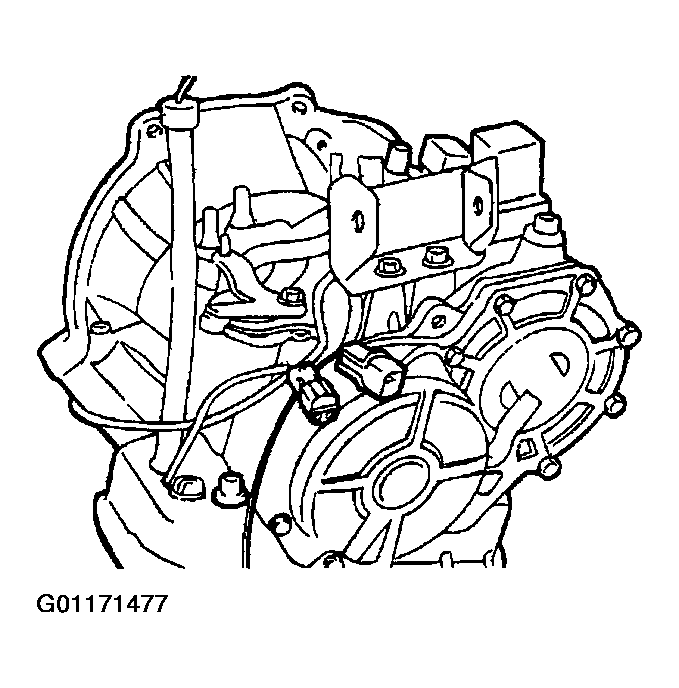

Fig 4: Disconnecting Transaxle Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle-to-engine bolt from the upper portion of the transaxle.

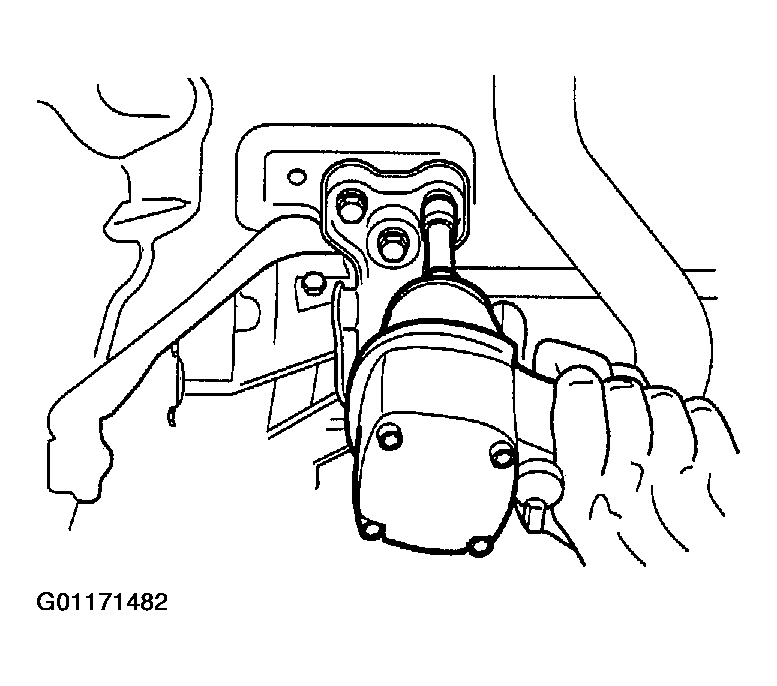

Fig 5: Removing Transaxle-To-Engine Bolt
Courtesy of HYUNDAI MOTOR CO.
Attach engine support fixture (09400-29000) to the engine.

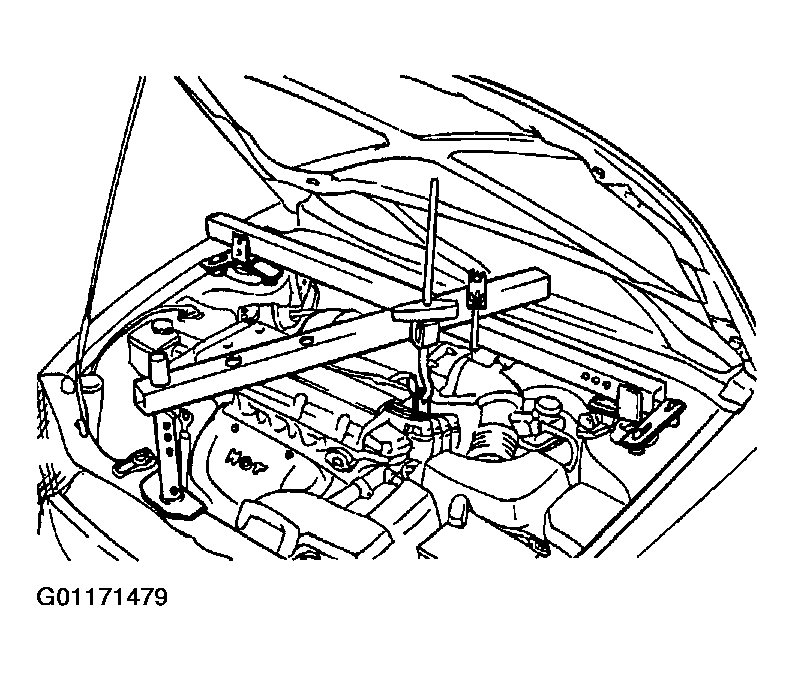

Fig 6: Attaching Engine Support Fixture To Engine
Courtesy of HYUNDAI MOTOR CO.
Remove the gear box, stabilizer bar, tie rod end, lower arm ball joint and drive shaft.
Remove the gear box u-joint bolt and the return tube mounting bolts.
Remove the starter motor.
Remove the transaxle mounting bracket.

Fig 7: Removing Transaxle Mounting Bracket
Courtesy of HYUNDAI MOTOR CO.
Remove the front roll stopper.

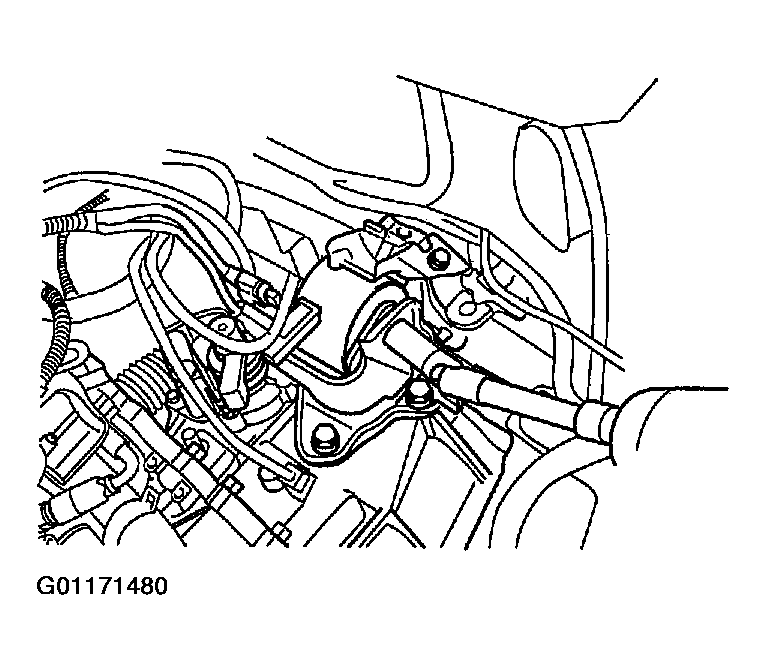

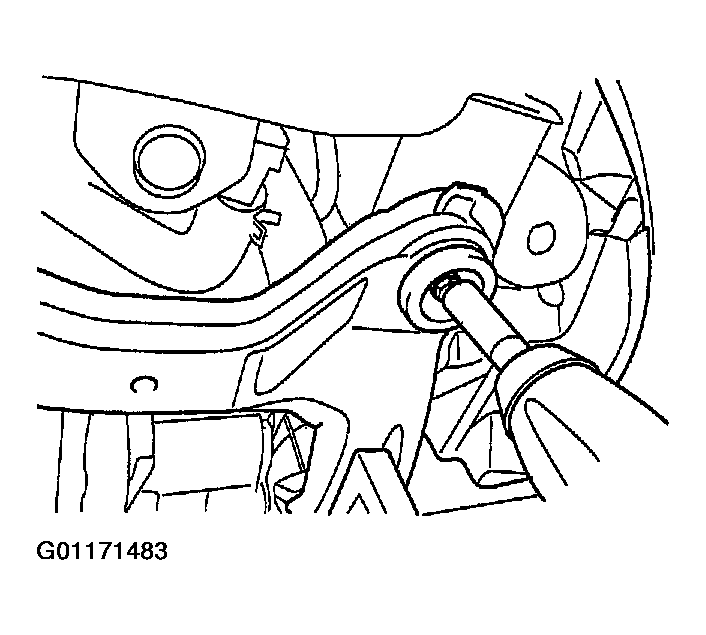

Fig 8: Removing Front Roll Stopper
Courtesy of HYUNDAI MOTOR CO.
Remove the rear roll stopper.

Fig 9: Removing Rear Roll Stopper
Courtesy of HYUNDAI MOTOR CO.
Remove the subframe mounting bolts and the subframe.

Fig 10: Removing Subframe Mounting Bolts & Subframe
Courtesy of HYUNDAI MOTOR CO.
Install the jack under the transaxle assembly.

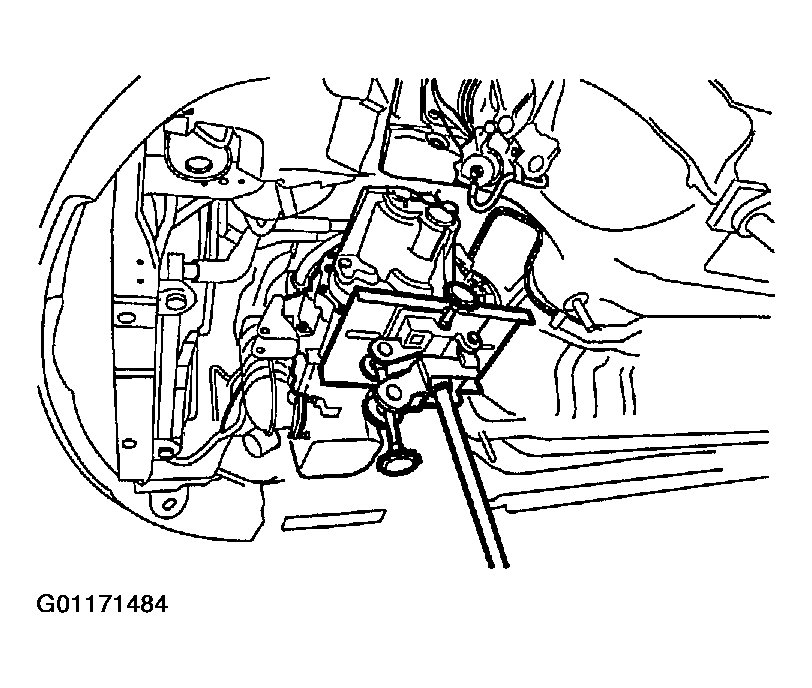

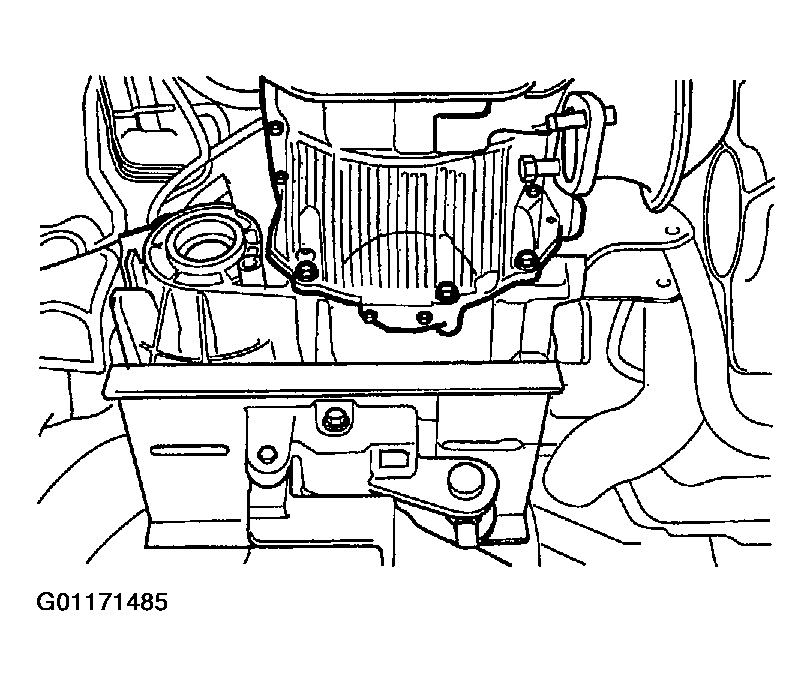

Fig 11: Installing Jack Under Transaxle Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle lower bolts.

Fig 12: Removing Transaxle Lower Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the engine to automatic transaxle bolts.
Remove the automatic transaxle assembly by jack.
CAUTION:
1. Engine and transmission mounting insulators should be installed by the specified them.
2. Mounting bracket installation procedures.
  1. Engine mounting bracket.
  2. T/M mounting bracket.
  3. Rear roll stopper mounting bracket.
  4. Front roll stopper mounting bracket.
3. Especially, when installing front roll stopper mounting bracket, be careful not to crush the insulator. If crushed, idle vibration is high.

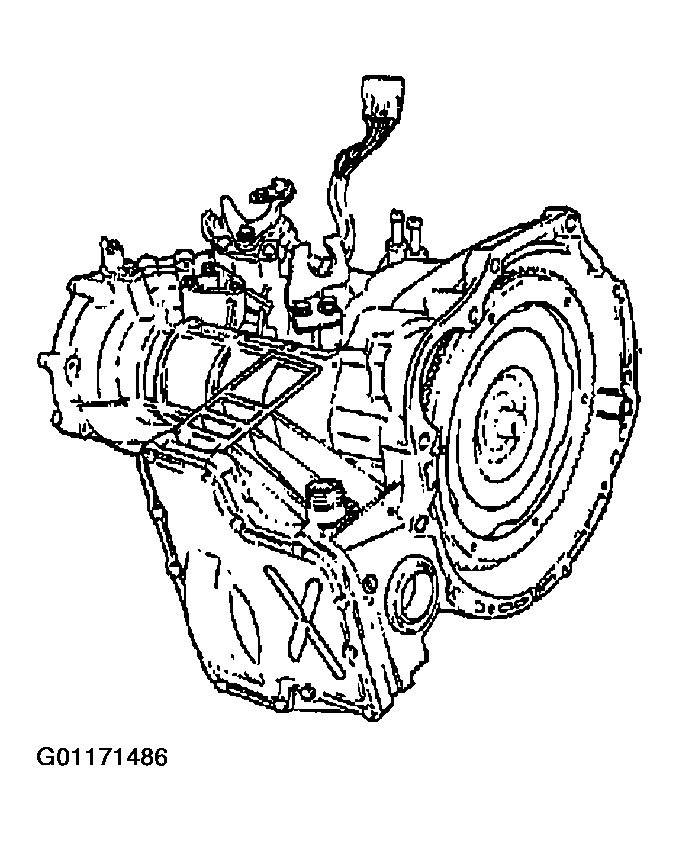

Fig 13: Identifying Automatic Transaxle Assembly
Courtesy of HYUNDAI MOTOR CO.
