Automatic Transaxle Hydraulic Circuit: Second

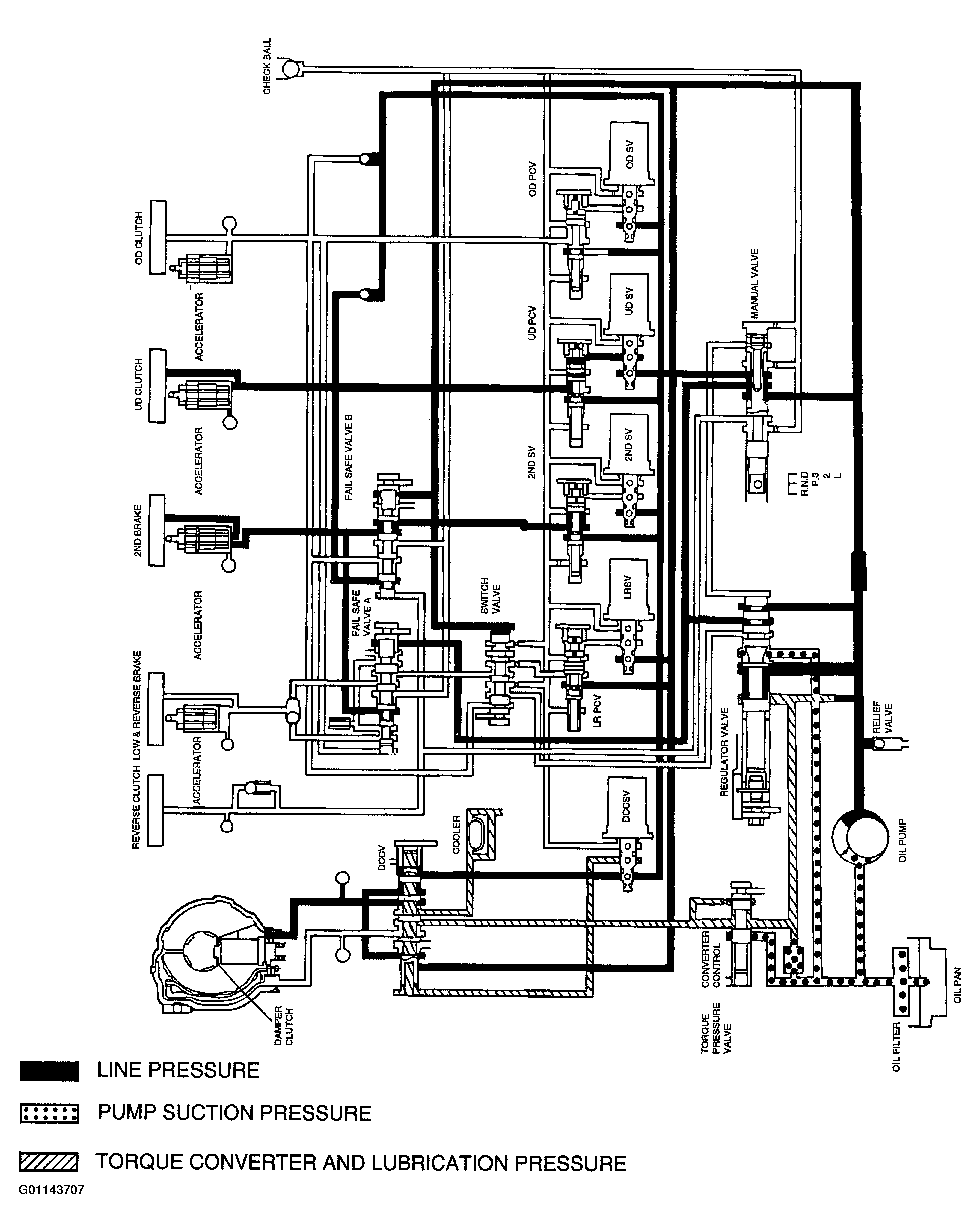

Fig 1: Identifying Hydraulic Circuit In Second Gear
G01143707Courtesy of HYUNDAI MOTOR CO.
