Transmission Position Sensor/Switch: Locations

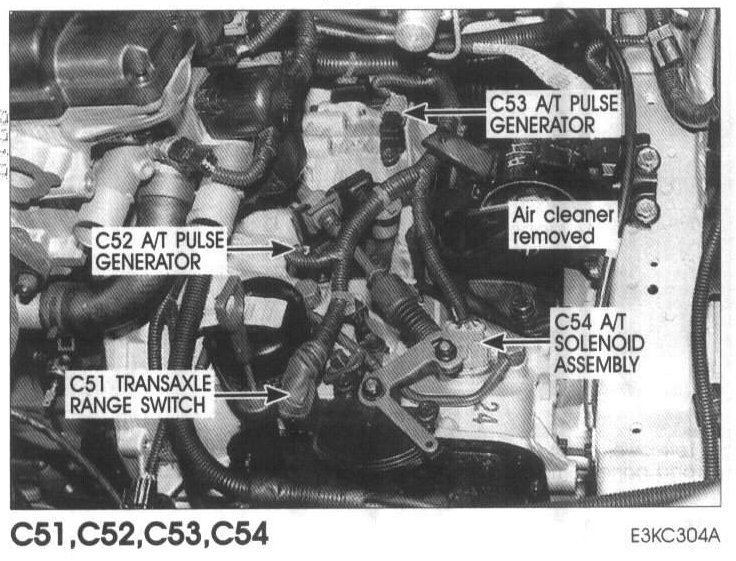

C51 Transaxle Range Switch, C52 "A", C53 "B" A/T Pulse Generator, C54 A/T Solenoid Assembly:
