Electronic Time & Alarm Control System (ETACS): Washer
Time Specification:
T1: 0.7 sec.
T2: 2.5-3.8 sec.
This function should be operated preferentially even thought the variable intermittent wiper is operating.

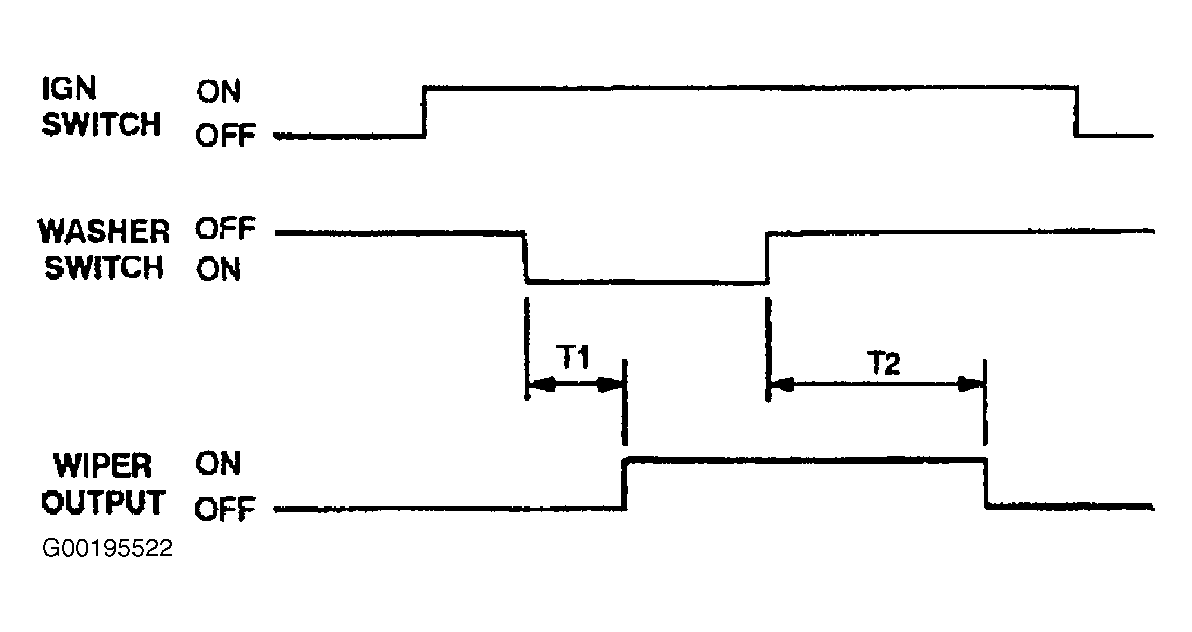

Use illustration for timing wave form pattern. See Fig 1 .
