Automatic Transaxle Hydraulic Circuit: Third

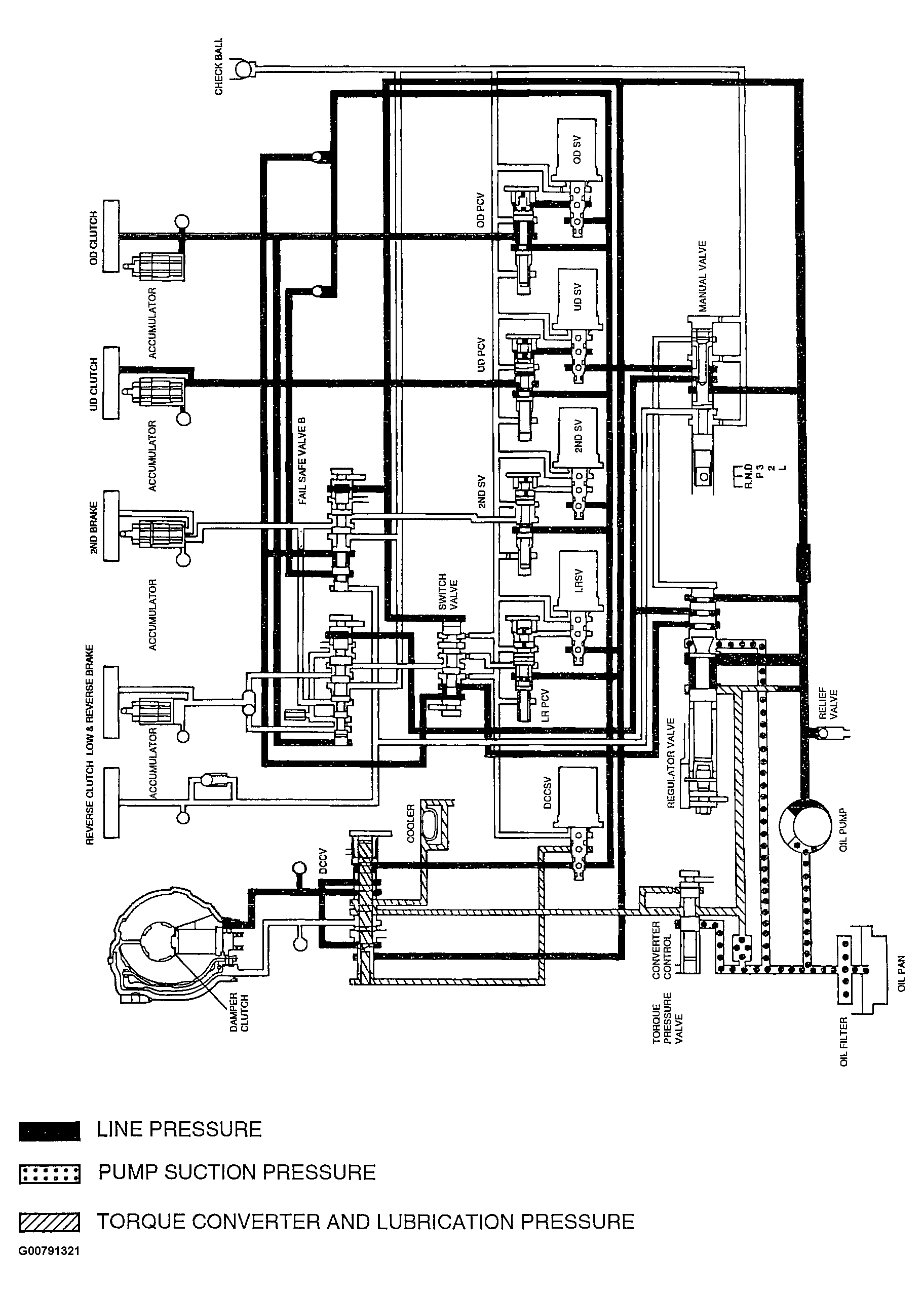

Fig 1: Third Gear Hydraulic Circuit
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
