Operating Elements And Their Function

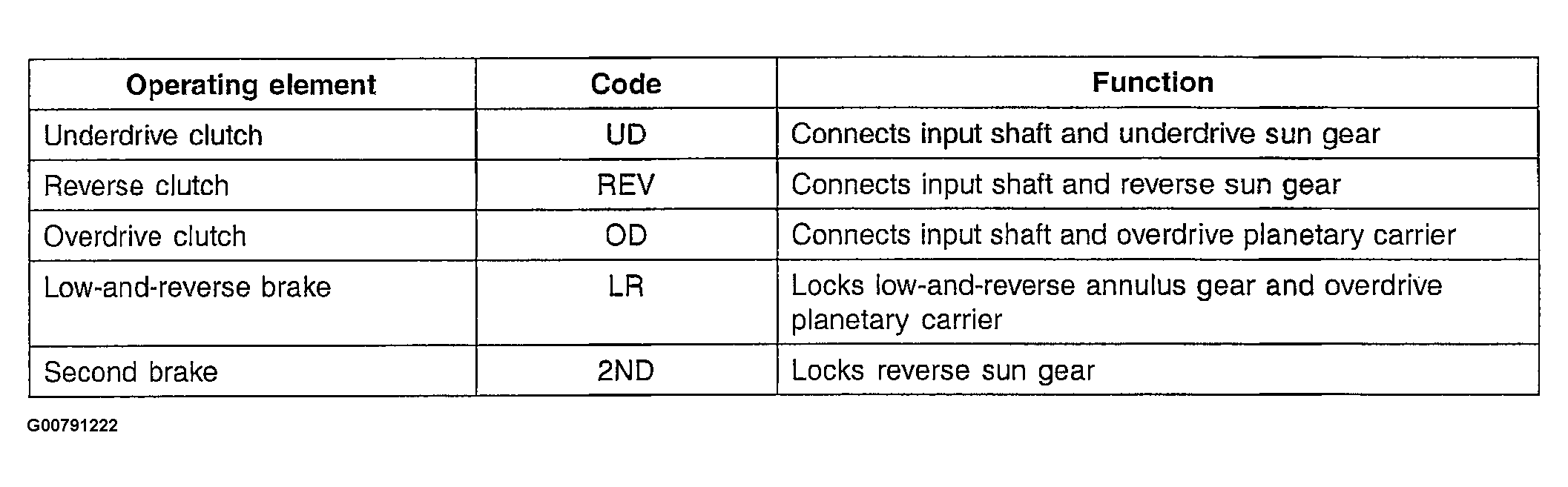

Fig 1: Operating Elements & Their Function Table

G00791222

Courtesy of HYUNDAI MOTOR CO.
