Lighting System

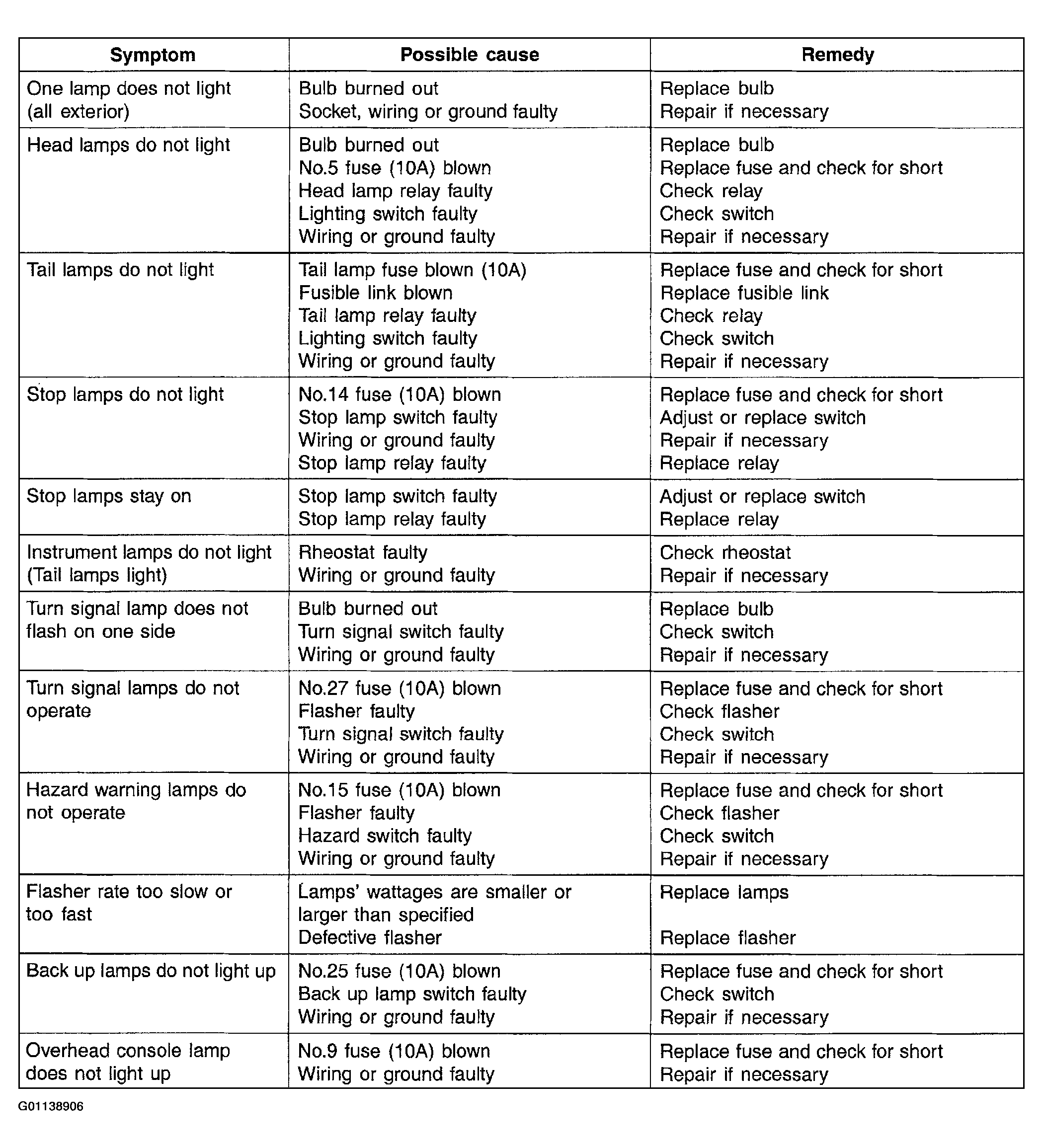

Fig 1: Lighting System Troubleshooting Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
